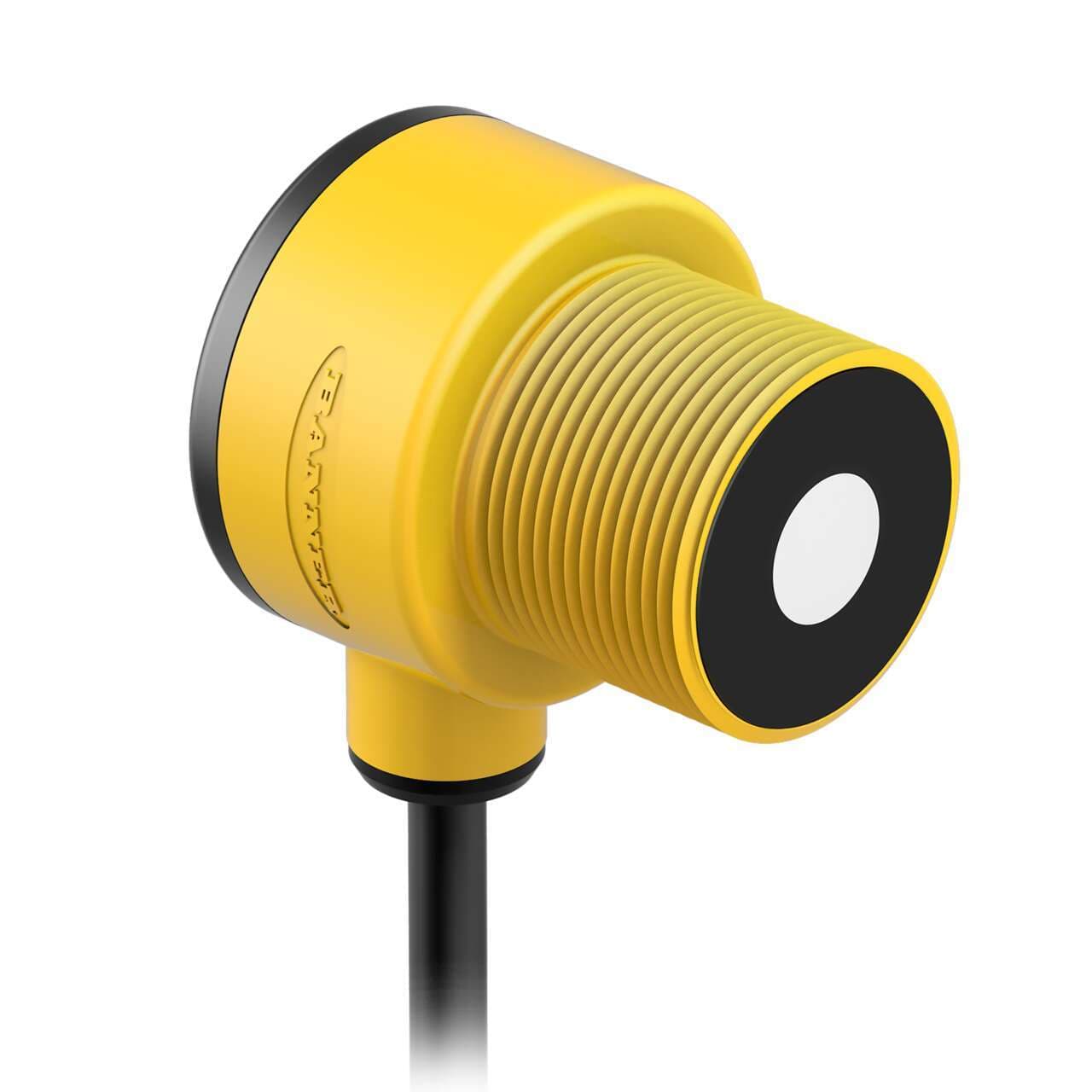

T30UDNA W/30 Banner Ultrasonic Sensors

Product Details

• Weight
  653.17248 g
• Country Of Origin
  CN
• Sensing Mode (Detailed)
  Time of Flight
• Analog Resolution/Discrete Repeatability
  +/- 0.25% of measured distance (0.5 min)
• Discrete (Switched) Outputs
  2 NPN
• Barrel Diameter (mm)
  30
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• PROFINET
  No
• Cable Length (m)
  9
• Input/Output
  Discrete
• Number of Pins
  5
• NEMA Rating
  NEMA 6P
• Power/Current Consumption (exclusive of load)
  90 mA
• Common Ethernet Protocol
  No
• Profibus
  No
• Sensing Mode (General)
  Proximity
• Power Supply
  12-24 V dc
• Max Discrete (Switched) Output (mA)
  100
• Max Op. Relative Humidity Non-Condensing (%)
  100
• Feature: Remote Teach
  Yes
RS-422
No
Sensing Beam
Ultrasonic
Primary Housing Material
PBT
Output Saturation Voltage NPN Outputs
< 1.0 V at 10 mA ; < 1.5 V at 100 mA
Min Operating Temperature (°C)
-20
Feature: Clear Object Detection
Yes
RS-232
No
Housing Style
Barrel
Indicator
LED(s)
Minimum Sensing Distance (mm)
150
Max Operating Temperature (°C)
70
Max Off-state Leakage Current (µA)
10
IO Link
No
Wireless
No
PC Configurable
No
Connection
Flying Leads
Adjustments
Teach Button
Output Protection
Protected against false pulse on power-up and continuous overload or short-circuit of outputs
Minimum Window Size (mm)
10
Ultrasonic Frequency (kHz)
228
Max Measurement Range
>500 mm - <=1000 mm
Quick Disconnect Type
No QD
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
IP Rating
IP67
Remote Teach and Laser Control Input Impedence
55 kΩ
Feature: Chemical Resistant
No
Device Type
Sensor
Max Sensing Distance (mm)
1000
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Minimum Response Time (ms)
48
Feature: Timing (Hold/Delay)
No
SSI
No
Power
DC
Temperature Effect (mm/°C)
0.2% of sensing distance/°C
Warm-up Time (minutes)
15
Discrete Output Hysteresis (mm)
2.5
Application: Ultrasonic
Yes
RS-485
No
1-wire Serial Interface
No
