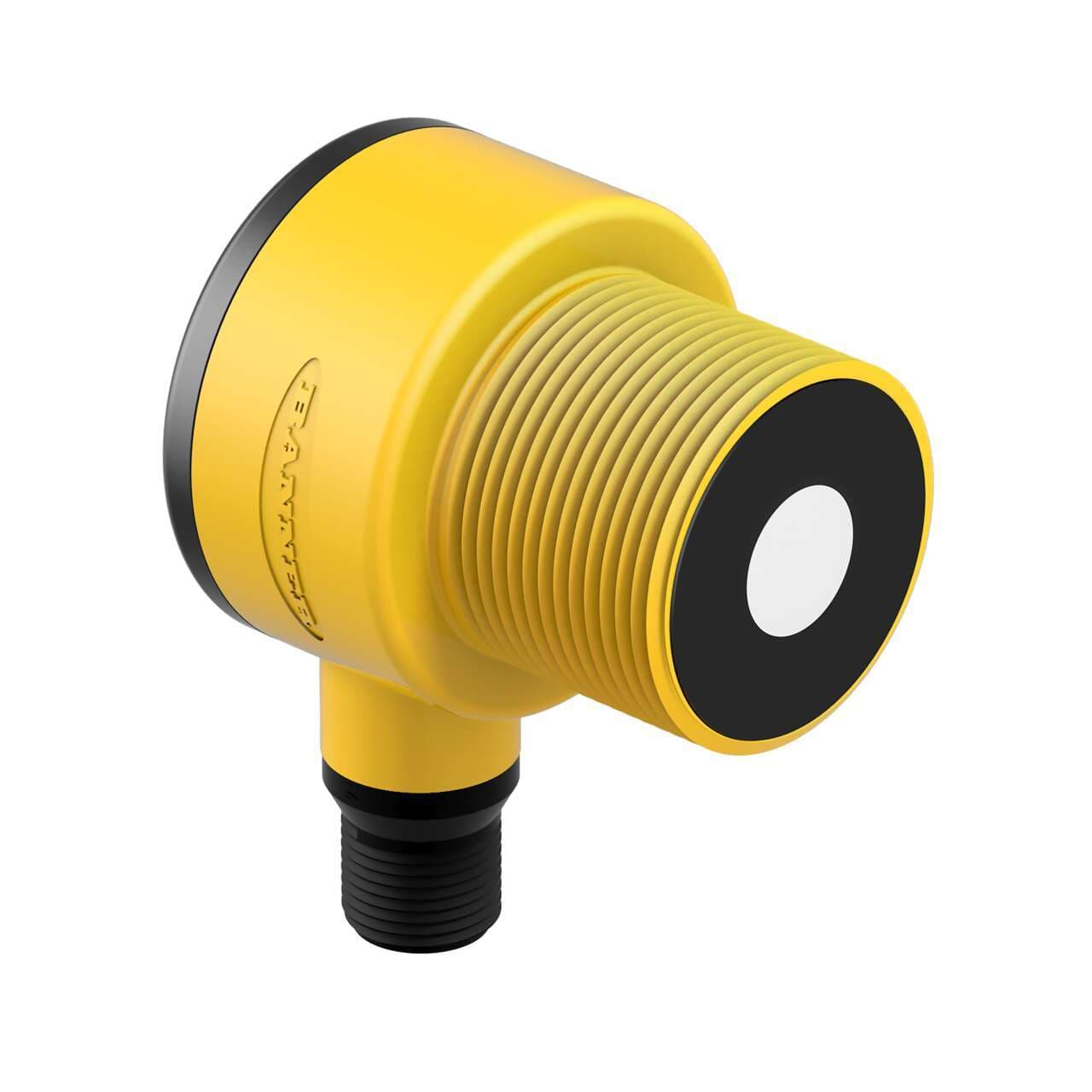

T30UUNAQ Banner Ultrasonic Sensors

Product Details

• Weight
  99.79024 g
• Country Of Origin
  CN
• Profibus
  No
• Wireless
  No
• 1-wire Serial Interface
  No
• SSI
  No
• RS-485
  No
• RS-422
  No
• IO Link
  No
• RS-232
  No
• PROFINET
  No
• Common Ethernet Protocol
  No
• Application: Ultrasonic
  Yes
• Feature: Chemical Resistant
  No
• Feature: Timing (Hold/Delay)
  No
• Feature: Clear Object Detection
  Yes
• Feature: Remote Teach
  Yes
• Power/Current Consumption (exclusive of load)
  90 mA
• Max Off-state Leakage Current (µA)
  10
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
Ultrasonic Frequency (kHz)
228
Discrete Output Hysteresis (mm)
2.5
Remote Teach and Laser Control Input Impedence
55 kΩ
Minimum Window Size (mm)
10
Barrel Diameter (mm)
30
Analog Linearity (mm)
+/- 0.5% of full-scale span
Minimum Response Time (ms)
48
Warm-up Time (minutes)
15
Max Operating Temperature (°C)
70
Max Op. Relative Humidity Non-Condensing (%)
100
Min Operating Temperature (°C)
-20
NEMA Rating
NEMA 6P
IP Rating
IP67
Output Protection
Protected against false pulse on power-up and continuous overload or short-circuit of outputs
Discrete (Switched) Outputs
1 NPN
Max Discrete (Switched) Output (mA)
100
Output Saturation Voltage NPN Outputs
< 1.0 V at 10 mA ; < 1.5 V at 100 mA
Analog Voltage Output Rating
1 kΩ min. load impedance
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Number of Pins
5
Temperature Effect (mm/°C)
0.2% of sensing distance/°C
Adjustments
Teach Button
Power Supply
15-24 V dc
Quick Disconnect Type
M12 (Euro)
Minimum Sensing Distance (mm)
150
Max Sensing Distance (mm)
1000
Analog Resolution/Discrete Repeatability
+/- 0.25% of measured distance (0.5 min)
Analog Output Configuration
0-10 V dc
Indicator
LED(s)
Connection
Integral QD
Input/Output
Analog & Discrete
Housing Style
Barrel
Sensing Beam
Ultrasonic
Primary Housing Material
PBT
Device Type
Sensor
Sensing Mode (Detailed)
Time of Flight
Power
DC
Sensing Mode (General)
Proximity
Max Measurement Range
>500 mm - <=1000 mm
PC Configurable
No
Main function
Sensor (Distance)
Design
time-of-flight system
Analog outputs
1 x analog output (0-10Vdc)
Compliant with standard(s)
CE
Product series / family name
U-GAGE series
Sensing distance
0.15cm...1m
Digital outputs
1 x digital output (NPN transistor)
Emission frequency
228kHz
Primary brand
Banner Engineering
Supply voltage (DC)
15Vdc-24Vdc
Thread size
M30
Protection functions
Overload Short-circuit
Sub-range name
T30U analog and discrete output series
Functions
Short-range ultrasonic distance sensor/transmitter green LED (power ON) yellow LED (discrete output / mode) red LED (signal) TEACH mode
Connection type
Pre-equipped with 5-pin Euro-style M12 connector
Degree of protection
IP67 NEMA 6P
Order code / Manufacturer SKU
55990
Shape
Cylindrical smooth
Mounting mode
Threaded mount
Material
thermoplastic housing
Ambient air temperature for operation
-20...+70 °C
