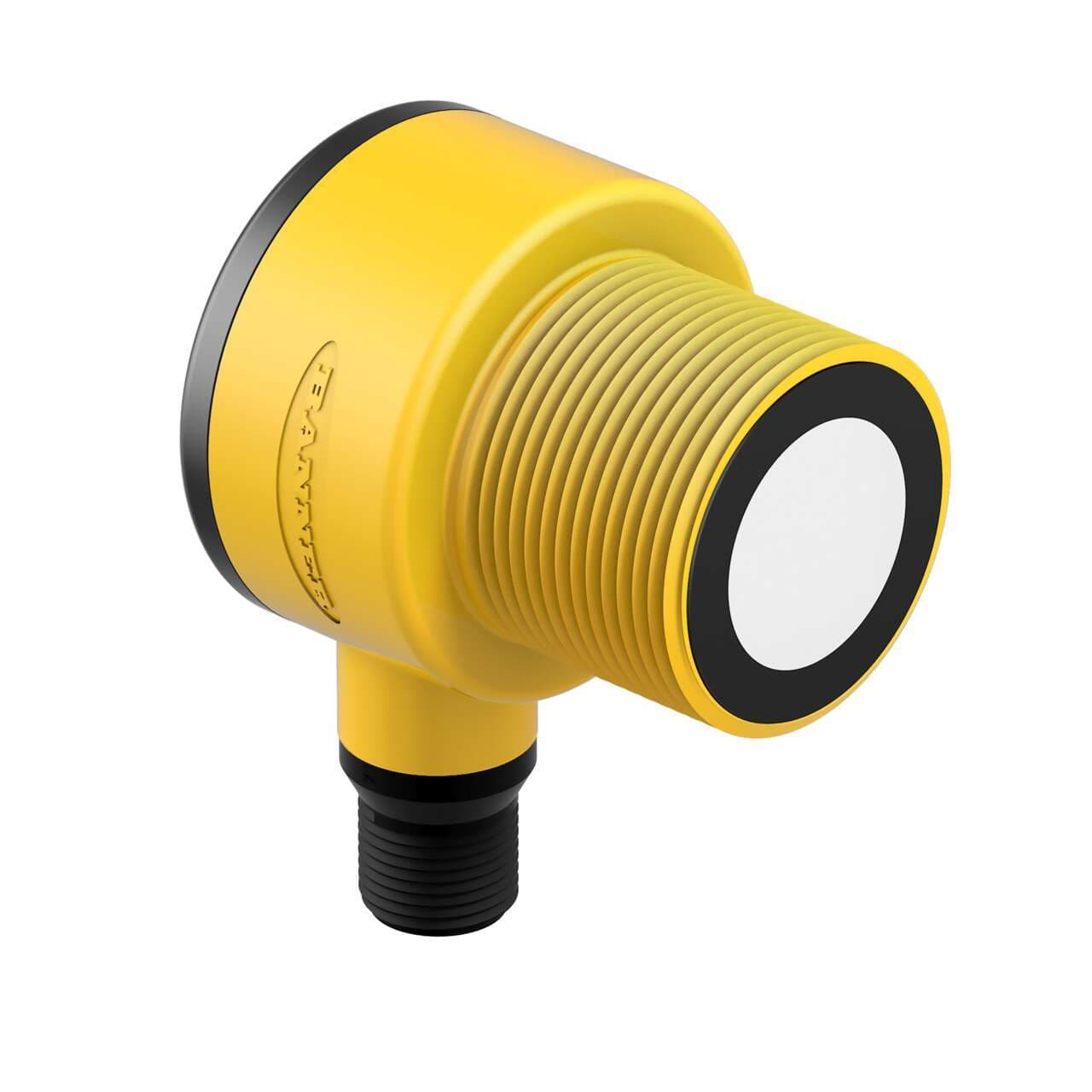

T30UUNBQ Banner Ultrasonic Sensors

T30UUNBQ on Powermatic Associates
Banner

Part#:T30UUNBQ

Alt. Part#:55996

Manufacturer:Banner

Category:Ultrasonic Sensors

Product Lifecycle:Active

Product description

Analog/Discrete T30U Series: Proximity Mode; Range: 300 mm - 2 m; Input: 15-24 V dc; Outputs: Discrete: NPN; Analog: 0-10 V dc; M12 Integral QD

Product Details

  • Weight
    108.86208 g
  • Country Of Origin
    CN
  • Input/Output
    Analog & Discrete
  • Sensing Beam
    Ultrasonic
  • Adjustments
    Teach Button
  • NEMA Rating
    NEMA 6P
  • Discrete Output Hysteresis (mm)
    2.5
  • PROFINET
    No
  • PC Configurable
    No
  • Max Measurement Range
    >1 m - <=20 m
  • Vibration
    MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
  • Max Operating Temperature (°C)
    70
  • Minimum Window Size (mm)
    10
  • Profibus
    No
  • Sensing Mode (General)
    Proximity
  • Analog Resolution/Discrete Repeatability
    +/- 0.25% of measured distance (1.0 min)
  • Output Protection
    Protected against false pulse on power-up and continuous overload or short-circuit of outputs
  • Warm-up Time (minutes)
    15
  • Ultrasonic Frequency (kHz)
    128
  • RS-422
    No
  • Indicator
    LED(s)
  • Analog Output Configuration
    0-10 V dc
  • Temperature Effect (mm/°C)
    0.2% of sensing distance/°C
  • Min Operating Temperature (°C)
    -20
  • Power/Current Consumption (exclusive of load)
    90 mA
  • Feature: Chemical Resistant
    No
  • Sensing Mode (Detailed)
    Time of Flight
  • Quick Disconnect Type
    M12 (Euro)
  • Mechanical Shock
    IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
  • Max Discrete (Switched) Output (mA)
    100
  • Analog Linearity (mm)
    +/- 0.5% of full-scale span
  • Feature: Clear Object Detection
    Yes
  • SSI
    No
  • Primary Housing Material
    PBT
  • Power Supply
    15-24 V dc
  • Discrete (Switched) Outputs
    1 NPN
  • Barrel Diameter (mm)
    30
  • Max Off-state Leakage Current (µA)
    10
  • Wireless
    No
  • Housing Style
    Barrel
  • Minimum Sensing Distance (mm)
    300
  • Analog Voltage Output Rating
    1 kΩ min. load impedance
  • Max Op. Relative Humidity Non-Condensing (%)
    100
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • Application: Ultrasonic
    Yes
  • Power
    DC
  • Connection
    Integral QD
  • Number of Pins
    5
  • IP Rating
    IP67
  • Remote Teach and Laser Control Input Impedence
    55 kΩ
  • IO Link
    No
  • Device Type
    Sensor
  • Max Sensing Distance (mm)
    2000
  • Output Saturation Voltage NPN Outputs
    < 1.0 V at 10 mA ; < 1.5 V at 100 mA
  • Minimum Response Time (ms)
    96
  • Feature: Remote Teach
    Yes
  • 1-wire Serial Interface
    No
  • Feature: Timing (Hold/Delay)
    No
  • RS-232
    No
  • RS-485
    No
  • Common Ethernet Protocol
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T30UUNBQ on Powermatic Associates is $512.00. Order now.


About the product

Banner Engineering T30UUNBQ is an ultrasonic sensor belonging to the T30U analog and discrete output series, designed with a time-of-flight system and TEACH mode for setup. This long-range ultrasonic distance sensor/transmitter features a thermoplastic housing and is pre-equipped with a 5-pin Euro-style M12 connector for connectivity. It operates on a supply voltage of 15Vdc-24Vdc and can be mounted using a threaded mount. The sensor is designed to work within an ambient air temperature range of -20 to +70°C and offers a degree of protection rated at IP67 NEMA 6P, making it suitable for various environmental conditions. Its shape is an M30 cylindrical threaded/barrel, and it includes 1 x digital output (NPN transistor) and 1 x analog output (0-10Vdc) for interfacing with external systems. The sensing distance of the device ranges from 30cm to 2m, and it operates at a frequency of 128kHz. Additionally, it includes protection functions against overload and short-circuit, ensuring its durability and longevity in demanding applications. The thread size for mounting is M30.
