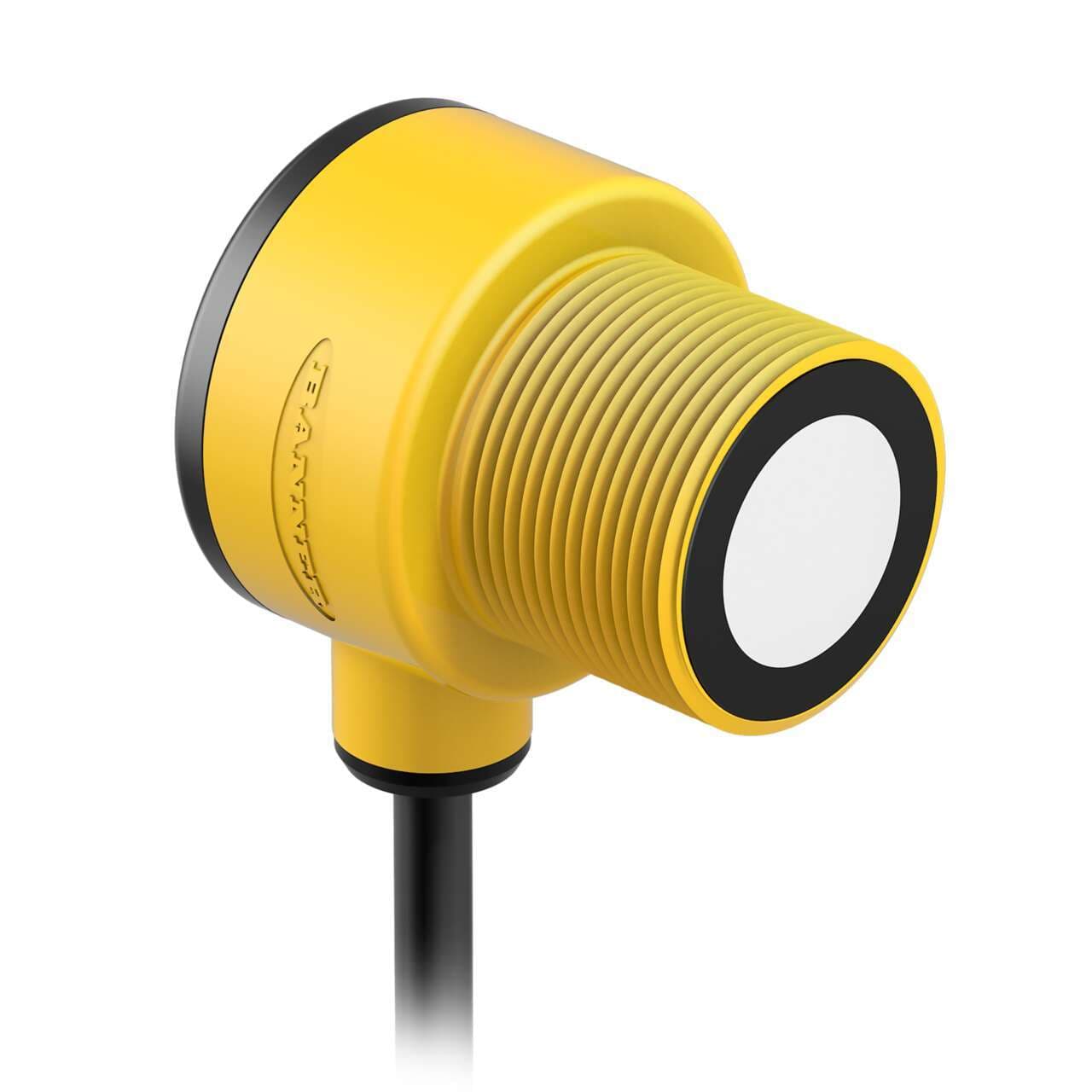

T30UXDBQPMA Banner Ultrasonic Sensors
Part#:T30UXDBQPMA
Alt. Part#:80062
Manufacturer:Banner
Category:Ultrasonic Sensors
Product Lifecycle:Active
Product description
T30UX Series w/ Discrete Output; Range: 200 mm - 2 m; Input: 10-30 V dc; Output: NPN PNP NO NC selectable; 150 mm (6 in) M12 PUR Pigtail QD
Product Details
- Weight 122.923432 g
- Country Of Origin CN
- Sensing Mode (General) Proximity
- Analog Resolution/Discrete Repeatability 0.1% of distance (1.0 min)
- Mechanical Shock IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
- Discrete (Switched) Outputs 1 NPN/PNP Configurable
- PROFINET No
- Housing Style Barrel
- Max Sensing Distance (mm) 2000
- Max Operating Temperature (°C) 70
- Discrete Output Hysteresis (mm) 3
- Common Ethernet Protocol No
- Indicator LED(s)
- PC Configurable No
- Number of Pins 4
- IP Rating IP67
- Minimum Response Time (ms) 92
- Feature: Timing (Hold/Delay) No
- Wireless No
- Sensing Beam Ultrasonic
- Primary Housing Material PBT
- Adjustments Teach Button
- Max Discrete (Switched) Output (mA) 100
- Warm-up Time (minutes) 15
- Feature: Clear Object Detection Yes
- RS-232 No
- Rep Rate (ms) 30
- Feature: Chemical Resistant No
- 1-wire Serial Interface No
- Device Type Sensor
- Quick Disconnect Type M12 (Euro)
- Temperature Effect (mm/°C) 0.02% of sensing distance/°C
- Min Operating Temperature (°C) -40
- Ultrasonic Frequency (kHz) 174
- IO Link No
- Max Measurement Range >1 m - <=20 m
- Input/Output Discrete
- Delay at Power-up (ms) 500
- Output Protection Protected against short circuit conditions
- Barrel Diameter (mm) 30
- Power/Current Consumption (exclusive of load) 40 mA
- RS-422 No
- Power DC
- Minimum Sensing Distance (mm) 200
- Output Saturation Voltage NPN Outputs < 1.6 V at 100 mA
- Max Op. Relative Humidity Non-Condensing (%) 95 at 50°C
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
- SSI No
- Cable Length (m) 0.15
- Power Supply 10-30 V dc
- Output Saturation Voltage PNP Outputs < 3 V at 100 mA
- Minimum Window Size (mm) 10
- Feature: Remote Teach Yes
- RS-485 No
- Sensing Mode (Detailed) Time of Flight
- Connection Pigtail QD
- Vibration MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
- NEMA Rating NEMA 6
- Remote Teach and Laser Control Input Impedence 55 kΩ
- Application: Ultrasonic Yes
- Max Off-state Leakage Current (µA) NPN: < 200 at 30 V dc; PNP: < 10 at 30 V dc
- Profibus No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T30UXDBQPMA on Powermatic Associates is $461.00. Order now.
About the product
Banner Engineering T30UXDBQPMA is an ultrasonic distance sensor from the T30UX series, featuring a time-of-flight system with extended temperature range and TEACH mode for precise distance measurement. It is housed in thermoplastic with a polyurethane (PUR) connector and cable sheath for durability. This sensor is pre-wired with a 6" / 150mm PUR cable that terminates with a 4-pin Euro-style M12 connector, ensuring easy installation. It operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and can be mounted via a threaded mount. Designed for operation in ambient air temperatures ranging from -40 to +70°C, it offers a degree of protection rated at IP67 NEMA 6, making it suitable for harsh environments. The M30 cylindrical threaded/barrel shape facilitates integration into various setups. It features 1 x digital output (PNP/NPN transistor), a sensing distance of 20cm to 2m, and operates at a 174kHz transmission frequency. The sensor includes protection functions against short-circuit and supports both NO (Normally Open) and NC (Normally Closed) operating modes, with a thread size of M30.
