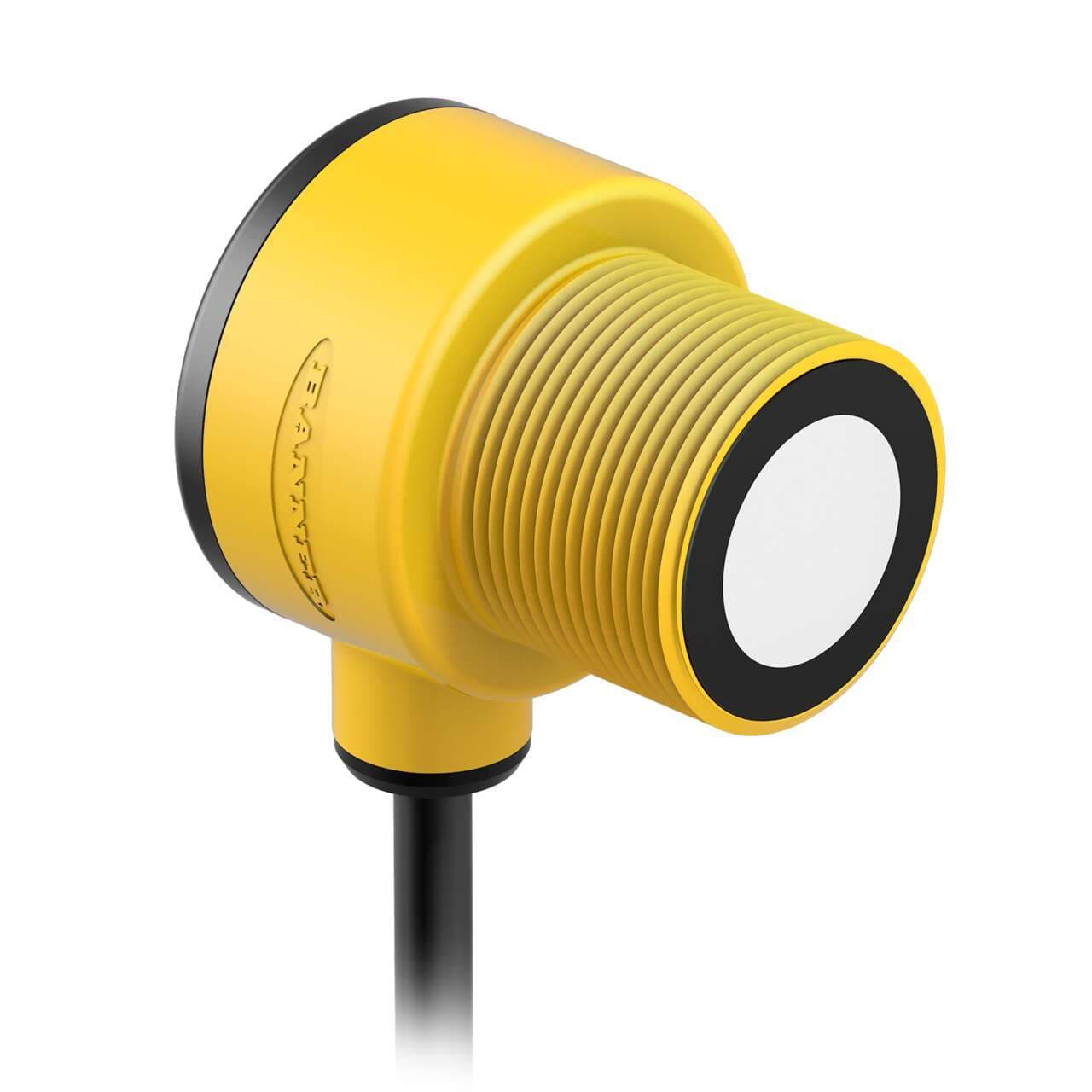

T30UXDCQPMA Banner Ultrasonic Sensors
Part#:T30UXDCQPMA
Alt. Part#:80462
Manufacturer:Banner
Category:Ultrasonic Sensors
Product Lifecycle:Active
Product description
T30UX Series w/ Discrete Output; Range: 300 mm - 3 m; Input: 10-30 V dc; Output: NPN PNP NO NC selectable; 150 mm (6 in) M12 PUR Pigtail QD
Product Details
- Weight 131.54168 g
- Country Of Origin CN
- Max Measurement Range >1 m - <=20 m
- Indicator LED(s)
- Adjustments Teach Button
- Output Protection Protected against short circuit conditions
- Minimum Window Size (mm) 10
- Application: Ultrasonic Yes
- Profibus No
- Sensing Beam Ultrasonic
- Primary Housing Material PBT
- Power Supply 10-30 V dc
- Max Discrete (Switched) Output (mA) 100
- Minimum Response Time (ms) 135
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
- RS-422 No
- Power DC
- Connection Pigtail QD
- Number of Pins 4
- IP Rating IP67
- Ultrasonic Frequency (kHz) 114
- Feature: Clear Object Detection Yes
- SSI No
- Sensing Mode (Detailed) Time of Flight
- Input/Output Discrete
- Vibration MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
- Max Operating Temperature (°C) 70
- Remote Teach and Laser Control Input Impedence 55 kΩ
- Feature: Timing (Hold/Delay) No
- 1-wire Serial Interface No
- Minimum Sensing Distance (mm) 300
- Cable Length (m) 0.15
- Mechanical Shock IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
- Warm-up Time (minutes) 15
- Power/Current Consumption (exclusive of load) 40 mA
- Common Ethernet Protocol No
- Sensing Mode (General) Proximity
- Max Sensing Distance (mm) 3000
- Temperature Effect (mm/°C) 0.02% of sensing distance/°C
- NEMA Rating NEMA 6
- Discrete Output Hysteresis (mm) 4
- PROFINET No
- Housing Style Barrel
- Delay at Power-up (ms) 500
- Discrete (Switched) Outputs 1 NPN/PNP Configurable
- Rep Rate (ms) 45
- Feature: Remote Teach Yes
- RS-232 No
- RS-485 No
- Quick Disconnect Type M12 (Euro)
- Device Type Sensor
- Output Saturation Voltage NPN Outputs < 1.6 V at 100 mA
- Min Operating Temperature (°C) -40
- Barrel Diameter (mm) 30
- Feature: Chemical Resistant No
- Wireless No
- PC Configurable No
- Analog Resolution/Discrete Repeatability 0.1% of distance (1.5 min)
- Output Saturation Voltage PNP Outputs < 3 V at 100 mA
- Max Op. Relative Humidity Non-Condensing (%) 95 at 50°C
- Max Off-state Leakage Current (µA) NPN: < 200 at 30 V dc; PNP: < 10 at 30 V dc
- IO Link No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T30UXDCQPMA on Powermatic Associates is $481.00. Order now.
About the product
Banner Engineering T30UXDCQPMA is an ultrasonic distance sensor from the T30UX series, featuring a time-of-flight system with extended temperature range and compensation TEACH mode. It is constructed with a Polybutylene Terephthalate (P.B.T.) housing, Polyurethane (PUR) connector, and a Polyurethane (PUR) cable sheath. This sensor is pre-wired with a 6" / 150mm PUR cable that terminates with a 4-pin Euro-style M12 connector. It operates on a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc nominal. Designed for threaded mount installation, it can function within an ambient air temperature range of -40 to +70°C. The T30UXDCQPMA offers a degree of protection rated at IP67 NEMA 6 and comes in an M30 cylindrical threaded/barrel shape. It features 1 x digital output (PNP/NPN transistor), a sensing distance of 30cm to 3m, and operates at a transmission frequency of 114kHz. This sensor includes protection functions against short-circuit and supports operating modes of NO (Normally Open) and NC (Normally Closed) with an M30 thread size.
