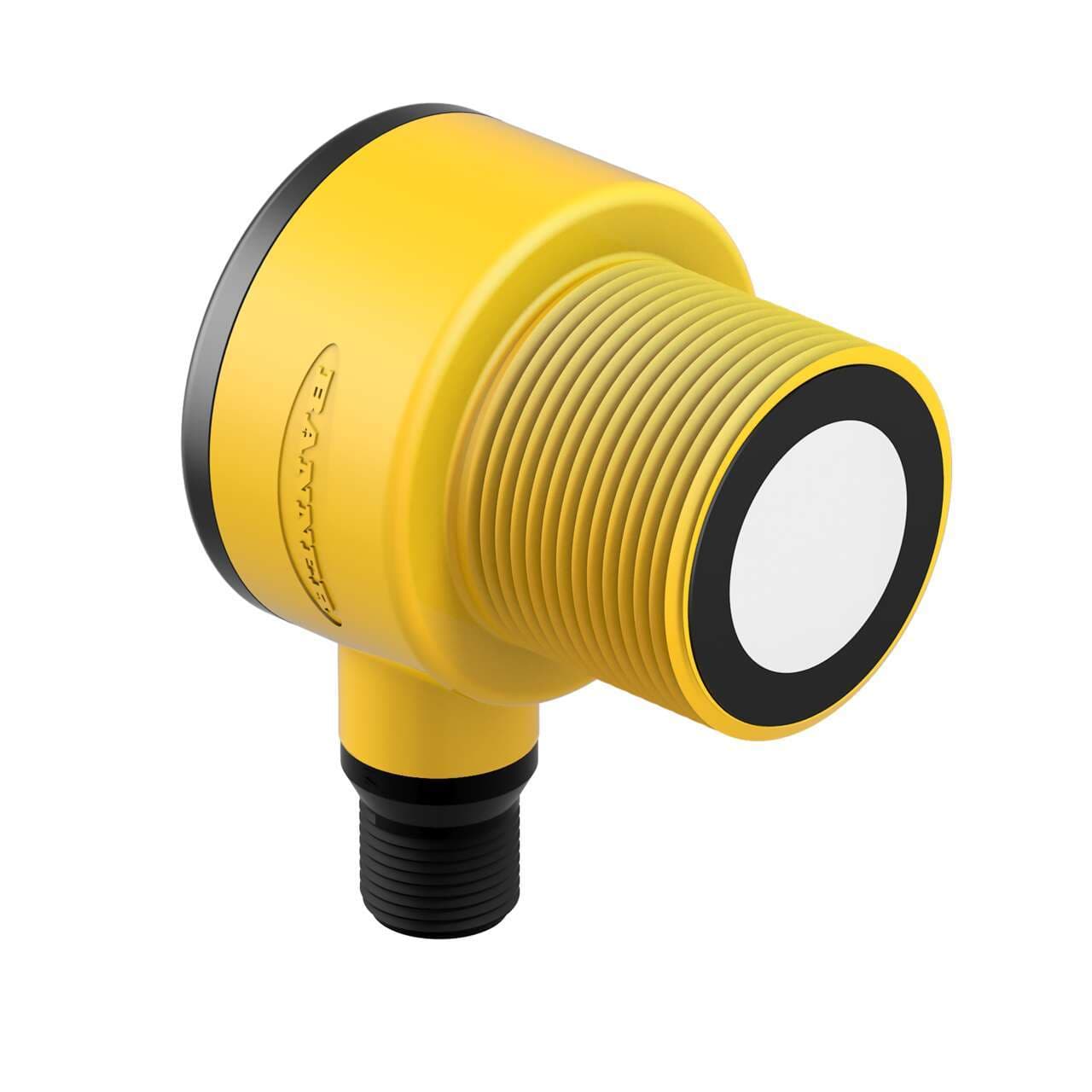

T30UXDPCQ8-85394 Banner Ultrasonic Sensors

Banner Engineering T30UXDPCQ8-85394 is an ultrasonic sensor from the T30UX series, designed with a time-of-flight system for extended temperature ranges, featuring temperature compensation, fixed field, and TEACH modes. It includes synchronized timing via a gray wire and offers 2 independent NC PNP digital outputs. The sensor is housed in polybutylene terephthalate (P.B.T.) and comes pre-equipped with a 4-pin Euro-style M12 connector. It operates on a supply voltage of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. This model supports threaded mount installation and can operate in ambient air temperatures ranging from -40 to +70 degrees Celsius. It boasts an IP67 and NEMA 6 degree of protection, making it suitable for harsh environments. The sensor has an M30 cylindrical threaded/barrel shape, a single digital output (PNP transistor), and offers a sensing distance of 30cm to 3m. It operates at a transmission frequency of 114kHz and includes protection against short-circuits. The operating modes available are NO (Normally Open) and NC (Normally Closed), with a thread size of M30.
