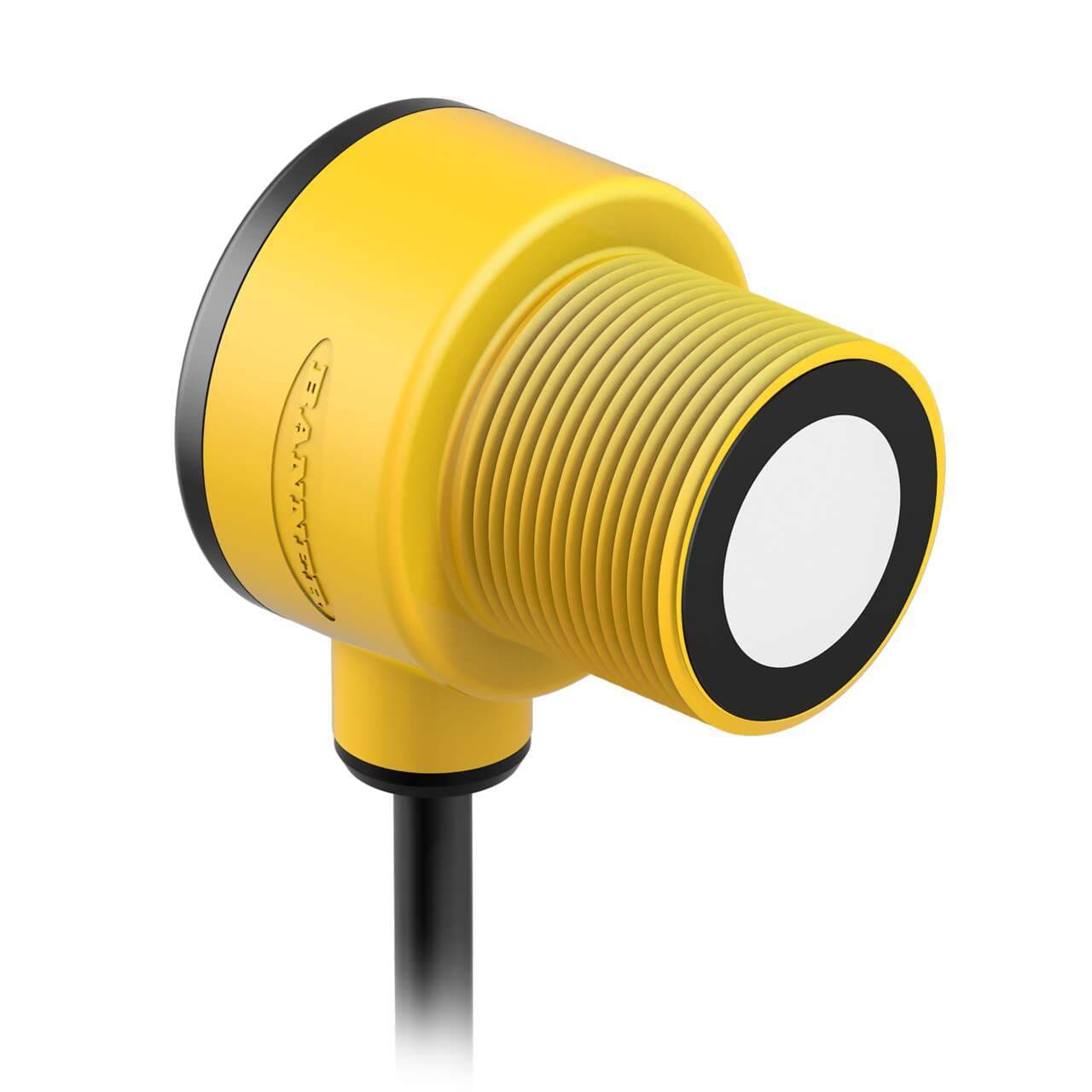

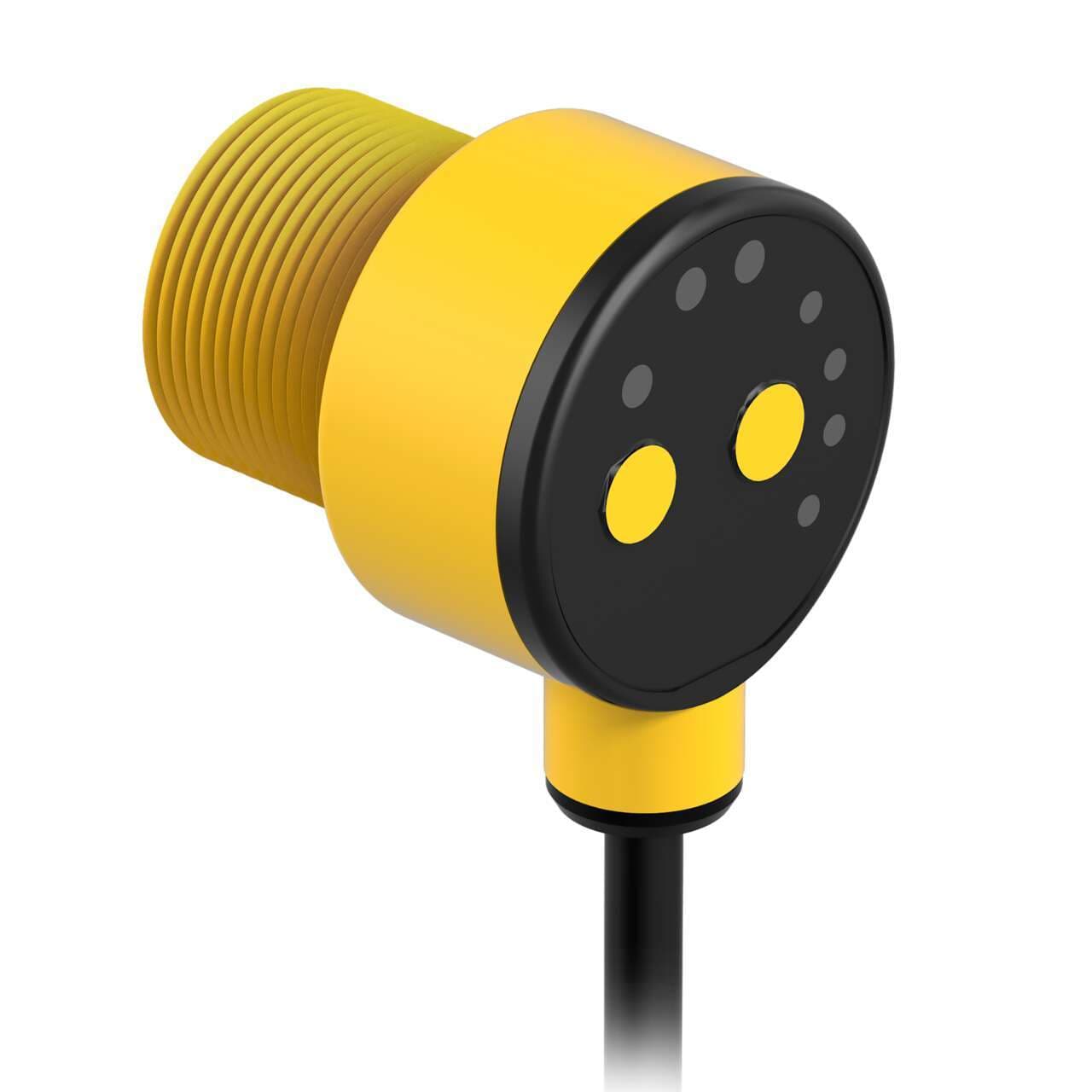

T30UXIA-806637 Banner Ultrasonic Sensors

Banner Engineering T30UXIA-806637 is an ultrasonic sensor belonging to the T30UX series, designed with a time-of-flight system for extended temperature ranges, including compensation and featuring 4 units with peripheral TEACH mode. This sensor functions as an ultrasonic distance sensor/transmitter, encased in a Polybutylene Terephthalate (P.B.T.) housing. It comes pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads for connectivity. The sensor operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc and 24Vdc, and can be mounted via a threaded mount. It is designed to operate within an ambient air temperature range of -40 to +70°C and is rated with a degree of protection of IP67 NEMA 6, making it suitable for challenging environments. The sensor's shape is an M30 cylindrical threaded/barrel, capable of sensing distances from 10cm to 1m, and operates at a transmission frequency of 224kHz. It includes protection functions against short-circuit and offers 1 x analog output (4-20mA) for connectivity. The thread size for mounting is M30.
