T30UXIA-806640 Banner Ultrasonic Sensors

T30UXIA-806640 on Powermatic Associates
Banner
  • T30UXIA-806640
  • T30UXIA-806640

Part#:T30UXIA-806640

Alt. Part#:806640

Manufacturer:Banner

Category:Ultrasonic Sensors

Product Lifecycle:Active

Product description

T30UX Series w/ Analog Output; Slave 1 Unit; Range: 100 mm - 1 m; Input: 10-30 V dc; Analog Output: 4-20 mA; 2 m (6.5 ft) Cable

Product Details

  • Weight
    232.012308 g
  • Country Of Origin
    CN

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T30UXIA-806640 on Powermatic Associates is $688.00. Order now.

About the product

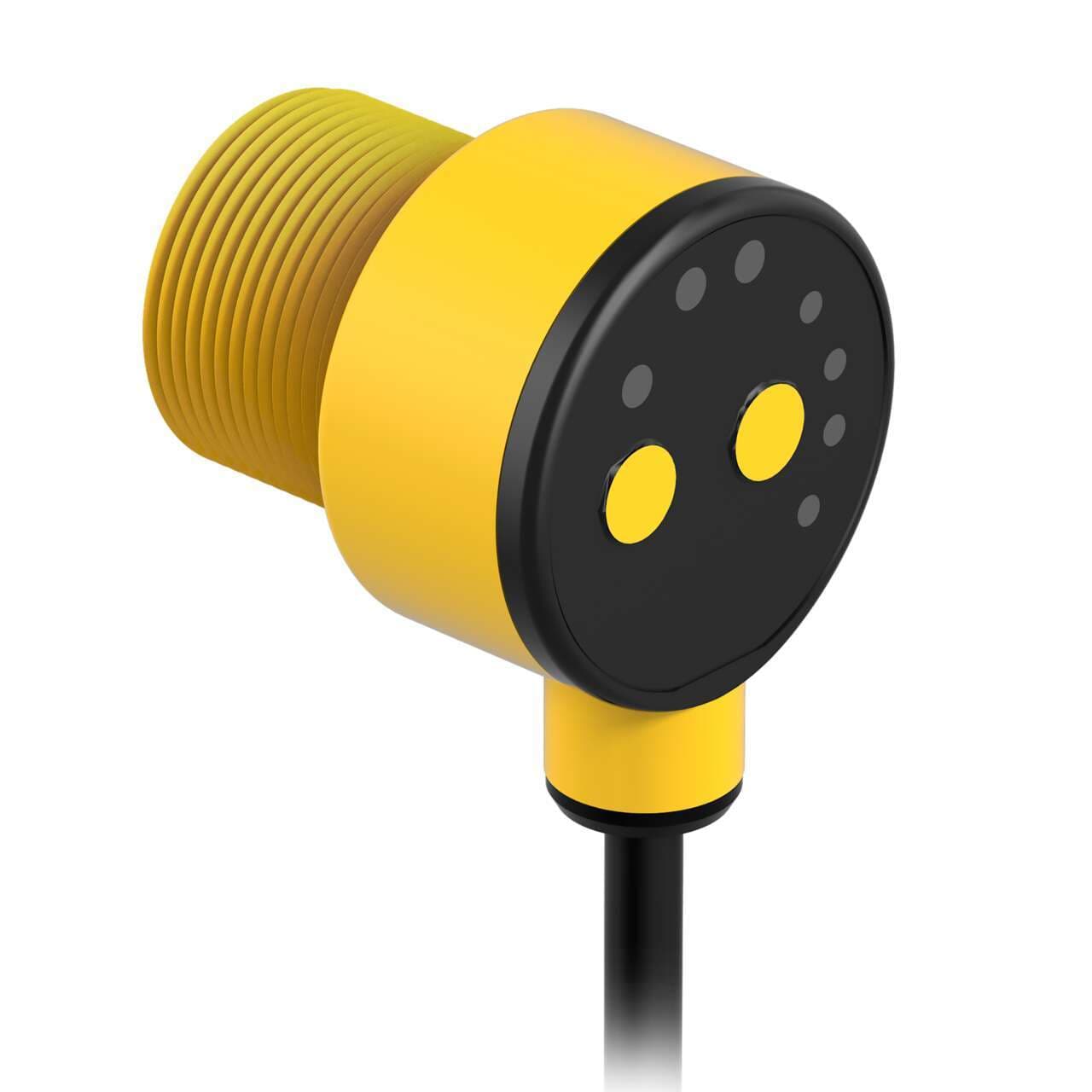

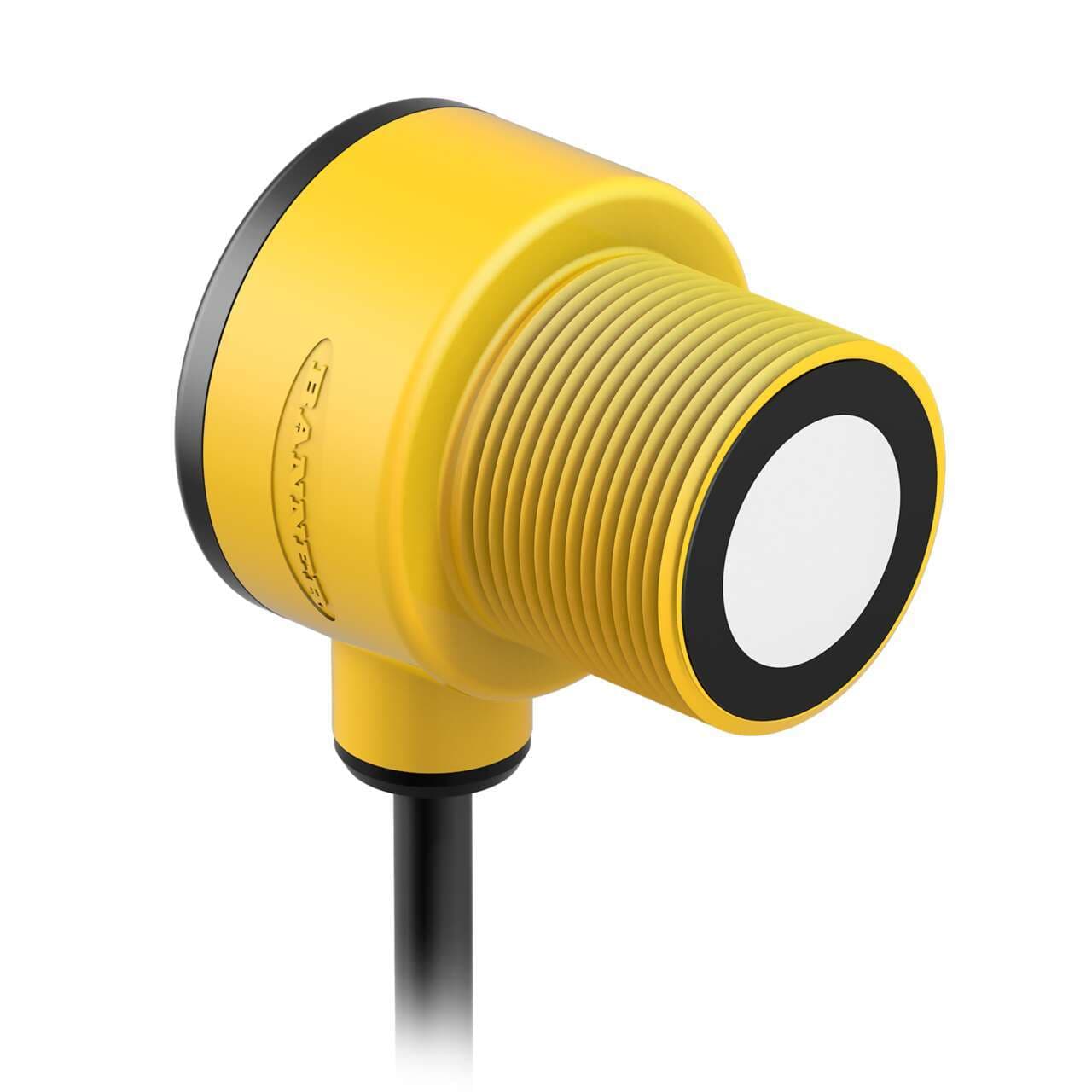

Banner Engineering T30UXIA-806640 is an ultrasonic sensor belonging to the T30UX series, designed with a time-of-flight system for extended temperature ranges, including compensation, and features a single unit peripheral TEACH mode. This sensor is housed in Polybutylene Terephthalate (P.B.T.) and comes pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads. It operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc and 24Vdc, and is mounted via a threaded mount. The T30UXIA-806640 can operate in ambient air temperatures ranging from -40 to +70 degrees Celsius and is rated with a degree of protection of IP67 NEMA 6. Its shape is an M30 cylindrical threaded/barrel, capable of sensing distances from 10cm to 1m, and operates at a transmission frequency of 224kHz. It includes protection functions against short-circuit and offers 1 x analog output (4-20mA) for connectivity. The thread size for mounting is M30.

T30UXIA-806640 Related Documents

141958.pdf

Similar products from: Banner Ultrasonic Sensors

T30UXDA on Powermatic Associates

T30UXDA

Banner

T30UX Series w/ Discrete Output; Range: 100 mm - 1 m; Input: 10-30 V dc; Output: NPN PNP NO NC selectable; 2 m (6.5 ft) Cable

1 in stock

Manufacturer warranty

T30UXIA-806640 Banner

$688.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$688.00

$688.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare T30UXIA-806640 with other Ultrasonic Sensors products

Weight

Country Of Origin

Selected product

T30UXIA-806640
Backordered
T30UXIA-806640
Banner

T30UX Series w/ Analog Output; Slave 1 Unit; Range: 100 mm - 1 m; Input: 10-30 V dc; Analog Output: ...

Weight232.012308 g

Country Of OriginCN

T30UXDA
1 in stock
T30UXDA
Banner

T30UX Series w/ Discrete Output; Range: 100 mm - 1 m; Input: 10-30 V dc; Output: NPN PNP NO NC selec...

Weight221.352896 g

Country Of OriginCN

About the manufacturer

Banner

Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...

Recently viewed products

LGF36600U31XAAUOYH1 on Powermatic Associates

LGF36600U31XAAUOYH1

Schneider Electric

Square D by Schneider Electric LGF36600U31XAAUOYH1 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT LGF sub-range. It features a factory-installed 24Vdc undervoltage (U/V) trip release coil and a factory-installed 1A/1B (1NO+1NC) auxiliary switch OF wire harness. Designed for PowerPacT L-Frame 600 Micrologic 3.3 (LI), this 3-pole (3P) circuit breaker is rated for 600A and 600Vac, with a busbar rating of 80% and an 18kA busbar. It offers long-time (L) and instantaneous (I) protection functions, with a rated insulation voltage (Ui) of 750 V and a rated voltage (AC) of 600Vac 600Y/347Vac. The unit is designed for individual unit mount on plate, with a net height of 382 mm, width of 153 mm, and depth of 171 mm. It has an IP40 degree of protection and operates manually via a toggle. Protection settings include L - Protection against overload adjustable from 0.3 to 1 x In (50A to 150A) and I - Instantaneous protection against short-circuit adjustable from 1.5 to 11 x In (900A to 6600A). The control voltage (AC) specification indicates that the circuit breaker opens instantaneously when the undervoltage trip supply voltage drops between 35% and 70% of its rated control voltage, allowing closing when the supply voltage reaches 85% of rated control voltage. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 600 AT, with a frame current rating of 600 AF. It has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac, 35kA at 480Y/277Vac, 18kA at 600Vac, 18kA at 600Y/347Vac, and 20kA at 500Vdc, all according to UL489 standards. The trip unit type is an electronic Micrologic Standard 3.3 (LI) with LI protection and no display, categorized under utilisation category A.

5 in stock

Relevant products

FAQ

What is the price of T30UXIA-806640?
Purchase the T30UXIA-806640 from Powermatic Associates at the price of $688.00. Order today.

Out if stock but available for backorder.

T30UX Series w/ Analog Output; Slave 1 Unit; Range: 100 mm - 1 m; Input: 10-30 V dc; Analog Output: 4-20 mA; 2 m (6.5 ft) Cable
