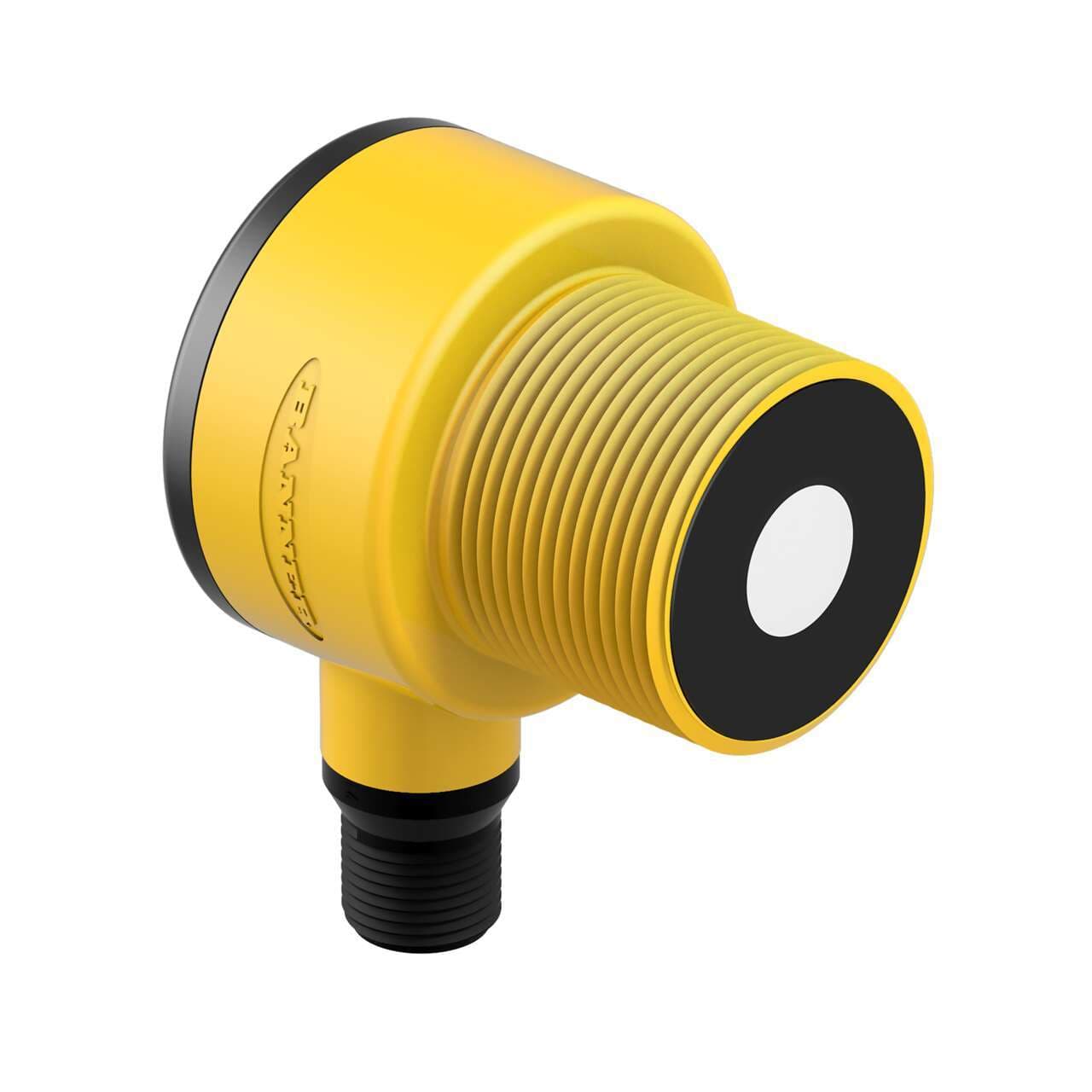

T30UXIAQ8 Banner Ultrasonic Sensors

Product Details

• Weight
  136.0776 g
• Country Of Origin
  CN
• Mounting mode
  Threaded mount
• Primary brand
  Banner Engineering
• Thread size
  M30
• Ambient air temperature for operation
  -40...+70 °C
• Emission frequency
  224kHz
• Connection type
  Pre-equipped with 4-pin Euro-style M12 connector
• Main function
  Sensor (Distance)
• Product series / family name
  U-GAGE series
• Functions
  Ultrasonic distance sensor/transmitter green LED (power ON) yellow LED (discrete output / mode) red LED (signal) TEACH mode
• Sensing distance
  10cm...1m
• Analog outputs
  1 x analog output (4-20mA)
• Order code / Manufacturer SKU
  80481
• Sub-range name
  T30UX series
• Shape
  Cylindrical smooth
• Degree of protection
  IP67 NEMA 6
• Material
  thermoplastic housing
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Protection functions
  Short-circuit
Design
time-of-flight system extended temp. range (w/ compensation)
Compliant with standard(s)
CE cULus Listed
Sensing Mode (General)
Proximity
Device Type
Sensor
Sensing Beam
Ultrasonic
Power
DC
Max Measurement Range
>500 mm - <=1000 mm
Quick Disconnect Type
M12 (Euro)
Temperature Effect (mm/°C)
0.02% of sensing distance/°C
Max Operating Temperature (°C)
70
Remote Teach and Laser Control Input Impedence
55 kΩ
Feature: Timing (Hold/Delay)
No
SSI
No
Sensing Mode (Detailed)
Time of Flight
Analog Resolution/Discrete Repeatability
0.1% of distance (0.5 min)
Delay at Power-up (ms)
500
Min Operating Temperature (°C)
-40
Max Off-state Leakage Current (µA)
NPN: < 200 at 30 V dc; PNP: < 10 at 30 V dc
Application: Ultrasonic
Yes
Profibus
No
PC Configurable
No
Max Sensing Distance (mm)
1000
Output Saturation Voltage PNP Outputs
< 3 V at 100 mA
Max Op. Relative Humidity Non-Condensing (%)
95 at 50°C
Power/Current Consumption (exclusive of load)
40 mA
PROFINET
No
Housing Style
Barrel
Minimum Sensing Distance (mm)
100
Analog Current Output Rating
1 kΩ max @24 V dc, max load resistance = [(Vcc-4.5 V)/0.02 A] Ω
Minimum Response Time (ms)
45
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
RS-422
No
Primary Housing Material
PBT
Adjustments
Teach Button
Max Discrete (Switched) Output (mA)
100
Barrel Diameter (mm)
30
Common Ethernet Protocol
No
1-wire Serial Interface
No
Input/Output
Analog
Analog Output Configuration
4-20 mA
Power Supply
10-30 V dc
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Output Saturation Voltage NPN Outputs
< 1.6 V at 100 mA
Output Protection
Protected against short circuit conditions
Rep Rate (ms)
15
Ultrasonic Frequency (kHz)
224
Feature: Remote Teach
Yes
RS-232
No
IO Link
No
Indicator
LED(s)
Number of Pins
4
NEMA Rating
NEMA 6
Minimum Window Size (mm)
10
Feature: Chemical Resistant
No
Wireless
No
Connection
Integral QD
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
IP Rating
IP67
Analog Linearity (mm)
0.25% of distance
Feature: Clear Object Detection
Yes
RS-485
No
