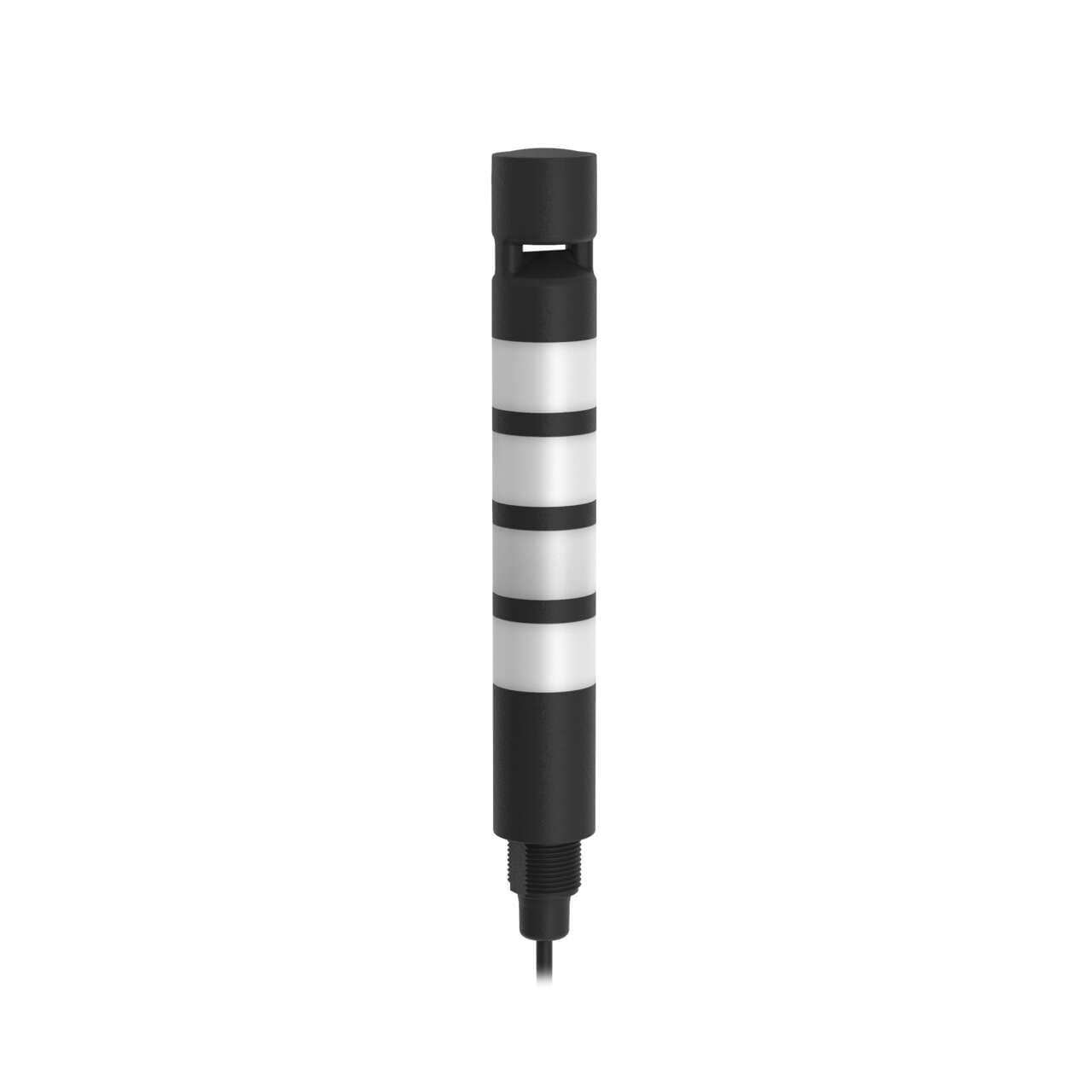

TL30BGYRBXAXC1 Banner Signal Towers

Product Details

• Weight
  22.6796 g
• Country Of Origin
  MX
• Mounting Thread
  M22 x 1.5
• Power
  DC
• Indication
  Yes
• Animation Option 1
  Solid On
• Audible Alarm Type
  Continuous
• Color 3 - Wavelength/Color Temp/Coordinates
  620 nm
• Feature: Hazardous Area
  No
• Product Size (mm)
  30
• Color Option 2
  Yellow
• Color 4 - Wavelength/Color Temp/Coordinates
  466 nm
• Max Op. Relative Humidity Non-Condensing (%)
  90% @ 50°C
• Min Op. Temperature (°C)
  -40
• IO Link
  No
• Color Technology
  Standard LED
• Color 1 - Wavelength/Color Temp/Coordinates
  525 nm
• Color Option 3
  Red
• Audible Operating Frequency (kHz)
  2.8
• Feature: Audible
  Yes
Wireless
No
Power Source
DC
Number of Tower Light Segments
5
Color Option 4
Blue
Max Input Response Time (ms)
1
Storage Temp (°C)
-40 to 70
Primary Housing Material
Polycarbonate
Connection
Cable
Lumens Color 3
2.5
Max Audible Intensity (db at 1m)
90
NEMA Type and UL Type Rating
UL 4X
Multi-Color Device
Simultaneous Colors On
Number of Colors / Segments
4
Lumens Color 1
7.5
Input Type
Bimodal (PNP/NPN)
Max Op. Temperature (°C)
50
Feature: Quick Disconnect
No
Housing Style
Base Mount - Tower
Color Option 1
Green
Lumens Color 4
2.0
Max Current Color (mA)
40
Physical Dimensions (LxWxH or DxH mm)
30.0 x 217.6
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Supply Voltage
12-30 V dc
Color 2 - Wavelength/Color Temp/Coordinates
592 nm
Environmental Rating
IP65
Feature: Chemical Resistant
No
Lumens Color 2
6.5
Number of Input Pins/Conductors
7
Max Current - Audible Alarm (mA)
20
Primary Housing Color
Black
Pro-Editor Compatible (Discrete)
No
Primary Window Material
Polycarbonate Diffused
Modbus RTU
No
