TM18VP6DV Banner Electronic Components

Name: TM18VP6DV
Brand: Banner

Part#:TM18VP6DV

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

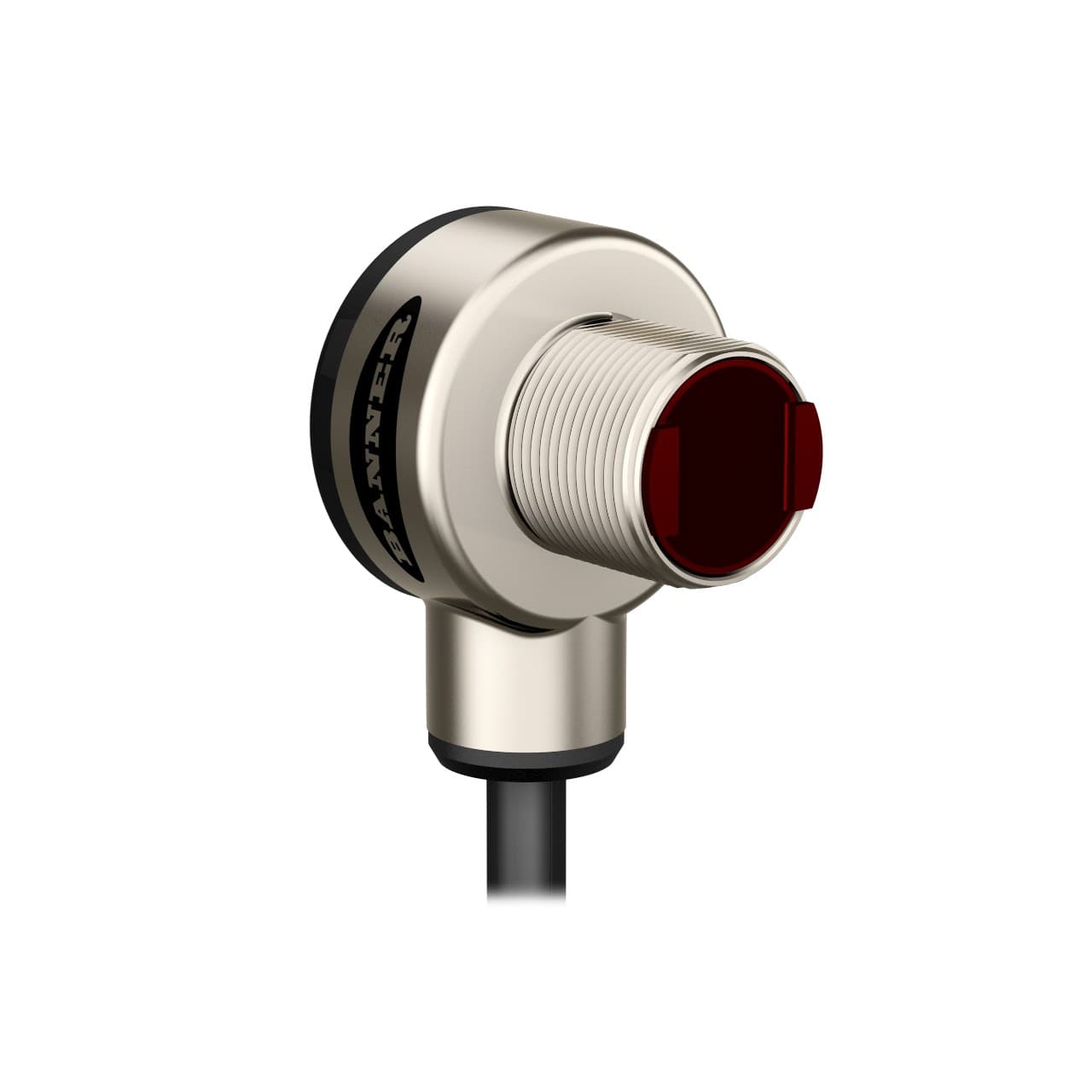

Banner Engineering TM18VP6DV is a photo-electric sensor from the TM18 series, designed for diffuse mode heavy-duty applications. This sensor features a nickel-plated die-cast zinc housing with an acrylic lens and is pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads. It operates on a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc nominal. The TM18VP6DV offers a threaded mount for installation and can operate within an ambient air temperature range of -40 to +70°C. It is protected to IP67 NEMA 6 standards, ensuring durability in harsh environments. The sensor has a cylindrical M18 threaded/barrel shape, includes 1 x digital output (PNP transistor), and provides a sensing distance of 500mm. It emits visible red light with a wavelength of 660 nm and features a quick response time of 3ms / 0.003 s. The operating modes include Light-ON and Dark-ON, accommodating various application needs.

Product Details

Product series / family name
EZ-BEAM series
Sub-range name
TM18 series
Functions
Photo-electric sensor green LED (power ON) yellow LED (output state)
Thread size
M18
Mounting mode
Threaded mount
Supply voltage (DC)
10Vdc-30Vdc (12Vdc / 24Vdc nom.)
Operating mode
Light-ON Dark-ON
Order code / Manufacturer SKU
18026
Primary brand
Banner Engineering
Design
diffuse mode heavy-duty
Light Color
Visible red
Digital outputs
1 x digital output (PNP transistor)
Compliant with standard(s)
cULus CE
Main function
Sensor (Photo-electric)
Shape
Cylindrical smooth
Connection type
Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
Degree of protection
IP67 NEMA 6
Wavelength
660 nm
Sensing distance
500mm
Response time
3ms / 0.003 s

Ambient air temperature for operation

-40...+70 °C

Material

Nickel-plate die-cast Zinc housing Acrylic lns.

Power

Quick Disconnect Type

No QD

Feature: Encapsulated

Yes

Repeatability (µs)

185

Sensing Mode (Detailed)

Diffuse

Max Op. Temp. (°C)

Lens Material

Acrylic

Feature: Chemical Resistant

Sensing Beam

Visible Red LED

Outputs

PNP

Special Feature: Water Detection

Barrel Diameter (mm)

DeviceNet

Housing Style

Barrel

IP Rating

IP67

Opposed Mode Emitter/Receiver

N/A

Min Op. Temp. (°C)

-40

Input/Output

Discrete

Operation

Light/Dark Operate

Feature: Washdown Rated

Yes

NEMA Rating

NEMA 6

Cable Length (m)

Power Supply/Supply Voltage

10-30 V dc

Delay at Power-up (ms)

100

Max Op. Relative Humidity [%]

90% @ 50°C

Feature: Hazardous Area

Primary Housing Material

Zinc Die-Cast with Nickel-Plating

Output response time (ms)

3 ON/1.5 OFF

Number of Pins

Feature: Timing (Hold/Delay)

Max Sensing Distance (mm)

500

Special Feature: Remote Teach

Adjustments

N/A

Feature: Audible

Sensing Mode (General)

Proximity

Connection

Cable

Indicator

LEDs

IO Link

Special Feature: Intrinsically Safe

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
