VS1AP5CV10Q Banner Proximity Sensors

VS1AP5CV10Q on Powermatic Associates
Banner
  • VS1AP5CV10Q
  • VS1AP5CV10Q

Part#:VS1AP5CV10Q

Alt. Part#:59177

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

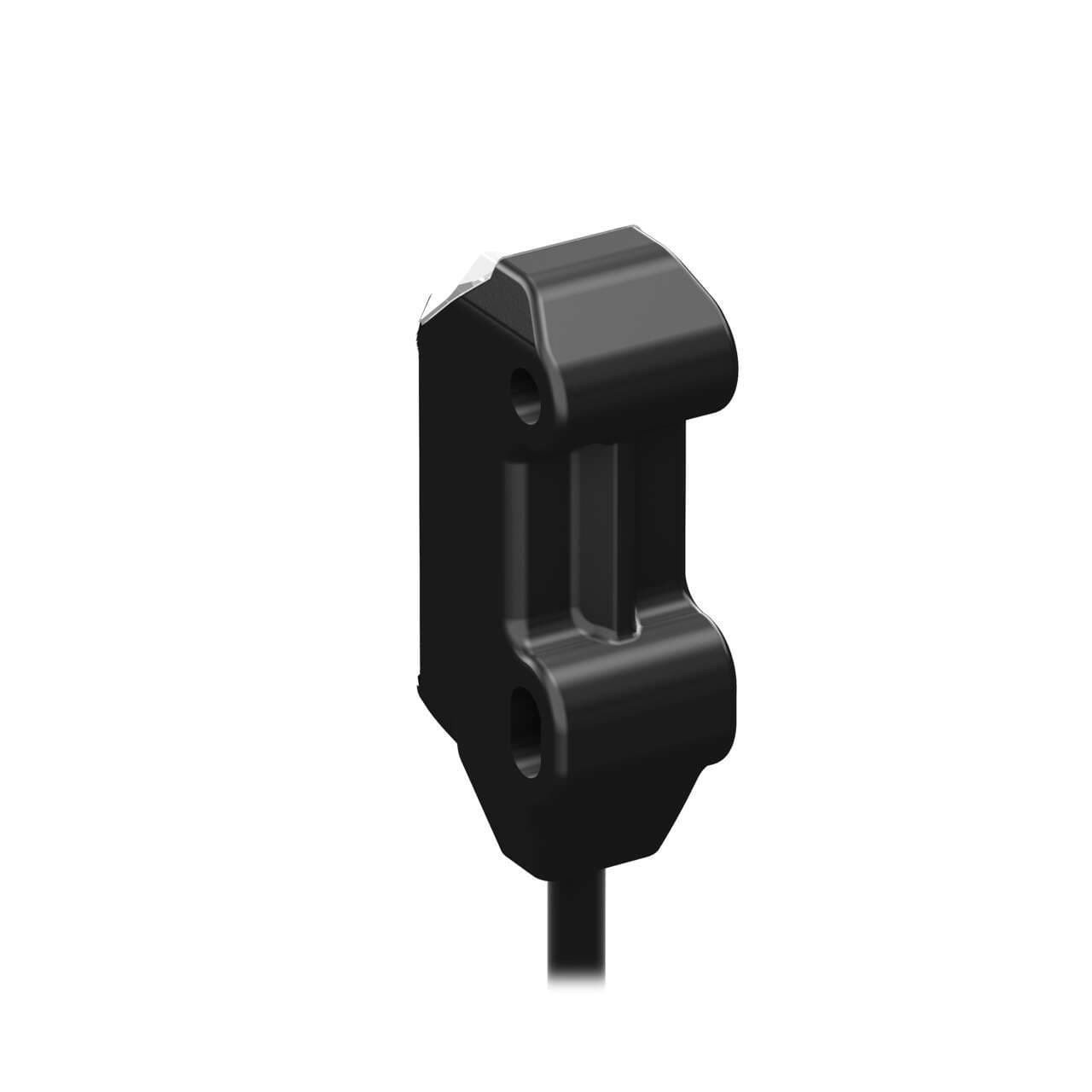

VS1 Series: Convergent; Focal Point: 10 mm; Input: 12-24 V dc; Output: Light Operate - PNP; 150 mm (6 in) 3-pin M8 Pigtail QD

Product Details

  • Weight
    45.9035104 g
  • Country Of Origin
    MX
  • Outputs
    PNP
  • Max Op. Temp. (°C)
    55
  • Repeatability (µs)
    250
  • Feature: Timing (Hold/Delay)
    No
  • Power
    DC
  • Input/Output
    Discrete
  • Special Feature: Remote Teach
    No
  • Barrel Diameter (mm)
    N/A
  • Housing Style
    Rectangular
  • Power Supply/Supply Voltage
    10-30 V dc
  • Number of Pins
    3
  • Feature: Encapsulated
    No
  • Special Feature: Intrinsically Safe
    No
  • Quick Disconnect Type
    M8 (Pico)
  • NEMA Rating
    NEMA 3
  • Feature: Hazardous Area
    No
  • Max Sensing Distance (mm)
    10
  • Primary Housing Material
    Thermoplastic
  • Delay at Power-up (ms)
    N/A
  • Opposed Mode Emitter/Receiver
    N/A
  • Connection
    Pigtail QD
  • Output response time (ms)
    1
  • IP Rating
    IP54
  • Min Op. Temp. (°C)
    -20
  • Special Feature: Water Detection
    No
  • Lens Material
    Acrylic
  • DeviceNet
    No
  • Sensing Beam
    Visible Red LED
  • Sensing Mode (General)
    Proximity
  • Max Op. Relative Humidity [%]
    80% @ 50°C
  • Feature: Audible
    No
  • Sensing Mode (Detailed)
    Convergent
  • Operation
    Light Operate
  • Adjustments
    N/A
  • Feature: Chemical Resistant
    No
  • Sensing Beam Wavelength
    630
  • Indicator
    LEDs
  • IO Link
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of VS1AP5CV10Q on Powermatic Associates is $131.00. Order now.


About the product

Banner Engineering VS1AP5CV10Q is a photo-electric sensor constructed with a thermoplastic housing and an acrylic lens. It offers a degree of protection rated at IP54 and NEMA 3, suitable for operation in ambient air temperatures ranging from -20 to +55°C. This sensor operates in a Light-ON NO (Normally Open) mode and features 1 x digital output utilizing a PNP transistor. It boasts a rapid response time of 1ms / 0.001 s. For connectivity, it comes pre-wired with a 6" / 150mm pigtail that terminates with a 3-pin Pico-style M8 connector. The sensor has a rectangular shape and operates at a wavelength of 630 nm, emitting visible red light. It requires a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc nominal. Designed in convergent mode, it has a sensing distance of 10mm. This part falls under the VS1 series of Banner Engineering's photo-electric sensors.
