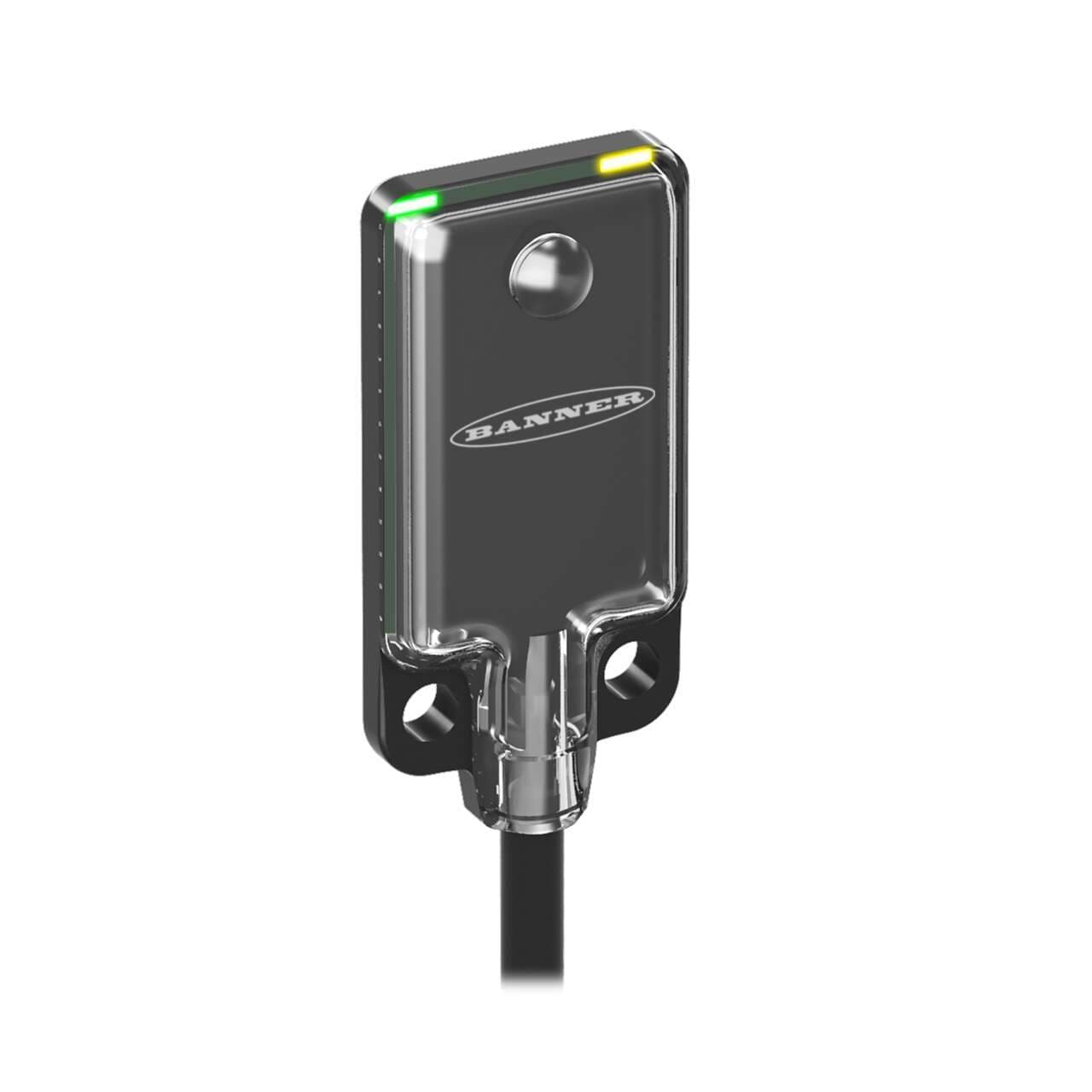

VS2RN5RQ Banner Proximity Sensors

VS2RN5RQ on Powermatic Associates
Banner

Part#:VS2RN5RQ

Alt. Part#:63098

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

VS2 Series: Receiver; Range 1.2 m max; Input: 12-24 V dc; Output: NPN Dark Operate; 3-pin M8 Pigtail QD

Product Details

  • Weight
    36.28736 g
  • Country Of Origin
    MX
  • Primary brand
    Banner Engineering
  • Design
    through-beam system / opposed mode
  • Connection type
    Pre-wired with 6" / 150mm pigtail terminated with 3-pin Pico-style M8 connector
  • Degree of protection
    IP67 NEMA 6
  • Material
    thermoplastic housing MABS lns.
  • Order code / Manufacturer SKU
    63098
  • Operating mode
    Dark-ON NC (Normally Closed)
  • Response time
    (ON) 1ms / 0.001 s(OFF) 0.5ms / 0.0005 s
  • Ambient air temperature for operation
    -20...+55 °C
  • Compliant with standard(s)
    CE
  • Wavelength
    940 nm
  • Sub-range name
    VS2 series
  • Sensing distance
    3m
  • Functions
    Photo-electric sensor receiver green LED (power ON) amber LED (light sensed)
  • Digital outputs
    1 x digital output (NPN transistor)
  • Main function
    Sensor (Photo-electric)
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Shape
    Rectangular
  • Light Color
    Infrared (IR)
  • Outputs
    NPN
  • Max Sensing Distance (mm)
    3000
  • Max Op. Temp. (°C)
    55
  • Special Feature: Remote Teach
    No
  • Lens Material
    MABS
  • Power
    DC
  • Special Feature: Intrinsically Safe
    No
  • Sensing Beam Wavelength
    940
  • Barrel Diameter (mm)
    N/A
  • Housing Style
    Rectangular
  • Min Op. Temp. (°C)
    -20
  • Special Feature: Water Detection
    No
  • Indicator
    LEDs
  • Max Op. Relative Humidity [%]
    80% @ 50°C
  • Feature: Audible
    No
  • Input/Output
    Discrete
  • Quick Disconnect Type
    M8 (Pico)
  • Delay at Power-up (ms)
    100
  • Adjustments
    N/A
  • IO Link
    No
  • Primary Housing Material
    Thermoplastic
  • Operation
    Dark Operate
  • Number of Pins
    3
  • Opposed Mode Emitter/Receiver
    Receiver
  • Sensing Mode (Detailed)
    Receiver
  • Power Supply/Supply Voltage
    10-30 V dc
  • NEMA Rating
    NEMA 6
  • Feature: Hazardous Area
    No
  • Sensing Beam
    Visible Red or IR
  • Output response time (ms)
    1 ON/0.5 OFF
  • IP Rating
    IP67
  • Feature: Encapsulated
    No
  • Sensing Mode (General)
    Opposed
  • Connection
    Pigtail QD
  • Repeatability (µs)
    100
  • Feature: Timing (Hold/Delay)
    No
  • DeviceNet
    No
  • Feature: Chemical Resistant
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of VS2RN5RQ on Powermatic Associates is $104.00. Order now.


About the product

Banner Engineering VS2RN5RQ is a photo-electric sensor designed with a thermoplastic housing MABS lns. and offers a degree of protection rated at IP67 NEMA 6, making it suitable for various industrial environments. It operates within an ambient air temperature range of -20 to +55 °C and features a dark-ON NC (Normally Closed) operating mode. This sensor is equipped with 1 x digital output (NPN transistor) and boasts a quick response time of 1ms for ON and 0.5ms for OFF. It comes pre-wired with a 6" / 150mm pigtail terminated with a 3-pin Pico-style M8 connector for easy installation. The rectangular-shaped sensor operates at a wavelength of 940 nm, emitting infrared (IR) light, and requires a supply voltage of 10Vdc-30Vdc (with 12Vdc / 24Vdc nominal). Designed as a through-beam system or opposed mode, it has a sensing distance of up to 3m. The VS2RN5RQ is part of the VS2 series and functions as a photo-electric sensor (receiver alone).
