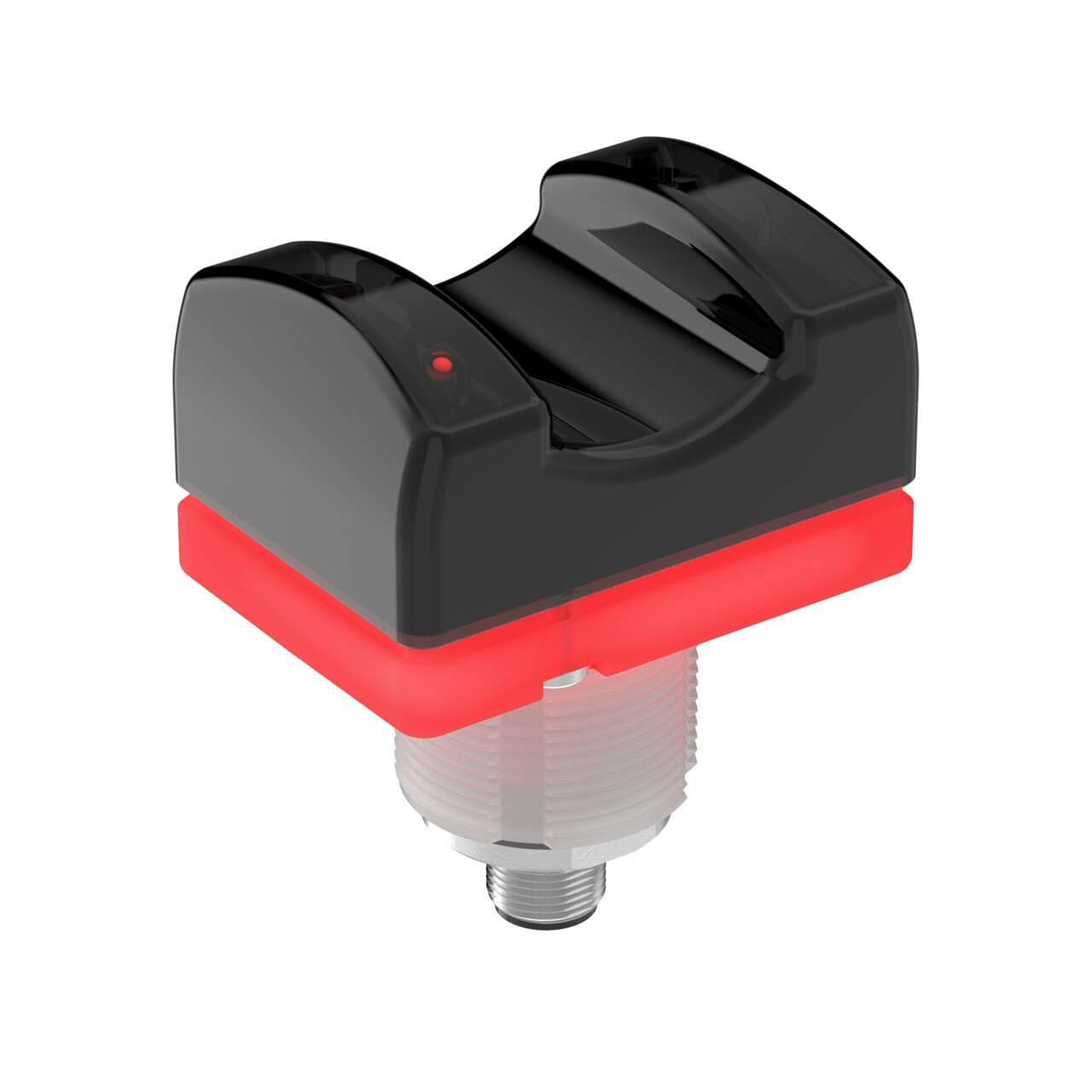

VTBP6GRQ Banner Pick-to-Light Sensors

VTBP6GRQ on Powermatic Associates
Banner
  • VTBP6GRQ
  • VTBP6GRQ

Part#:VTBP6GRQ

Alt. Part#:75937

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

VTB Series: Verification Touch Button 2-Color; Input: 12-30 V dc; Upper Housing: Polysulfone; Output: PNP; Job Light Input: +10-30 V dc; Colors: Green Red; 5-pin M12 Integral QD

Product Details

  • Weight
    181.4368 g
  • Country Of Origin
    MX
  • Pro-Editor Compatible (Discrete)
    No
  • Modbus RTU
    No
  • Wireless
    No
  • IO Link
    No
  • Multi-Color Device
    Single Color On
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Primary Window Material
    Polycarbonate Diffused
  • Button Operation
    Momentary
  • Primary Housing Color
    Black
  • Field Cover Color
    Black
  • Storage Temp (°C)
    -40 to 70
  • Min Op. Temperature (°C)
    -20
  • Max Op. Temperature (°C)
    50
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 55°C
  • NEMA Type and UL Type Rating
    NEMA 1, 3, 4, 4X, 12, 13
  • Environmental Rating
    IP66
  • Number of Beams
    1
  • Physical Dimensions (LxWxH or DxH mm)
    59.9 x 43.2 x 48.0
  • Max Output Response Time (ms)
    100
  • Input Type
    Bimodal (PNP/NPN)
  • Supply Voltage
    12-30 V dc
  • Output Type
    PNP
  • Number of Input Pins/Conductors
    5
  • Acknowledge (Sense) Light
    Green, Red
  • Operation
    Normally Open
  • Max Current Color (mA)
    120
  • Color Option 2
    Red
  • Number of Colors / Segments
    2
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Integral QD
  • Color Technology
    Standard LED
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Color Option 1
    Green
  • Product Size (mm)
    Other
  • Animation Option 1
    Solid On
  • Sensing Mode (General)
    Single Point Optical
  • Primary Housing Material
    Thermoplastic Polysulfone
  • Mounting Thread
    M30 x 1.5
  • Housing Style
    Base Mount - Saddle
  • Activation Function
    Optical
  • Actuation
    Yes
  • Power Source
    DC
  • Power
    DC
  • Cable Length (m)
    2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of VTBP6GRQ on Powermatic Associates is $202.00. Order now.

About the product

Banner Engineering VTBP6GRQ is a capacitive touch-sensitive pick-to-light device featuring a polysulfone upper housing and a polycarbonate base, designed for surface or base flush mounting via a 30mm hole. It offers a degree of protection rated at IP66, NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 12, and NEMA 13, making it suitable for a wide range of environmental conditions with an operational ambient air temperature range of -20°C to +50°C. This part operates in a momentary mode where the job light (G; Green) is either on or flashing when the job input is active, and touch activates the output and sensing light (R; Red) with a normally open (NO) touch output. It includes 1 x digital output (12-30Vdc; PNP) for touch and 1 x digital input (12-30Vdc; NPN/PNP) for JOB color control. The VTBP6GRQ is pre-equipped with a 5-pin M12 Euro-style quick disconnect (QD) connector, consumes 120mA of current, and requires a supply voltage of 12Vdc to 30Vdc (24Vdc nominal). Its design features LED illumination in a saddle/yoke-shaped body with a black housing.
