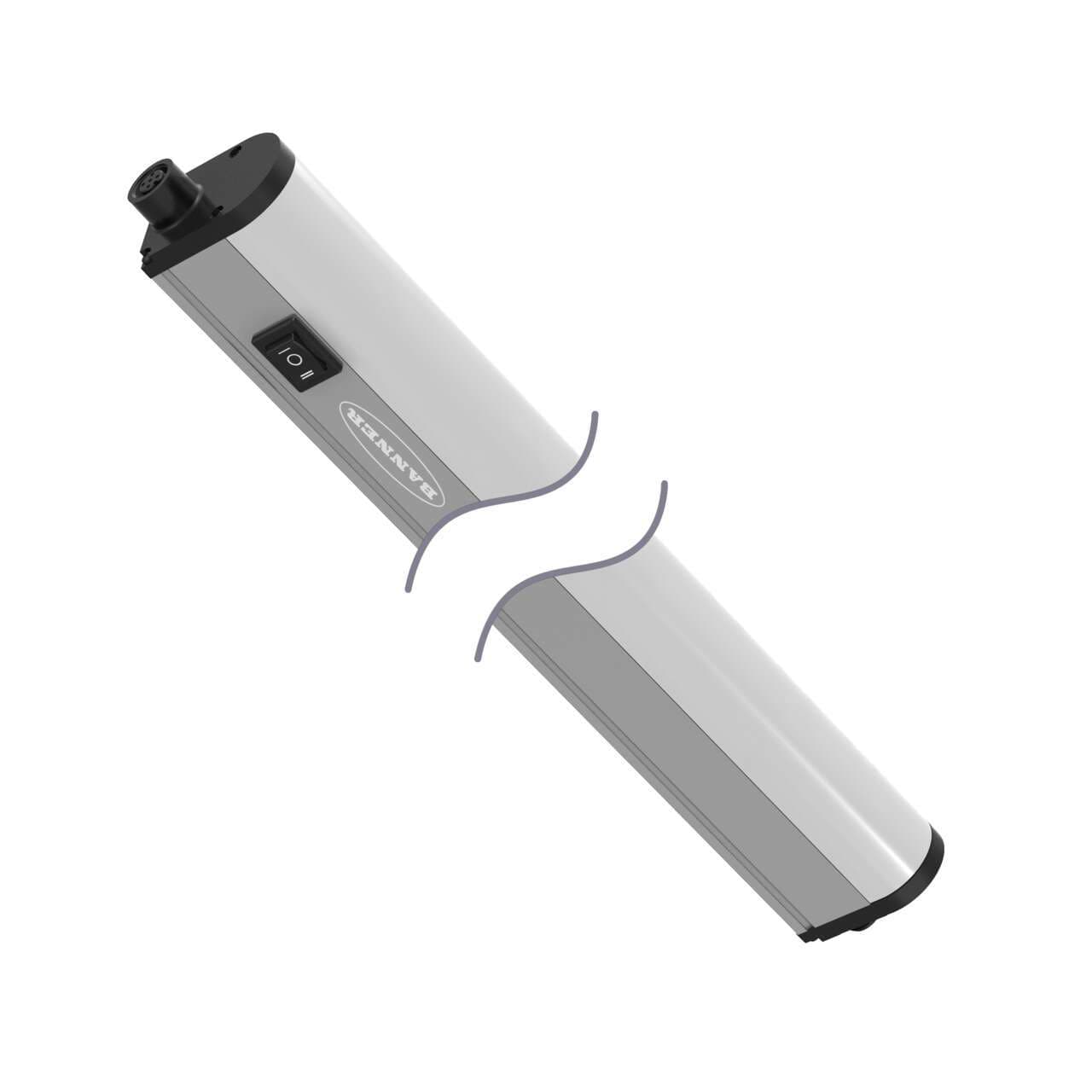

WLB32C850PBQ Banner Light Bars
Part#:WLB32C850PBQ
Alt. Part#:87483
Manufacturer:Banner
Category:Light Bars
Product Lifecycle:Active
Product description
WLB32 Work Light Bar; Switched Hi/Low/Off; Length: 850 mm; Voltage: 12-30 V dc; Environmental Rating: IP50; Color: White; Cascadable; 4-pin M12 Integral QD; Diffuse Window
Product Details
- Weight 612.3492 g
- Country Of Origin MX
- Number of Colors / Segments 1
- Color Option 1 White
- Storage Temp (°C) -40 to 70
- Feature: Chemical Resistant No
- Power Source DC
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Number of Input Pins/Conductors 4
- Illumination Switch Function I=Low; O=OFF; II=High
- Power DC
- Animation Option 1 Solid On
- Supply Voltage 12-30 V dc
- Feature: Hazardous Area No
- Quick Disconnect Type M12 (Euro)
- Physical Dimensions (LxWxH or DxH mm) 884.0 x 31.9 x 46.0
- Feature: Audible No
- Primary Housing Material Aluminum
- Lumens Color 1 2250
- Primary Window Material Polycarbonate Diffused
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Product Size (mm) 32
- Illuminated Length (LxWxH mm) 850.0
- Mounting Thread No Thread
- Connection Integral QD
- Max Op. Temperature (°C) 70
- IO Link No
- Illumination Yes
- Color Technology Standard LED
- Environmental Rating IP50
- Wireless No
- Housing Style Linear Strip
- Dimming Option High-Low-Off
- Min Op. Temperature (°C) -40
- Feature: Cascade Yes
- Modbus RTU No
- Pro-Editor Compatible (Discrete) No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLB32C850PBQ on Powermatic Associates is $241.00. Order now.
About the product
Banner Engineering WLB32C850PBQ is a cascadable industrial LED workstation task light bar designed for a variety of lighting needs. It features a high/low/off switch and provides 1-color Daylight White (DW) LED illumination. This task light operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. It measures 850mm in length and 32mm in width. The construction includes a polycarbonate diffused window and an aluminium housing, ensuring durability. It comes pre-equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector for easy installation. The linear lighting shape is designed to fit a wide range of applications. It offers a degree of protection rated at IP50 and can operate in ambient air temperatures ranging from -40°C to +70°C. The task light also features 1 x digital input (12Vdc / 24Vdc) for color control, consumes 2.4A of current, and delivers a luminous flux of 2250 lumens.
