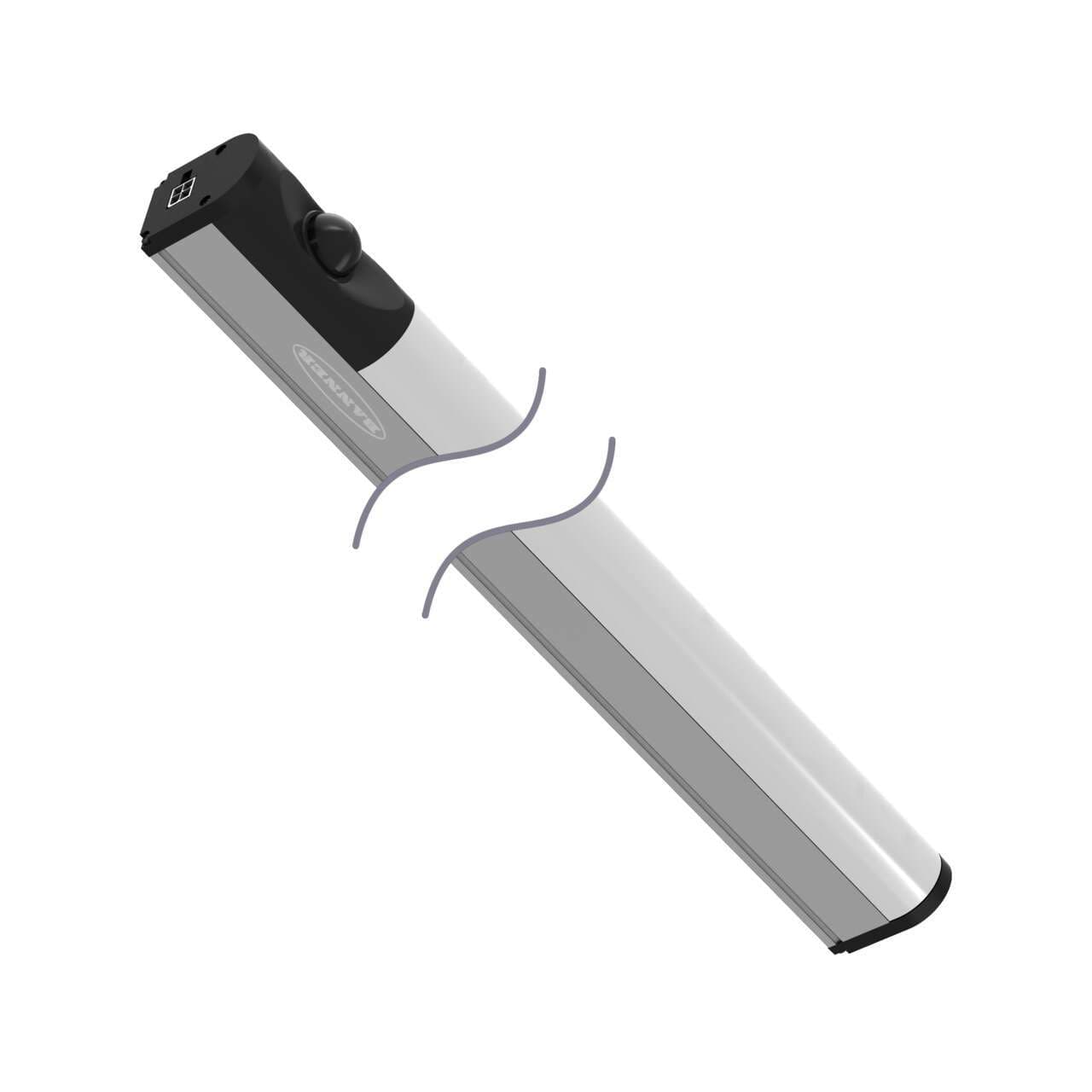

WLB32ZC1130MQMB Banner Light Bars
Part#:WLB32ZC1130MQMB
Alt. Part#:800350
Manufacturer:Banner
Category:Light Bars
Product Lifecycle:Active
Product description
WLB32 Work Light Bar; Motion Sensor; Length: 1130 mm; Voltage: 90-264 V ac; Environmental Rating: IP50; Color: White; Cascadable; QD - Includes Type B Power Cord; Diffuse window
Product Details
- Weight 1111.3004 g
- Country Of Origin MX
- Housing Style Linear Strip
- Mounting Thread No Thread
- Power Source AC
- Animation Option 1 Solid On
- Environmental Rating IP50
- Feature: Chemical Resistant No
- Supply Voltage 90-264 V ac
- Power AC
- Connection Integral QD
- Primary Housing Material Aluminum
- Number of Input Pins/Conductors 3
- Illumination Switch Function Motion Activated
- Modbus RTU No
- Number of Colors / Segments 1
- Lumens Color 1 3000
- Feature: Cascade Yes
- Wireless No
- Illumination Yes
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Storage Temp (°C) -40 to 70
- Pro-Editor Compatible (Discrete) No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Max Op. Temperature (°C) 45
- Color Technology Standard LED
- Illuminated Length (LxWxH mm) 1130.0
- Feature: Audible No
- IO Link No
- Product Size (mm) 32
- Physical Dimensions (LxWxH or DxH mm) 1214.0 x 32.0 x 50.1
- Min Op. Temperature (°C) -25
- Feature: Hazardous Area No
- Color Option 1 White
- Feature: Quick Disconnect Yes
- Primary Window Material Polycarbonate Diffused
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLB32ZC1130MQMB on Powermatic Associates is $351.00. Order now.
About the product
Banner Engineering WLB32ZC1130MQMB is a cascadable industrial LED workstation light bar designed with motion sensing and equipped with a type B power cord for 1-color Daylight White (DW) LED illumination. It operates on a supply voltage of 90Vac-264Vac, accommodating 120Vac, 220Vac, 230Vac, and 240Vac systems. The dimensions of this linear lighting unit are L1130mm x W32mm, featuring a polycarbonate (PC) diffused window and an aluminium housing for durability. It comes pre-wired with a 1.8m / 5.9ft power cord terminated with a plug compatible in North & Central America, Japan, and Taiwan. The WLB32ZC1130MQMB offers a degree of protection rated at IP50 and can operate in ambient air temperatures ranging from -25°C to +45°C. It includes 1 x digital input (100-240Vac) for color control, consumes 500mA of current, and provides a luminous flux of 3000 lm (lumens).
