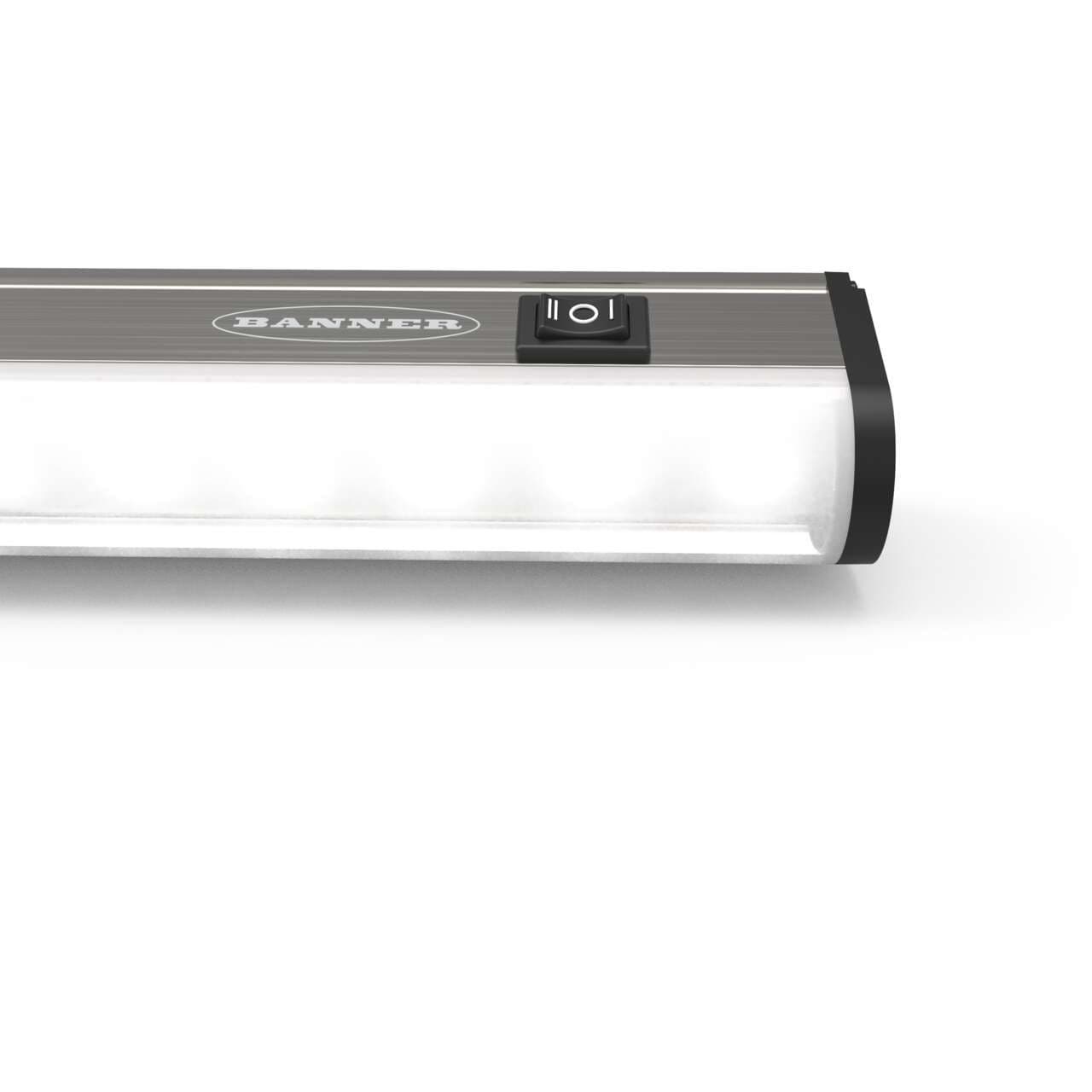

WLB32ZC850QMB Banner Light Bars
Part#:WLB32ZC850QMB
Alt. Part#:96005
Manufacturer:Banner
Category:Light Bars
Product Lifecycle:Active
Product description
WLB32 Work Light Bar; No Switch; Length: 850 mm; Voltage: 90-264 V ac; Environmental Rating: IP50; Color: White; Cascadable; QD - Includes Type B Power Cord; Diffuse Window
Product Details
- Weight 1088.6208 g
- Country Of Origin MX
- Number of Colors / Segments 1
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Feature: Audible No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Primary Window Material Polycarbonate Diffused
- Number of Input Pins/Conductors 3
- Power AC
- Illuminated Length (LxWxH mm) 850.0
- Feature: Hazardous Area No
- Primary Housing Material Aluminum
- Color Technology Standard LED
- Feature: Chemical Resistant No
- Product Size (mm) 32
- Supply Voltage 90-264 V ac
- Storage Temp (°C) -40 to 70
- Power Source AC
- Animation Option 1 Solid On
- Max Op. Temperature (°C) 45
- Modbus RTU No
- Housing Style Linear Strip
- Environmental Rating IP50
- Color Option 1 White
- Mounting Thread No Thread
- Lumens Color 1 2250
- Feature: Cascade Yes
- Connection Integral QD
- Physical Dimensions (LxWxH or DxH mm) 862.0 x 32.0 x 46.0
- IO Link No
- Illumination Yes
- Min Op. Temperature (°C) -25
- Feature: Quick Disconnect Yes
- Wireless No
- Pro-Editor Compatible (Discrete) No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLB32ZC850QMB on Powermatic Associates is $241.00. Order now.
About the product
Banner Engineering WLB32ZC850QMB is a cascadable industrial LED workstation light bar designed for task lighting. It features type B power cord 1-color Daylight White (DW) LED illumination. The supply voltage ranges from 90Vac to 264Vac, accommodating 120Vac, 220Vac, 230Vac, and 240Vac. This light bar measures 850mm in length and 32mm in width, with a polycarbonate (PC) diffused window and aluminium housing. It is pre-wired with a 1.8m / 5.9ft power cord terminated with a plug suitable for North & Central America, Japan, and Taiwan. The linear lighting shape of this product is complemented by a degree of protection rated at IP50. It can operate in ambient air temperatures ranging from -25°C to +45°C. The WLB32ZC850QMB includes 1 x digital input (100-240Vac) for color control, consumes 375mA of current, and provides a luminous flux of 2250 lm (lumens).
