WLB32ZC1130PBQMB Banner Light Bars
Part#:WLB32ZC1130PBQMB
Alt. Part#:87496
Manufacturer:Banner
Category:Light Bars
Product Lifecycle:Active
Product description
WLB32 Work Light Bar; Switched Hi/Low/Off; Length: 1130 mm; Voltage: 90-264 V ac; Environmental Rating: IP50; Color: White; Cascadable; QD - Includes Type B Power cord; Diffuse window
Product Details
- Weight 1088.6208 g
- Country Of Origin MX
- Illumination Yes
- Lumens Color 1 3000
- Storage Temp (°C) -40 to 70
- Modbus RTU No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Dimming Option High-Low-Off
- Power Source AC
- Connection Integral QD
- Illuminated Length (LxWxH mm) 1130.0
- Mounting Thread No Thread
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Supply Voltage 90-264 V ac
- Max Op. Temperature (°C) 45
- Wireless No
- Illumination Switch Function I=Low; O=OFF; II=High
- Pro-Editor Compatible (Discrete) No
- Environmental Rating IP50
- Feature: Cascade Yes
- Feature: Hazardous Area No
- Product Size (mm) 32
- Animation Option 1 Solid On
- Number of Colors / Segments 1
- Color Option 1 White
- Min Op. Temperature (°C) -25
- IO Link No
- Power AC
- Number of Input Pins/Conductors 3
- Primary Window Material Polycarbonate Diffused
- Color Technology Standard LED
- Feature: Chemical Resistant No
- Primary Housing Material Aluminum
- Housing Style Linear Strip
- Physical Dimensions (LxWxH or DxH mm) 1144.0 x 32.0 x 46.0
- Feature: Audible No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLB32ZC1130PBQMB on Powermatic Associates is $310.00. Order now.
About the product

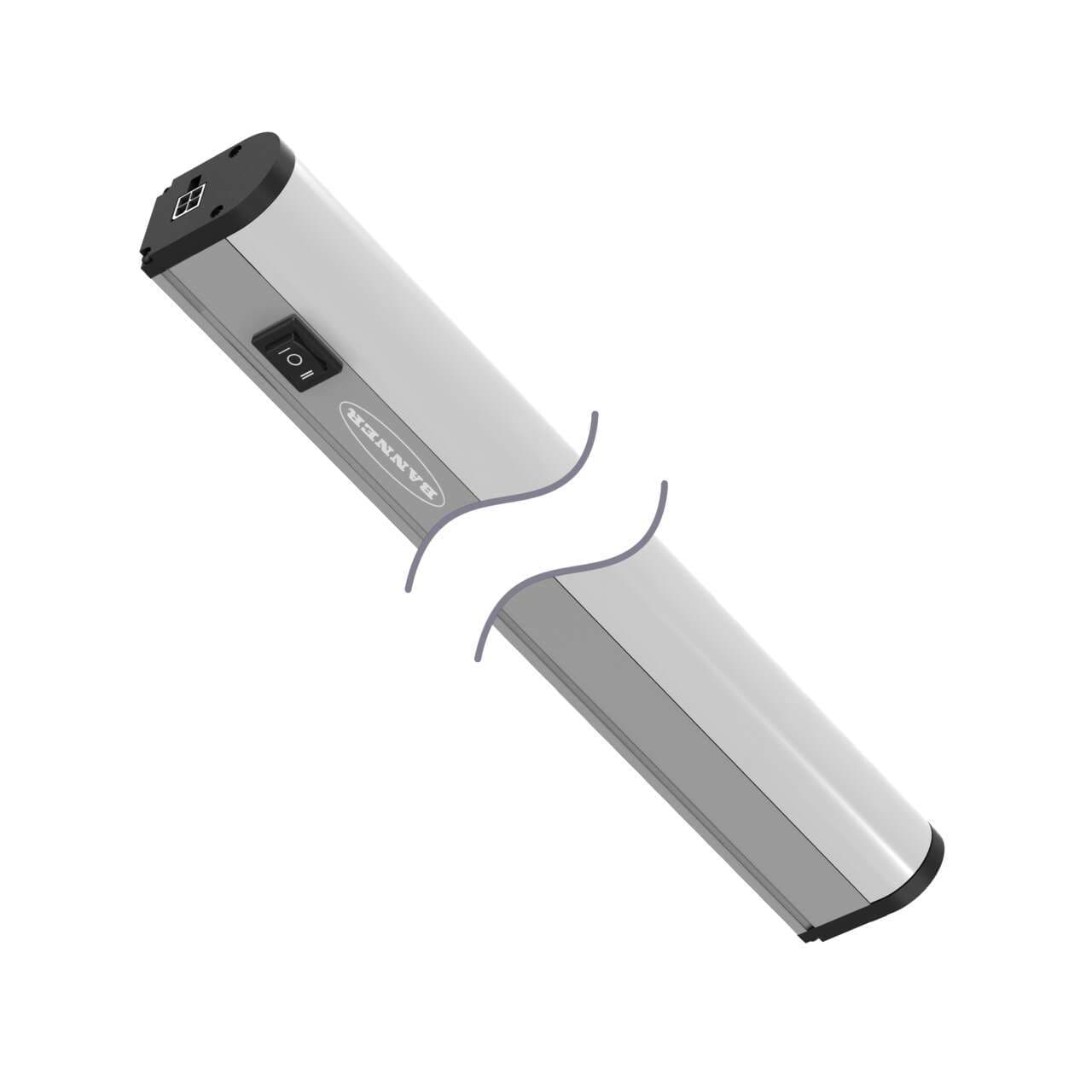

Banner Engineering WLB32ZC1130PBQMB is a cascadable industrial LED workstation task light bar designed for a variety of applications requiring clear, bright illumination. It features a high/low/off switch type B power cord and provides 1-color Daylight White (DW) LED illumination. This task light operates on a supply voltage range of 90Vac-264Vac, accommodating 120Vac, 220Vac, 230Vac, and 240Vac systems. The dimensions of this product are L1130mm x W32mm, and it is constructed with a polycarbonate (PC) diffused window and an aluminium housing for durability. It comes pre-wired with a 1.8m / 5.9ft power cord terminated with a plug compatible in North & Central America, Japan, and Taiwan. The linear shape of the light bar is designed for easy integration into workspaces, and it offers a degree of protection rated at IP50. It is suitable for operation in ambient air temperatures ranging from -25°C to +45°C. The WLB32ZC1130PBQMB includes 1 x digital input (100-240Vac) for color control and has a current consumption of 500mA. It delivers a luminous flux of 3000 lm (lumens), providing ample lighting for a variety of tasks.
