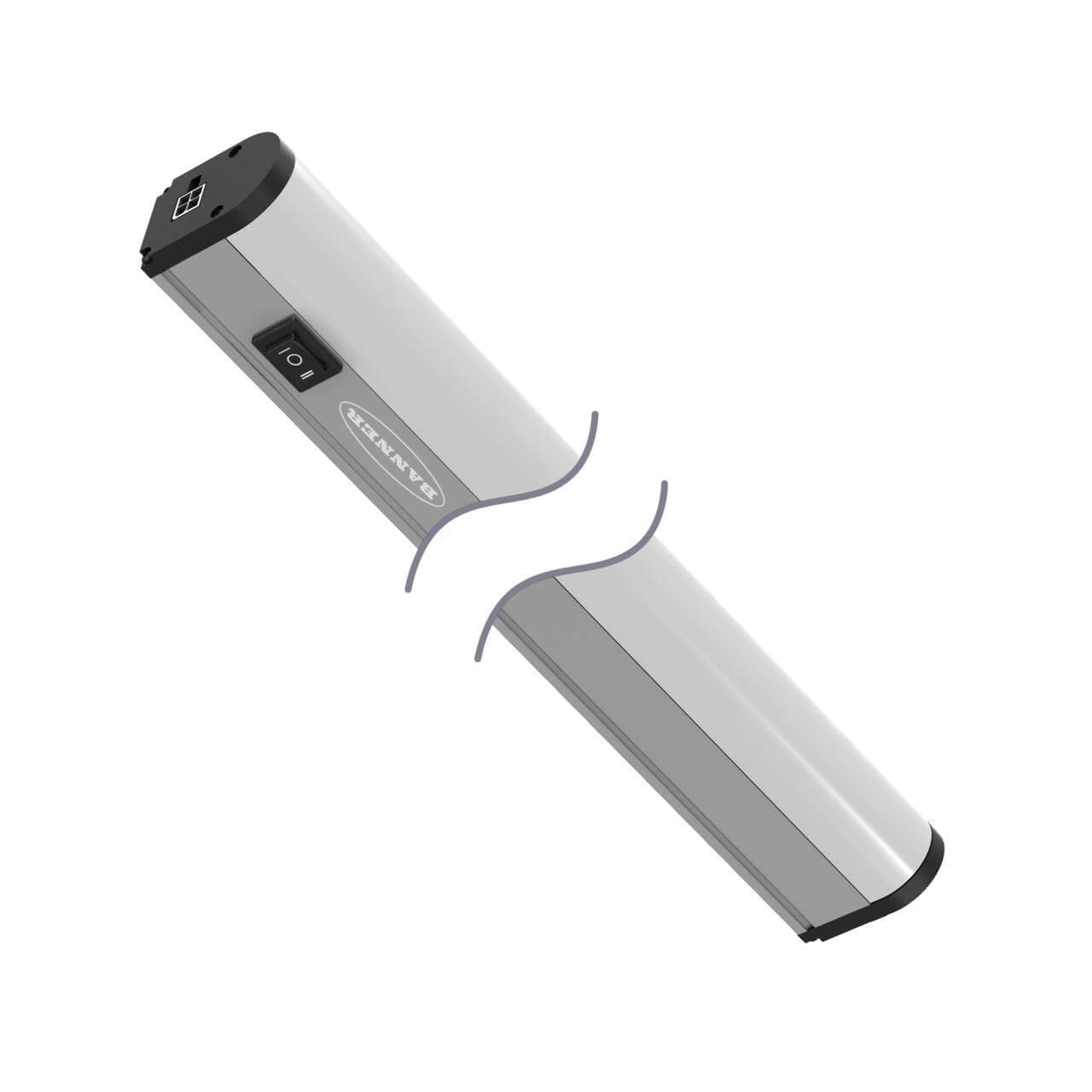

WLB32ZC285PBQM Banner Light Bars
Part#:WLB32ZC285PBQM
Alt. Part#:87489
Manufacturer:Banner
Category:Light Bars
Product Lifecycle:Active
Product description
WLB32 Work Light Bar; Switched Hi/Low/Off; Length: 285 mm; Voltage: 90-264 V ac; Environmental Rating: IP50; Color: White; Cascadable; QD - No Power cord; Diffuse window
Product Details
- Weight 272.1552 g
- Country Of Origin MX
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Illumination Yes
- Animation Option 1 Solid On
- Min Op. Temperature (°C) -25
- Number of Colors / Segments 1
- Lumens Color 1 750
- Illuminated Length (LxWxH mm) 285.0
- Modbus RTU No
- Primary Housing Material Aluminum
- Color Technology Standard LED
- Physical Dimensions (LxWxH or DxH mm) 298.0 x 32.0 x 46.0
- IO Link No
- Power AC
- Color Option 1 White
- Storage Temp (°C) -40 to 70
- Feature: Cascade Yes
- Product Size (mm) 32
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Primary Window Material Polycarbonate Diffused
- Wireless No
- Housing Style Linear Strip
- Number of Input Pins/Conductors 3
- Feature: Audible No
- Power Source AC
- Dimming Option High-Low-Off
- Max Op. Temperature (°C) 45
- Mounting Thread No Thread
- Supply Voltage 90-264 V ac
- Environmental Rating IP50
- Feature: Hazardous Area No
- Connection Integral QD
- Illumination Switch Function I=Low; O=OFF; II=High
- Pro-Editor Compatible (Discrete) No
- Feature: Chemical Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLB32ZC285PBQM on Powermatic Associates is $96.00. Order now.
About the product
Banner Engineering WLB32ZC285PBQM is a cascadable industrial LED workstation task light bar designed for a variety of lighting needs. It features a high/low/off switch and provides 1-color Daylight White (DW) LED illumination. This unit operates on a supply voltage range of 90Vac-264Vac, accommodating 120Vac, 220Vac, 230Vac, and 240Vac inputs. The dimensions of this task light are L285mm x W32mm, with a construction that includes a polycarbonate (PC) diffused window and an aluminium housing for durability. It comes pre-equipped with a plug-in connector for easy installation and is designed in a linear lighting shape. The WLB32ZC285PBQM offers a degree of protection rated at IP50 and can operate in ambient air temperatures ranging from -25°C to +45°C. It includes 1 x digital input (100-240Vac) for color control, consumes 125mA of current, and delivers a luminous flux of 750 lm (lumens).
