WLC60XW340AQ Banner Light Bars
Part#:WLC60XW340AQ
Alt. Part#:86861
Manufacturer:Banner
Category:Light Bars
Product Lifecycle:Active
Product description

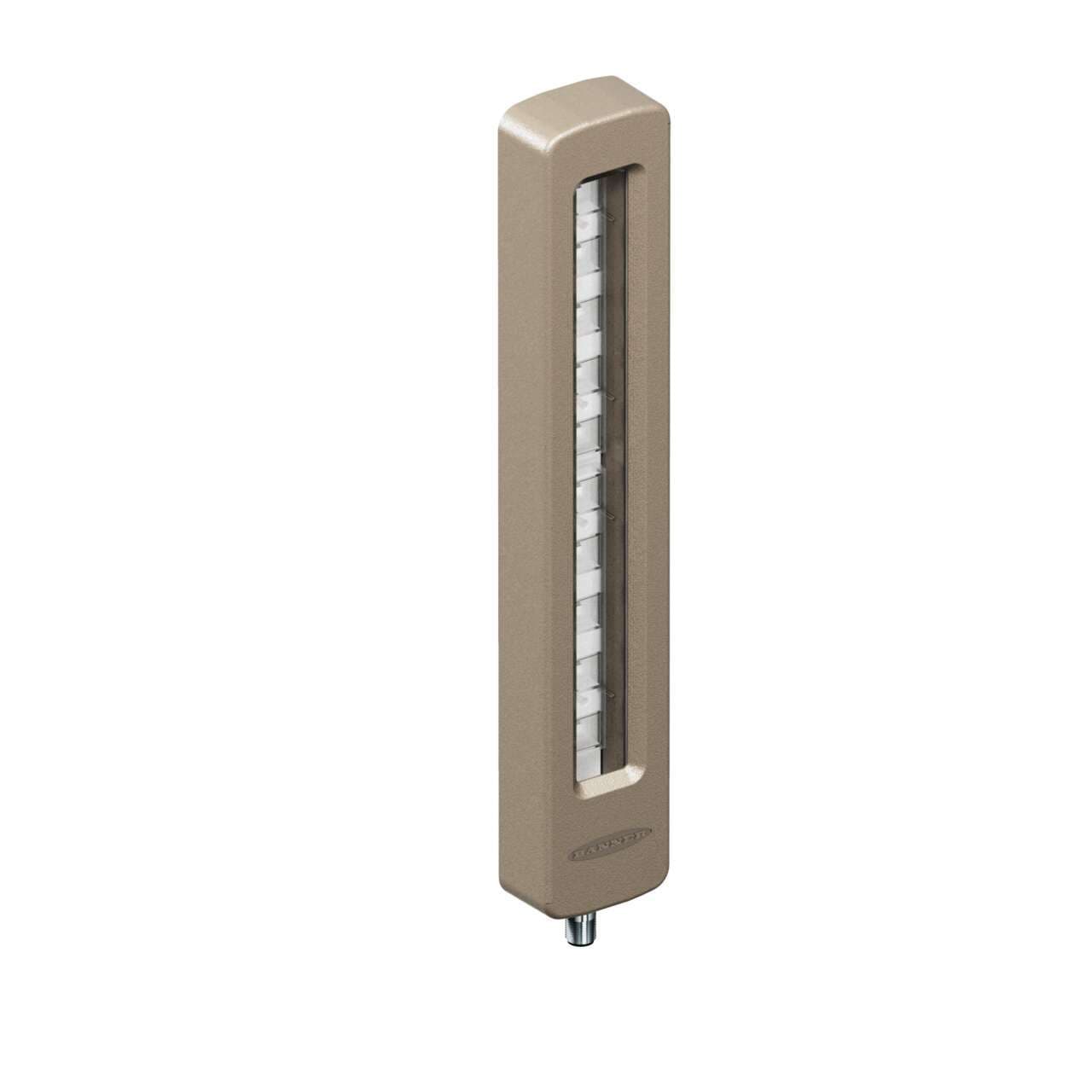

WLC60 Work Light; Length: 340 mm; Nickel-Plated Aluminum; Voltage: 12-30 V dc; Environmental Rating: IP68g, IP69K; Color: White; Window: Polycarbonate; 4-pin M12 Integral QD; Side exit
Product Details
- Weight 988.83056 g
- Country Of Origin MX
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color 1 - Wavelength/Color Temp/Coordinates 6500K (Cool)
- Feature: Washdown Rated Yes
- Power DC
- Lumens Color 1 1300
- Min Op. Temperature (°C) -40
- Feature: Audible No
- Housing Style Linear Strip
- Connection Integral QD
- Illuminated Length (LxWxH mm) 254.6
- Storage Temp (°C) -40 to 70
- Power Source DC
- Color Option 1 White
- Supply Voltage 12-30 V dc
- Wireless No
- Number of Colors / Segments 1
- Color Technology Standard LED
- Max Op. Temperature (°C) 70
- Feature: Quick Disconnect Yes
- Product Size (mm) 60
- Animation Option 1 Solid On
- Environmental Rating IP67; IP68; IP68g; IP69
- IO Link No
- Mounting Thread No Thread
- Dimming Option High-Low-Off
- Primary Window Material Polycarbonate Clear
- Primary Housing Material Nickel-Plated Aluminum
- Quick Disconnect Type M12 (Euro)
- Physical Dimensions (LxWxH or DxH mm) 360.4 x 60.9 x 31.3
- Feature: Hazardous Area No
- Illumination Yes
- Number of Input Pins/Conductors 4
- Feature: Chemical Resistant Yes
- Pro-Editor Compatible (Discrete) No
- Modbus RTU No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLC60XW340AQ on Powermatic Associates is $405.00. Order now.
About the product
Banner Engineering WLC60XW340AQ is a task light designed for industrial heavy-duty applications, featuring LED area lighting with 1-color Cool White (W) LED illumination. It operates on a supply voltage of 12Vdc-30Vdc (24Vdc nom.) and has dimensions of L340mm x W24.5mm. The light is constructed with a clear polycarbonate (PC) window and a nickel-plated aluminum housing, ensuring durability. It comes pre-equipped with a 4-pin M12 Euro-style QD connector for easy installation. This linear strip lighting is designed for base mounting and offers a high degree of protection with ratings of IP67, IP68, IP68G, and IP69K, making it suitable for a wide range of environmental conditions. It can operate in ambient air temperatures ranging from -40°C to +70°C. The WLC60XW340AQ also features 1 x digital input (12Vdc / 24Vdc) for color control and provides a luminous flux of 1300 lm (lumens).
