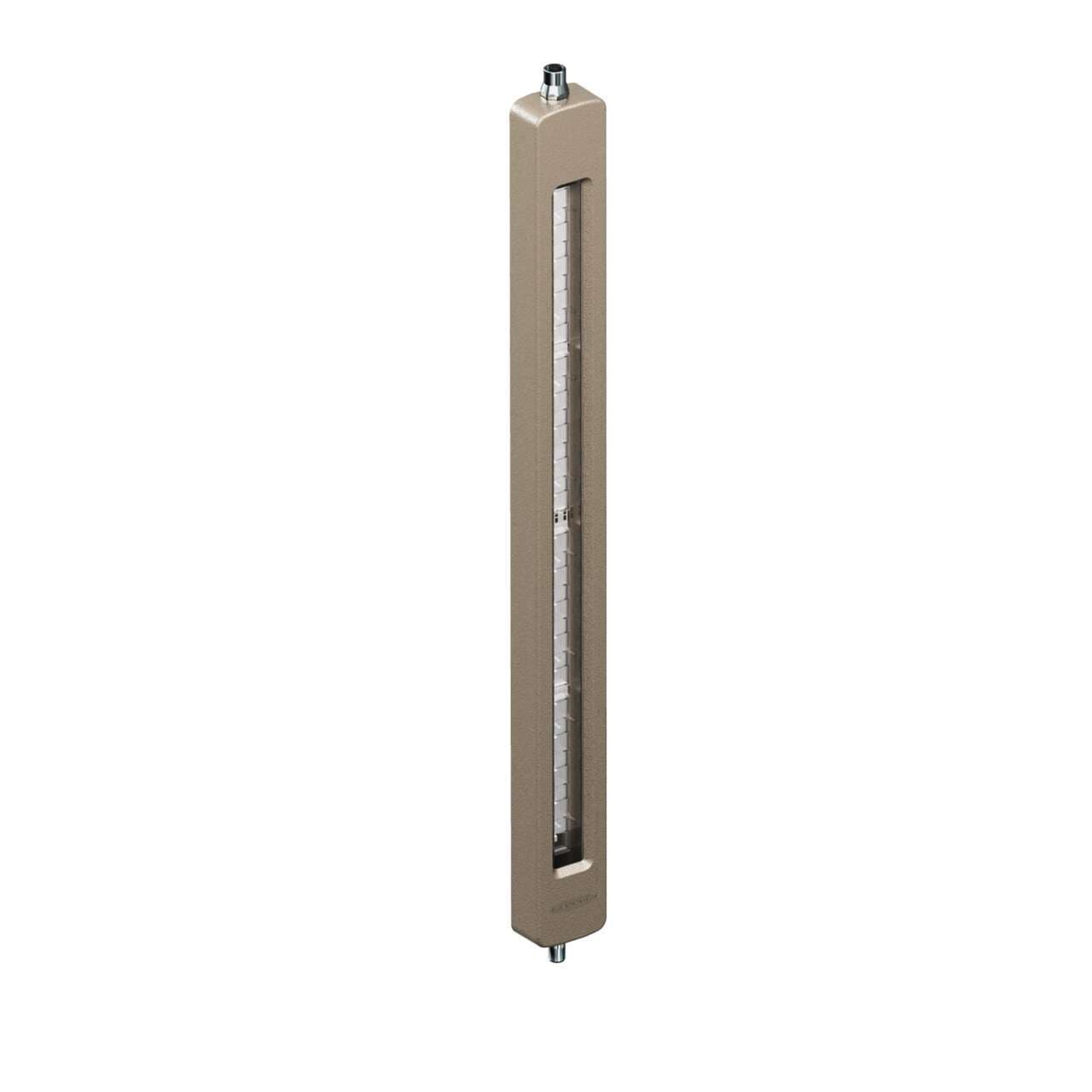

WLC60CB640AQ Banner Light Bars
Part#:WLC60CB640AQ
Alt. Part#:96365
Manufacturer:Banner
Category:Light Bars
Product Lifecycle:Active
Product description
WLC60 Work Light; Length: 640 mm; Nickel-Plated Aluminum; Voltage: 12-30 V dc; Environmental Rating: IP68g, IP69K; Color: Blue; Cascadable; Window: Polycarbonate; 4-pin M12 Integral QD; Side Exit
Product Details
- Weight 1750.86512 g
- Country Of Origin US
- Power Source DC
- Connection Integral QD
- Physical Dimensions (LxWxH or DxH mm) 674.1 x 60.9 x 21.3
- Feature: Audible No
- Housing Style Linear Strip
- Lumens Color 1 760
- Illuminated Length (LxWxH mm) 517.6
- Feature: Chemical Resistant Yes
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Dimming Option High-Low-Off
- Feature: Hazardous Area No
- Pro-Editor Compatible (Discrete) No
- Power DC
- Animation Option 1 Solid On
- Number of Input Pins/Conductors 4
- Feature: Washdown Rated Yes
- Mounting Thread No Thread
- Color Technology Standard LED
- Min Op. Temperature (°C) -40
- Feature: Quick Disconnect Yes
- Illumination Yes
- Color 1 - Wavelength/Color Temp/Coordinates 475 nm
- Storage Temp (°C) -40 to 70
- Wireless No
- Primary Housing Material Nickel-Plated Aluminum
- Color Option 1 Blue
- Environmental Rating IP67; IP68; IP68g; IP69
- Feature: Cascade Yes
- Number of Colors / Segments 1
- Quick Disconnect Type M12 (Euro)
- Max Op. Temperature (°C) 70
- IO Link No
- Product Size (mm) 60
- Supply Voltage 12-30 V dc
- Primary Window Material Polycarbonate Clear
- Modbus RTU No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLC60CB640AQ on Powermatic Associates is $701.00. Order now.
About the product
Banner Engineering WLC60CB640AQ is a cascadable industrial heavy-duty LED area light designed for task lighting applications. It features a 1-color blue LED illumination housed within a clear polycarbonate window and a nickel-plated aluminum housing. This linear strip lighting operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc, and is pre-equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector. The WLC60CB640AQ measures 640mm in length and 24.5mm in width. It offers a luminous flux of 760 lumens and includes one digital input (12Vdc / 24Vdc) for color control. Designed for base mounting, this product is rated with a degree of protection of IP67, IP68, IP68G, and IP69K, making it suitable for operation in ambient air temperatures ranging from -40°C to +70°C.
