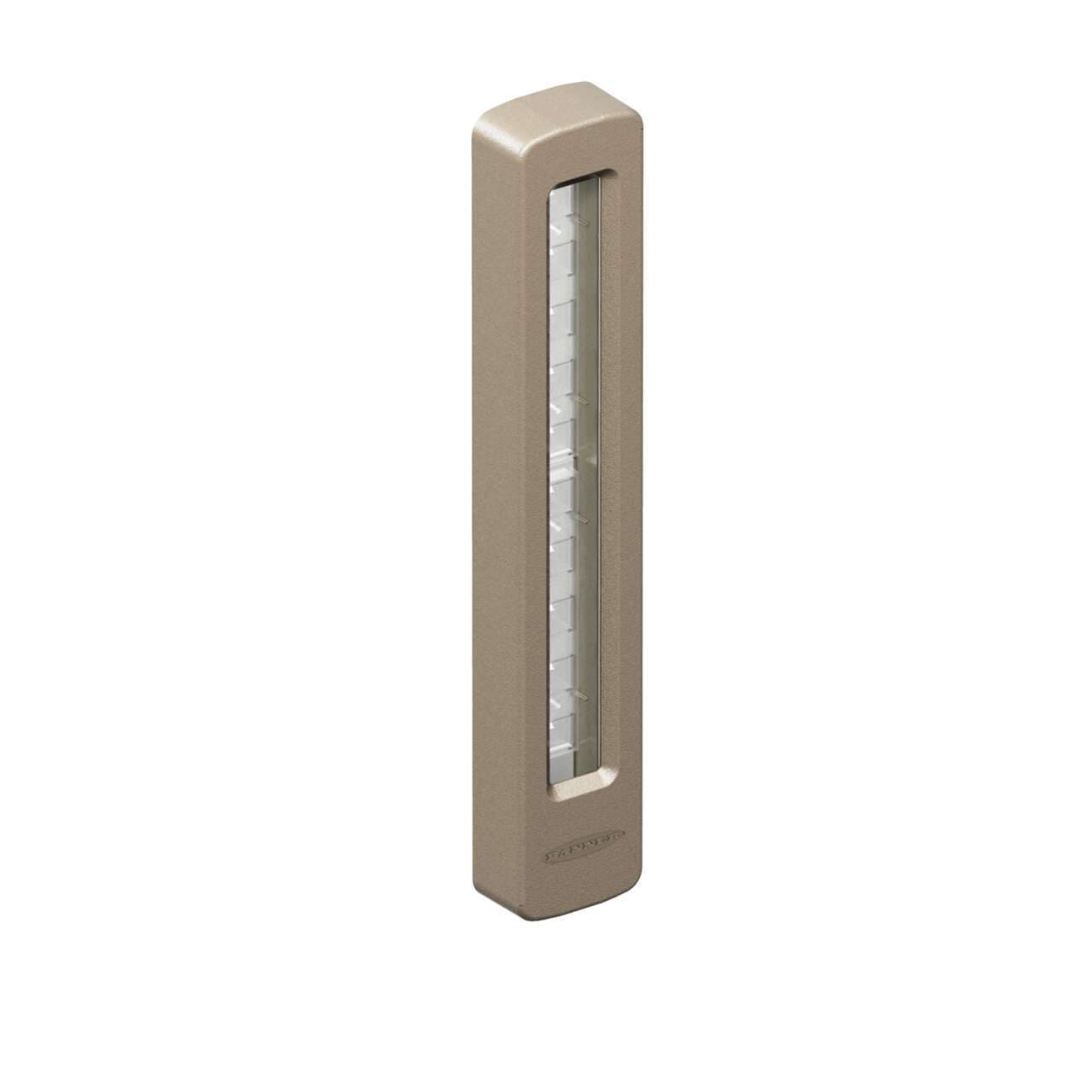

WLC60XW340ARQ Banner Light Bars
Part#:WLC60XW340ARQ
Alt. Part#:86862
Manufacturer:Banner
Category:Light Bars
Product Lifecycle:Active
Product description
WLC60 Work Light; Length: 340 mm; Nickel-Plated Aluminum; Voltage: 12-30 V dc; Environmental Rating: IP68g, IP69K; Color: White; Window: Polycarbonate; 4-pin M12 Integral QD; Rear exit
Product Details
- Weight 1020.582 g
- Country Of Origin MX
- Mounting Thread No Thread
- Connection Integral QD
- Storage Temp (°C) -40 to 70
- Primary Housing Material Nickel-Plated Aluminum
- Product Size (mm) 60
- Supply Voltage 12-30 V dc
- Feature: Chemical Resistant Yes
- Illumination Yes
- Power DC
- Color Option 1 White
- Illuminated Length (LxWxH mm) 254.6
- Feature: Hazardous Area No
- Cable Length (m) 2
- Number of Colors / Segments 1
- Animation Option 1 Solid On
- Quick Disconnect Type M12 (Euro)
- Housing Style Linear Strip
- Color 1 - Wavelength/Color Temp/Coordinates 6500K (Cool)
- Dimming Option High-Low-Off
- Max Op. Temperature (°C) 70
- Primary Window Material Polycarbonate Clear
- Power Source DC
- Color Technology Standard LED
- Number of Input Pins/Conductors 4
- Physical Dimensions (LxWxH or DxH mm) 339.9 x 60.9 x 52.3
- Feature: Audible No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Lumens Color 1 1300
- Environmental Rating IP67; IP68; IP68g; IP69
- Modbus RTU No
- Min Op. Temperature (°C) -40
- Wireless No
- Feature: Washdown Rated Yes
- Feature: Quick Disconnect Yes
- IO Link No
- Pro-Editor Compatible (Discrete) No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLC60XW340ARQ on Powermatic Associates is $405.00. Order now.
About the product
Banner Engineering WLC60XW340ARQ is a task light designed for industrial heavy-duty applications, featuring LED area lighting with 1-color Cool White (W) illumination. It operates on a supply voltage range of 12Vdc-30Vdc, with a nominal 24Vdc, and is constructed with a clear polycarbonate window and a nickel-plated aluminum housing, ensuring durability. The dimensions of this linear strip lighting are L340mm x W24.5mm. It comes pre-equipped with a 4-pin M12 Euro-style QD connector for easy connection. The WLC60XW340ARQ offers a high degree of protection with ratings of IP67, IP68, IP68G, and IP69K, making it suitable for challenging environments. It can be mounted using its base and is designed to operate within an ambient air temperature range of -40°C to +70°C. This model also includes 1 x digital input (12Vdc / 24Vdc) for color control and delivers a luminous flux of 1300 lm.
WLC60XW340ARQ Related Documents
Similar products from: Banner Light Bars
Manufacturer warranty
WLC60XW340ARQ Banner
$405.00
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$405.00
$405.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare WLC60XW340ARQ with other Light Bars products
