Powermatic Associates Logo

WLC60XWW340GAQ Banner Electronic Components

WLC60XWW340GAQ on Powermatic Associates
Banner

Part#:WLC60XWW340GAQ

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

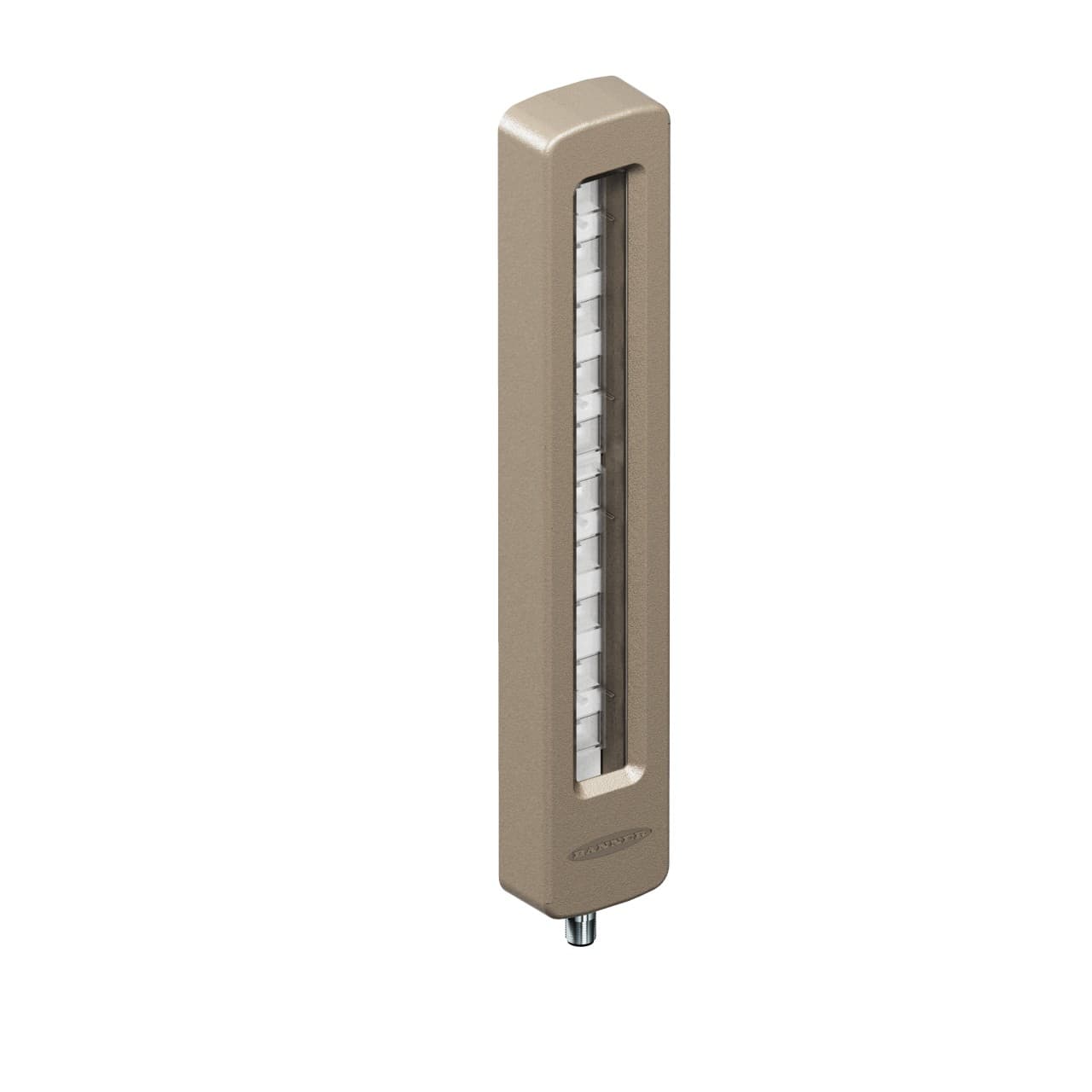

WLC60 Work Light; Length: 340 mm; Nickel Plated Aluminum, Voltage: 12-30 V dc; Environmental Rating: IP68g, IP69K, Color: Warm White; Window: Glass, Euro 4-pin Integral Connector; Side exit

Product Details

  • Power
    DC
  • Connection
    Integral QD
  • Color 1 - Wavelength/Color Temp/Coordinates
    3000K (Warm)
  • Feature: Washdown Rated
    Yes
  • Wireless
    No
  • Number of Colors / Segments
    1
  • Illuminated Length (LxWxH mm)
    254.6
  • Feature: Audible
    No
  • Mounting Thread
    No Thread
  • Number of Input Pins/Conductors
    4
  • Primary Window Material
    Glass Clear
  • Illumination
    Yes
  • Dimming Option
    High-Low-Off
  • Storage Temp (°C)
    -40 to 70
  • Power Source
    DC
  • Lumens Color 1
    1300
  • Supply Voltage
    12-30 V dc
  • Feature: Hazardous Area
    No
  • Primary Housing Material
    Nickel-Plated Aluminum
  • Color Option 1
    White
  • Environmental Rating
    IP67; IP68; IP68g; IP69
  • Feature: Chemical Resistant
    Yes
  • Product Size (mm)
    60
  • Color Technology
    Standard LED
  • Max Op. Temperature (°C)
    70
  • IO Link
    No
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Quick Disconnect Type
    M12 (Euro)
  • Min Op. Temperature (°C)
    -40
  • Modbus RTU
    No
  • Housing Style
    Linear Strip
  • Animation Option 1
    Solid On
  • Physical Dimensions (LxWxH or DxH mm)
    360.4 x 60.9 x 31.3
  • Pro-Editor Compatible (Discrete)
    No
  • Feature: Quick Disconnect
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLC60XWW340GAQ Related Documents

WLC60 Heavy Duty LED Lights -- Datasheet-1630953780746.pdfWLC60X_340_Q-1630953780738.pdfWLC60X_340_Q-1630953780744.stp
