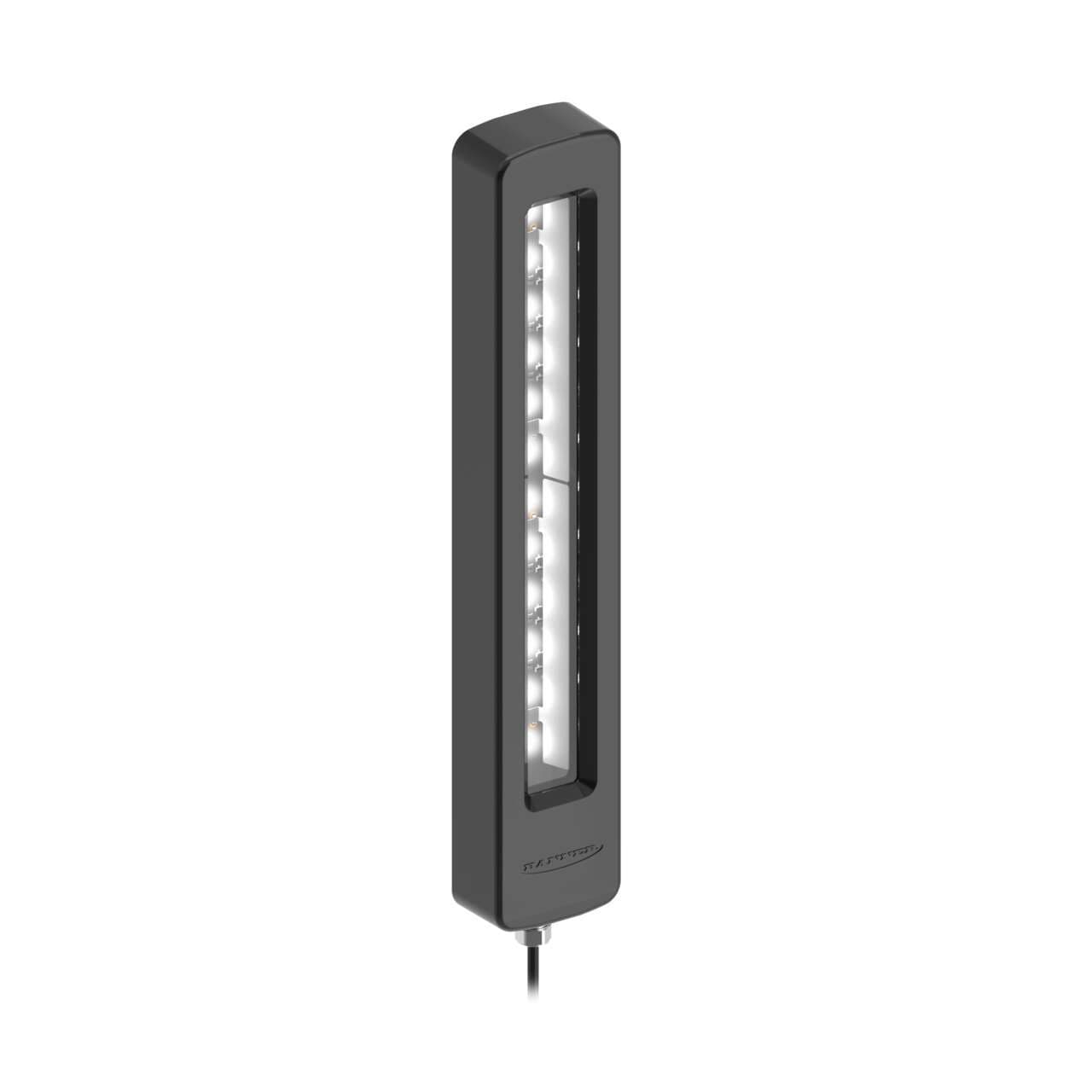

WLH60XW340B Banner Light Bars

WLH60XW340B on Powermatic Associates
Banner
  • WLH60XW340B
  • WLH60XW340B

Part#:WLH60XW340B

Alt. Part#:804112

Manufacturer:Banner

Category:Light Bars

Product Lifecycle:Active

Product description

WLH60 High Temperature Light; Length: 340 mm; Black E-Coated Aluminum; Voltage: 24 V dc; Environmental Rating: IP68g, IP69K; Color: White; Window: Polycarbonate; 2 m (6.5 ft) Integral Cable; Side exit

Product Details

  • Weight
    1023.530348 g
  • Country Of Origin
    MX
  • Wireless
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Modbus RTU
    No
  • IO Link
    No
  • Feature: Quick Disconnect
    No
  • Feature: Chemical Resistant
    Yes
  • Feature: Washdown Rated
    Yes
  • Feature: Audible
    No
  • Min Op. Temperature (°C)
    -40
  • Illumination Switch Function
    O=OFF; I=ON
  • Primary Window Material
    Polycarbonate Clear
  • Primary Housing Color
    Black
  • Physical Dimensions (LxWxH or DxH mm)
    339.9 x 60.9 x 31.3
  • Max Op. Temperature (°C)
    100
  • Storage Temp (°C)
    -40 to 70
  • Max Current Color (mA)
    1050
  • Environmental Rating
    IP67; IP68; IP68g; IP69
  • Supply Voltage
    21-28 V dc
  • Number of Input Pins/Conductors
    3
  • Dimming Option
    High-Low-Off
  • Connection
    Cable
  • Color Option 1
    White
  • Animation Option 1
    Solid On
  • Color Technology
    Standard LED
  • Primary Housing Material
    Black E-coated Aluminum Housing
  • Illumination
    Yes
  • Housing Style
    Linear Strip
  • Cable Length (m)
    2
  • Mounting Thread
    No Thread
  • Number of Colors / Segments
    1
  • Product Size (mm)
    60
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Power Source
    DC
  • Feature: Hazardous Area
    No
  • Illuminated Length (LxWxH mm)
    254.7
  • Color 1 - Wavelength/Color Temp/Coordinates
    6500K (Cool)
  • Lumens Color 1
    1150
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLH60XW340B on Powermatic Associates is $602.00. Order now.

About the product

Banner Engineering WLH60XW340B is an industrial LED area task light designed for high-temperature environments. It features 1-color Cool White (W) LED illumination behind a clear polycarbonate (PC) window within an aluminium housing. This linear strip lighting operates on a supply voltage of 21Vdc-28Vdc, with a nominal 24Vdc, and has dimensions of L340mm x W60mm. It is pre-wired with a 2m / 6.5ft 3-wire cable terminated with bare end flying leads for connectivity. The WLH60XW340B offers a degree of protection rated at IP67, IP68, IP68G, and IP69K, making it suitable for surface or wall mounting in demanding conditions. It can operate within an ambient air temperature range of -40°C to +100°C and includes 1 x digital input (24Vdc) for color control. The current consumption of this task light is 1.05A.
