Part#:WLH60XW640GB

Alt. Part#:804113

Manufacturer:Banner

Category:Light Bars

Product Lifecycle:Active

Product description

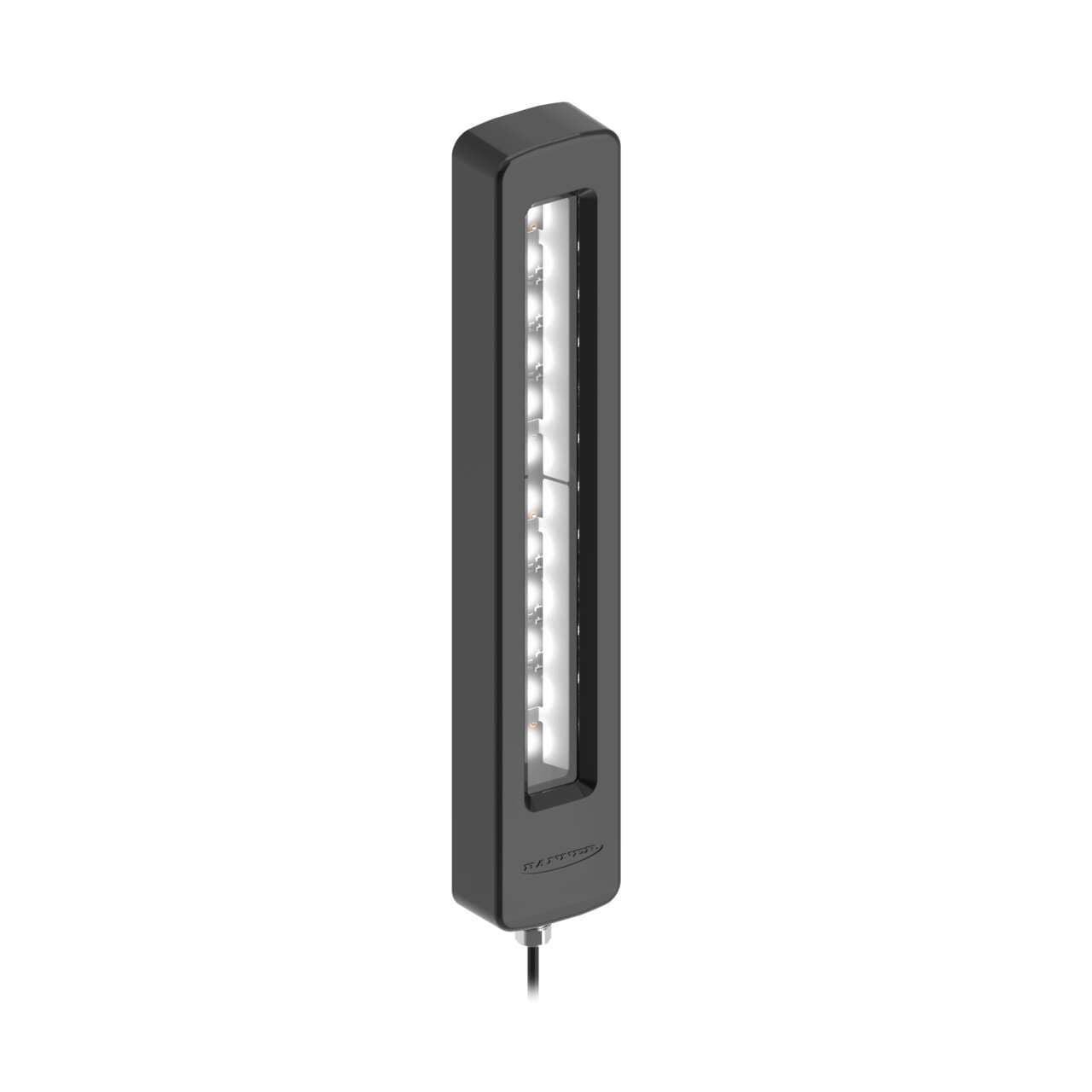

WLH60 High Temperature Light; Length: 640 mm; Black E-Coated Aluminum; Voltage: 24 V dc; Environmental Rating: IP68g, IP69K; Color: White; Window: Glass; 2 m (6.5 ft) Integral Cable; Side exit

Product Details

  • Weight
    1853.830504 g
  • Country Of Origin
    MX
  • Housing Style
    Linear Strip
  • Number of Input Pins/Conductors
    3
  • Max Op. Temperature (°C)
    100
  • Feature: Hazardous Area
    No
  • Illumination
    Yes
  • Animation Option 1
    Solid On
  • Environmental Rating
    IP67; IP68; IP68g; IP69
  • Feature: Washdown Rated
    Yes
  • Power
    DC
  • Color Technology
    Standard LED
  • Min Op. Temperature (°C)
    -40
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Color Option 1
    White
  • Storage Temp (°C)
    -40 to 70
  • IO Link
    No
  • Primary Housing Material
    Black E-coated Aluminum Housing
  • Connection
    Cable
  • Illuminated Length (LxWxH mm)
    517.7
  • Pro-Editor Compatible (Discrete)
    No
  • Power Source
    DC
  • Max Current Color (mA)
    2100
  • Supply Voltage
    21-28 V dc
  • Feature: Audible
    No
  • Mounting Thread
    No Thread
  • Color 1 - Wavelength/Color Temp/Coordinates
    6500K (Cool)
  • Physical Dimensions (LxWxH or DxH mm)
    638.9 x 60.9 x 31.3
  • Feature: Chemical Resistant
    Yes
  • Product Size (mm)
    60
  • Dimming Option
    High-Low-Off
  • Primary Housing Color
    Black
  • Feature: Quick Disconnect
    No
  • Number of Colors / Segments
    1
  • Lumens Color 1
    2300
  • Illumination Switch Function
    O=OFF; I=ON
  • Primary Window Material
    Glass Clear
  • Wireless
    No
  • Modbus RTU
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLH60XW640GB on Powermatic Associates is $948.00. Order now.

About the product

Banner Engineering WLH60XW640GB is a task light designed for industrial applications, featuring a 1-color Cool White (W) LED illumination through a clear glass window suitable for high-temperature areas. It operates on a supply voltage of 21Vdc to 28Vdc, with a nominal voltage of 24Vdc, and has dimensions of L640mm x W60mm. The housing is made of aluminium, ensuring durability, and it comes pre-wired with a 2m / 6.5ft 3-wire cable terminated with bare end flying leads for easy installation. This linear strip lighting is designed for surface or wall mounting and offers a high degree of protection with ratings of IP67, IP68, IP68G, and IP69K, making it suitable for use in environments requiring high levels of dust and water resistance. It can operate in ambient air temperatures ranging from -40°C to +100°C. Additionally, it features 1 x digital input (24Vdc) for color control and has a current consumption of 2.1A.
