WLS15CDW0500DSQP Banner Pick-to-Light Sensors
Part#:WLS15CDW0500DSQP
Alt. Part#:802009
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description

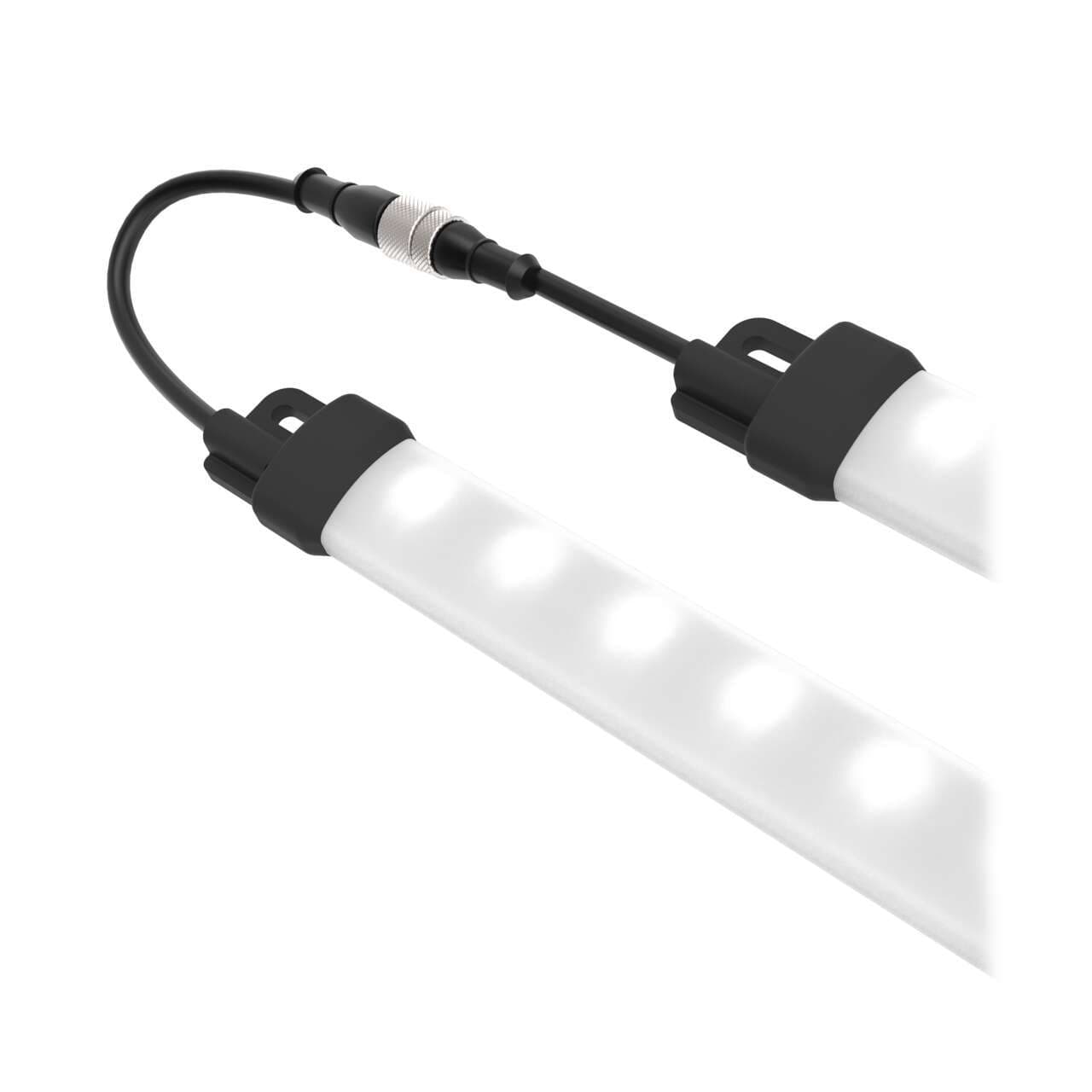

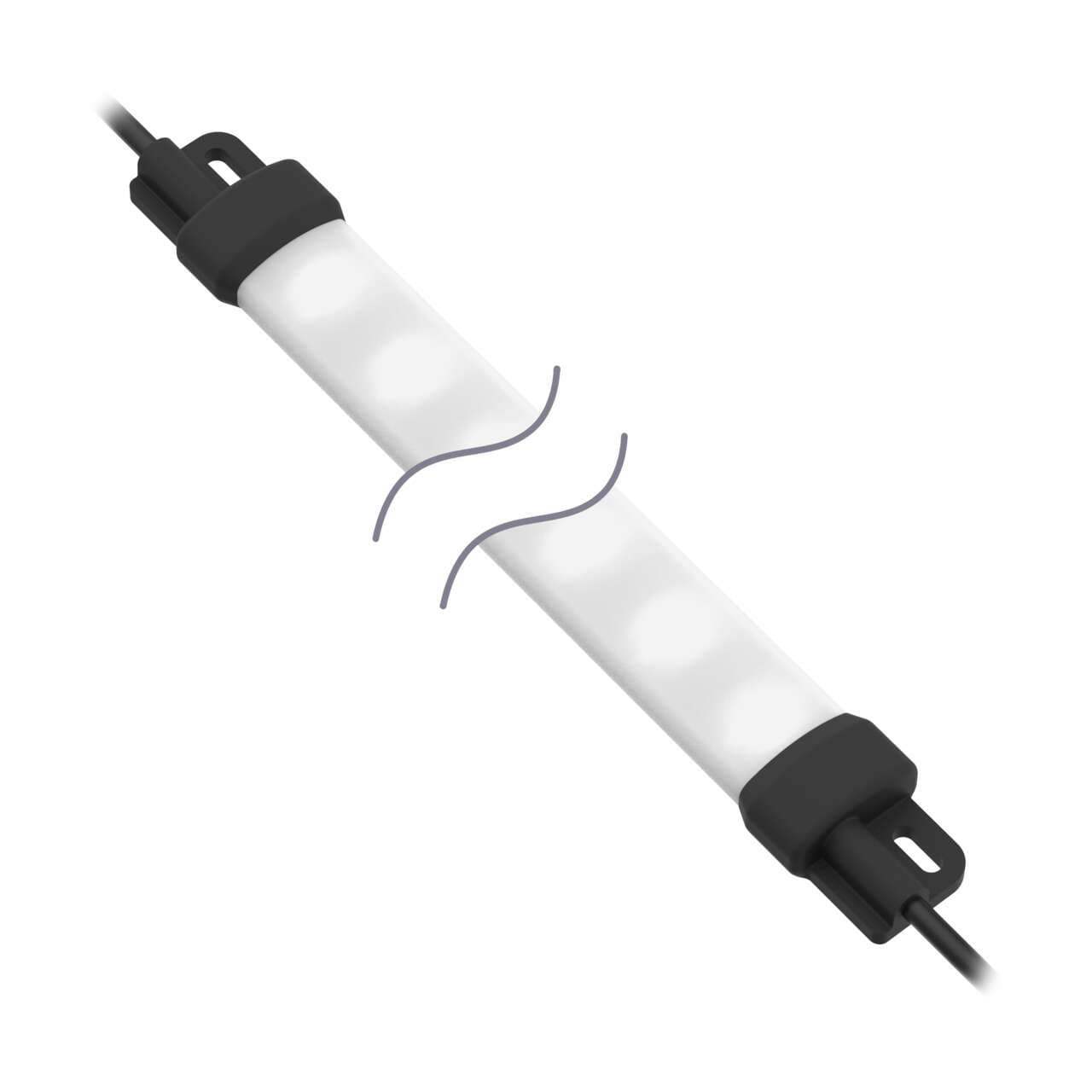

WLS15 Work Light Strip; Diffused Window; Length: 500 mm; Voltage: 12 or 24 V dc; Environmental Rating: IP66,67; Color: Daylight White; Cascadable; 150 mm (6 in) 4-pin M12 PVC Pigtail QD
Product Details
- Weight 158.7572 g
- Country Of Origin MX
- Primary Housing Material Polycarbonate
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Primary Window Material Polycarbonate Diffused
- Modbus RTU No
- Quick Disconnect Type M12 (Euro)
- Feature: Chemical Resistant No
- Lumens Color 1 525
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Max Op. Temperature (°C) 60
- Number of Colors / Segments 1
- Color Technology Standard LED
- Supply Voltage 12/24 V dc
- IO Link No
- Illumination Yes
- Dimming Option PWM
- Storage Temp (°C) -40 to 70
- Mounting Thread No Thread
- Max Current Color (mA) 720
- Min Op. Temperature (°C) -40
- Wireless No
- Housing Style Linear Strip
- Number of Input Pins/Conductors 4
- Secondary Material Polyamide
- Cable Length (m) 0.15
- Color Option 1 White
- Environmental Rating IP66; IP67
- Feature: Hazardous Area No
- Product Size (mm) 15
- Power Source DC
- Illuminated Length (LxWxH mm) 426.4
- Feature: Audible No
- Power DC
- Connection Pigtail QD
- Physical Dimensions (LxWxH or DxH mm) 500.0 x 30.6 x 15.5
- Feature: Cascade Yes
- Pro-Editor Compatible (Discrete) No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLS15CDW0500DSQP on Powermatic Associates is $118.00. Order now.
About the product
Banner Engineering WLS15CDW0500DSQP is a task light designed for industrial applications, featuring a cascading, sealed, low power LED light strip/bar with diffused window 1-color Daylight White (DW) LED illumination. It operates on a supply voltage of 12Vdc or 24Vdc and measures L500mm x W15mm. The construction includes a polycarbonate (PC) diffused window and a polycarbonate (PC) base, ensuring durability. It is pre-wired with a 6" / 15cm pigtail that terminates with a 4-pin M12 Euro-style quick disconnect (QD) connector, facilitating easy installation. The linear light strip is designed to withstand harsh conditions, boasting a degree of protection rated at IP66 and IP67. It can operate in ambient air temperatures ranging from -40°C to +60°C. The light strip includes 1 x digital input (12Vdc / 24Vdc) for color control, consumes 720mA of current, and provides a luminous flux of 525 lumens.
