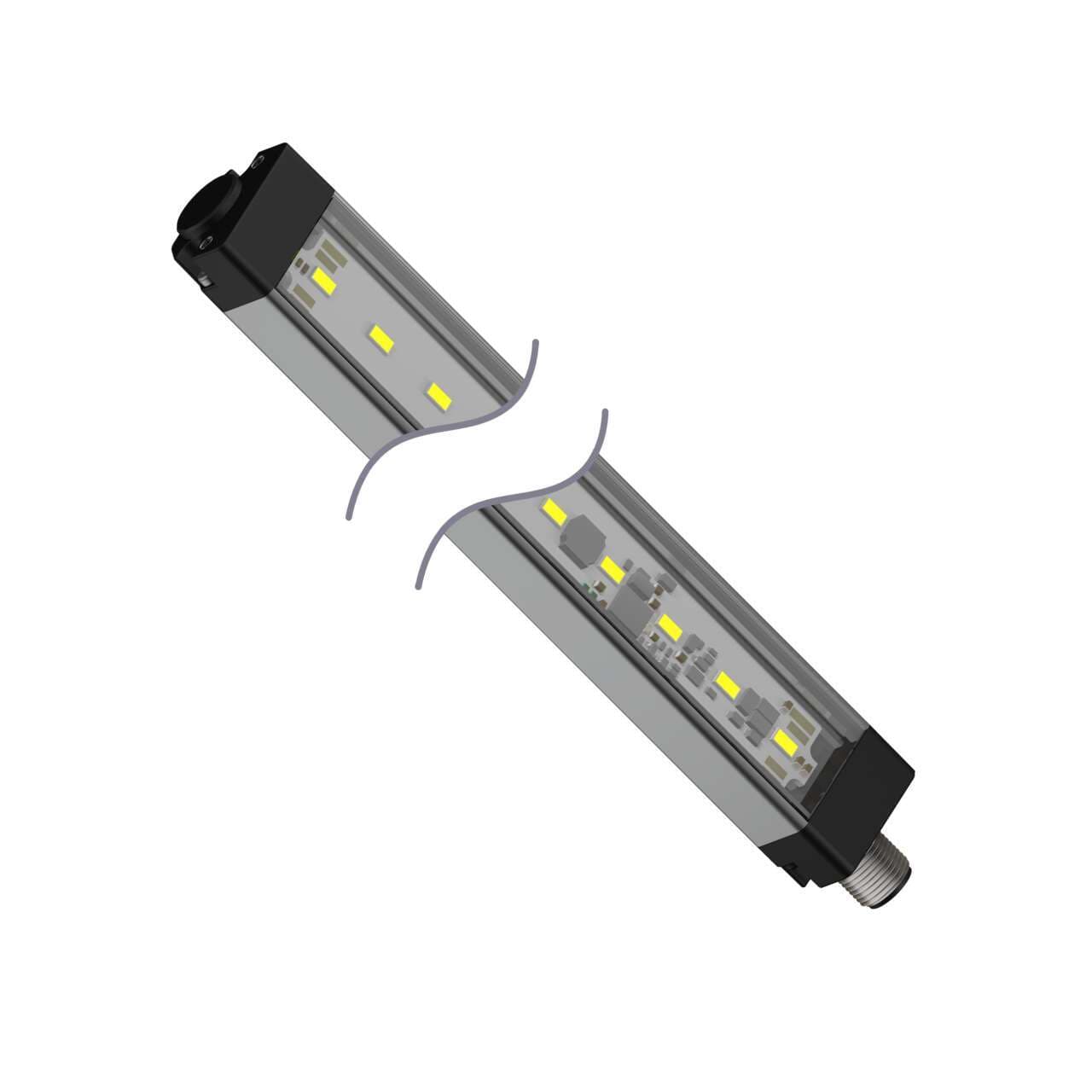

WLS28-2XWW570DXQ Banner Light Bars
Part#:WLS28-2XWW570DXQ
Alt. Part#:94180
Manufacturer:Banner
Category:Light Bars
Product Lifecycle:Active
Product description
WLS28-2 Work Light Strip; Diffuse Window; Length: 570 mm; Voltage: 12-30 V dc; Environmental Rating: IP50; Color: Warm White; 4-pin M12 Integral QD
Product Details
- Weight 635.0288 g
- Country Of Origin MX
- Pro-Editor Compatible (Discrete) No
- Wireless No
- Modbus RTU No
- IO Link No
- Feature: Chemical Resistant No
- Feature: Audible No
- Feature: Hazardous Area No
- Primary Window Material Polycarbonate Diffused
- Storage Temp (°C) -40 to 70
- Supply Voltage 12-30 V dc
- Min Op. Temperature (°C) -40
- Max Op. Temperature (°C) 70
- Dimming Option High-Low-Off
- Illuminated Length (LxWxH mm) 570.0
- Environmental Rating IP50
- Physical Dimensions (LxWxH or DxH mm) 609.0 x 28.0 x 20.9
- Color 1 - Wavelength/Color Temp/Coordinates 3000K (Warm)
- Quick Disconnect Type M12 (Euro)
- Number of Input Pins/Conductors 4
- Connection Integral QD
- Lumens Color 1 1200
- Animation Option 1 Solid On
- Color Option 1 White
- Color Technology Standard LED
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Product Size (mm) 28
- Mounting Thread No Thread
- Number of Colors / Segments 1
- Illumination Yes
- Primary Housing Material Aluminum
- Housing Style Linear Strip
- Power Source DC
- Power DC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLS28-2XWW570DXQ on Powermatic Associates is $296.00. Order now.
About the product
Banner Engineering WLS28-2XWW570DXQ is a task light designed as an LED industrial strip light/bar featuring a diffused plastic window for 1-color Warm White (WW) LED illumination. It operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of this product are L570mm x W28mm, constructed with a polycarbonate (PC) window and an aluminium housing. It is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. This linear light strip has an IP50 degree of protection, suitable for surface or wall mounting. It can operate in ambient air temperatures ranging from -40°C to +70°C and includes 1 x digital input (12-30Vdc) for color control.
