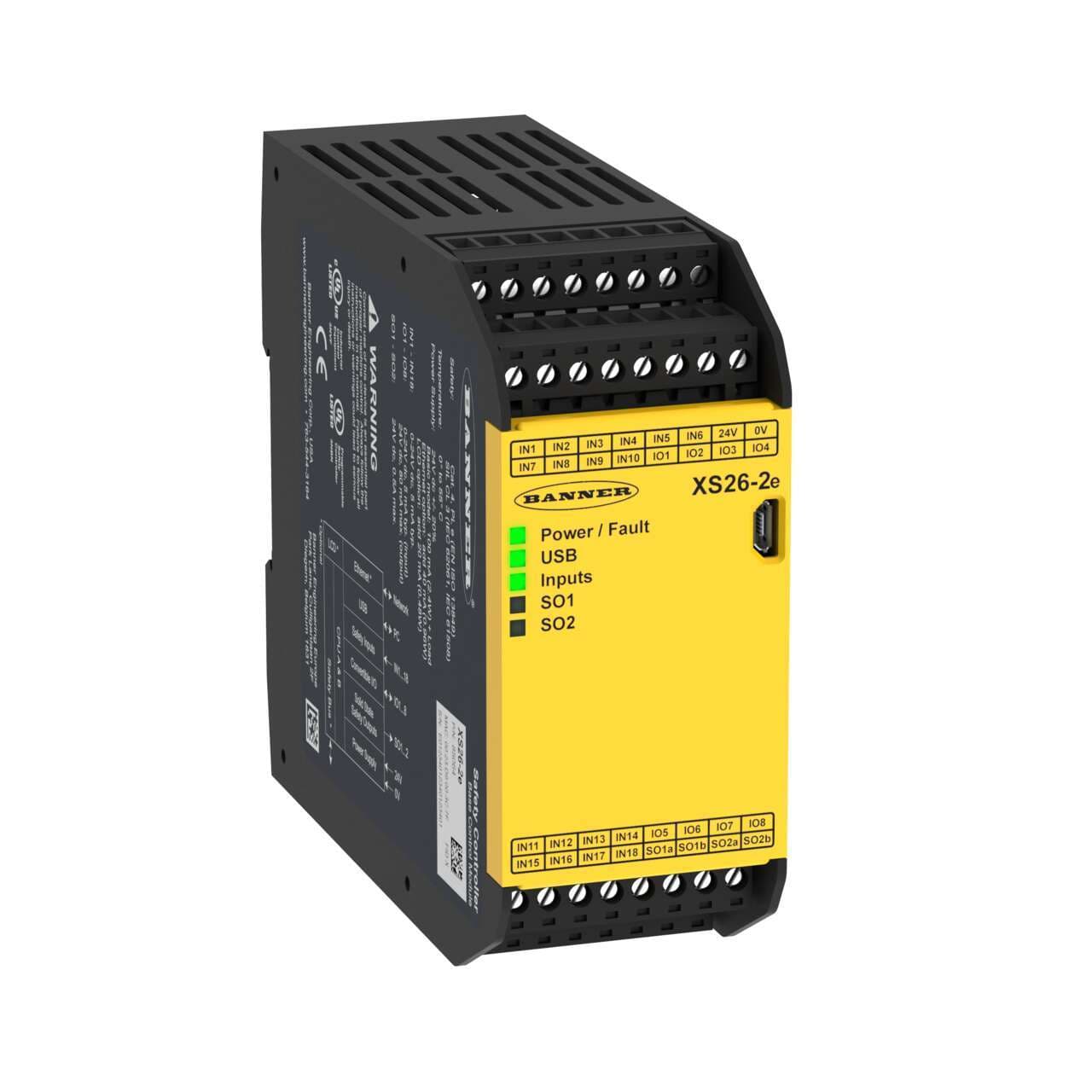

XS26-2E Banner Safety Relays

Product Details

• Weight
  263.08336 g
• Country Of Origin
  US
• Dimension (H x W x D in mm)
  110 x 45 x 129
• Number of Convertible Inputs
  8
• Supply Voltage
  24 V dc +/- 20%
• Safety Category Rating
  4
• Two-Hand Controls
  Yes
• Modbus/TCP
  Yes
• Independently Controlled Safe Outputs
  4
• Device Type
  Safety Controller
• Removable Terminals
  Yes
• Safety Input - Single Channel
  5-50 mA @ 24 V dc
• Light Curtains/Scanner without EDM Input
  Yes
• Power
  DC
• Input Configuration
  Configurable
• Non Safe Output Configuration
  Up to 11 PNP
• IP Rating
  IP20
• Input Resistance
  150 Ω max. per lead
• EtherNet/IP
  Yes
• Max Operating Temperature ( °C)
  55
Safety Input - Dual Channel (Solid-State)
50 mA @ 15 - 30 V dc
Response Time (ms)
See Software Configuration Summary
THC Rating
IIIC
Gate Switch (NC/NO) Input
Yes
Relative Humidity
90% @ 50° C
Terminal Type
Screw
Safety Input - Dual Channel (Dry Contact)
5-50 mA @ 24 V dc
E-Stops/Rope Pulls
Yes
Motor Speed
No
PCCC
Yes
EPLAN Cabinet Installable
Yes
Input Operation
Simultaneous or Concurrent
Output Configuration
2 OSSD Pairs
Splittable Safe Output
Yes
SISTEMA
PFHd = 1.05 x 10-9
Light Curtains/Scanner with EDM Input
Yes
Number of Safe Inputs
26
Safety Module Type
Base Controller
Non Safe Output Rating
80 mA @ 24 V dc (individual) max for IOx; overcurrent protected, 500 mA @ 24 V dc for Sox
PL Rating
e
LCD Display
No
Safety Input - Reset
5-50 mA @ 24 V dc
Power Consumption
0.14 A (controller only); 3.6 A (bus load)
SIL Rating
3
Muting
Yes
PROFINET
Yes
Expandable
Yes
Safe Output Rating
OSSD 0.50 A max. @ 24 V dc
Vibration
9-150 Hz at 1g occasional/0.5g continuous
Safety Mat
Yes
Gate Switch (OSSD) Input
Yes
Common Ethernet Protocol
No
In-Series Diagnostics
No
Gate Switch (NC/NC) Input
Yes
Recovery Time
250 (typical), 400 (max)
