1709-BOX Eaton Industrial Automation Components

Name: 1709-BOX
Brand: Eaton

Part#:1709-BOX

Manufacturer:Eaton

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

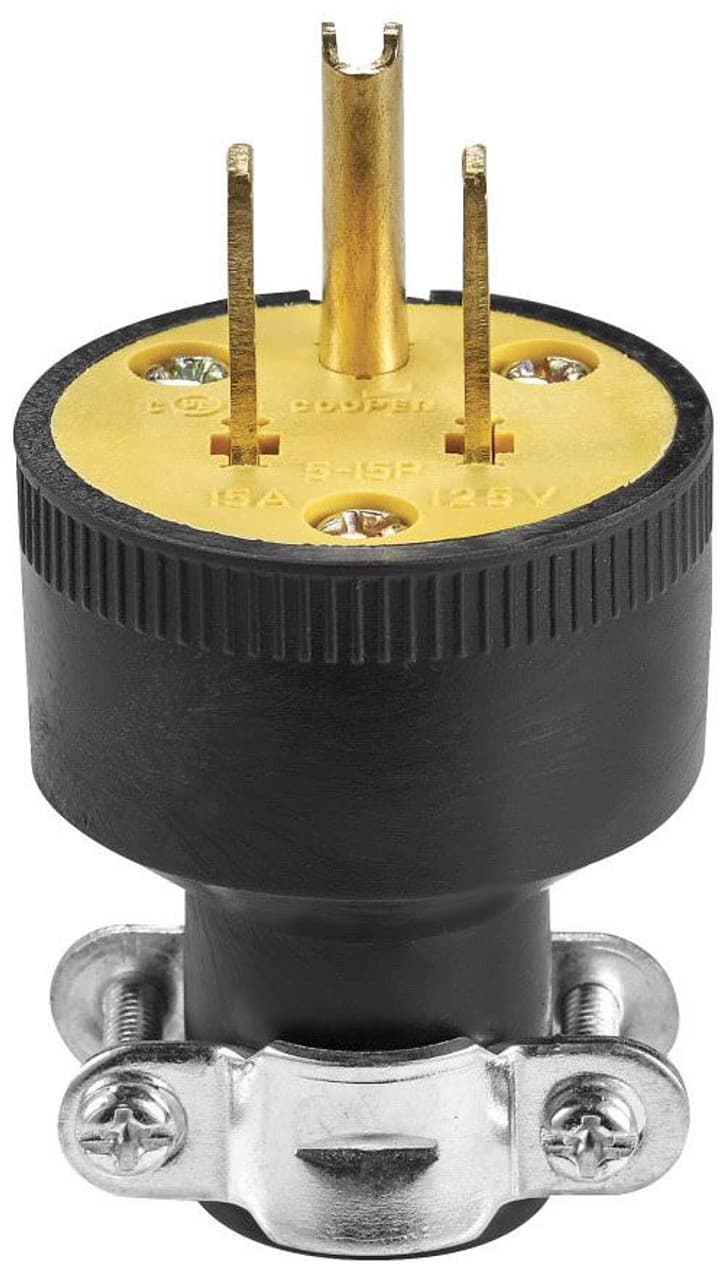

1709-BOX Eaton - Eaton straight blade plug , #18-10 AWG, 15A, Commercial, 125V, Back wire, Black, Brass, Thermoplastic, 5-15P, Two-pole, three-wire, grounding, Screw, Thermoplastic rubber, ED Box

Product Details

Product Length/Depth
3 in
Allowable wire size
#18-10 AWG
Connection type
Screw
Product Name
Eaton straight blade plug
Certifications
cULus Listed NOM Federal Specification Classification 6221 02 UL
Device grade
Commercial
Packaging type
ED Box
Product Height
1.5 in
Amperage Rating
15 A
Voltage rating
125V
Catalog Number
1709-BOX
Face/body material
Thermoplastic
Application
Commercial
Product Width
1.5 in
Receptacle type
Two-pole, three-wire, grounding
UPC
032664480706
Device type
Plug
Design type
Straight blade
Number Of Poles
Two-pole
Number of wires
3

Warranty

Refer to warranty document.

Wiring method

Back wire

Style type

Straight body

Product Weight

.139 lb

Contact material

Brass

Compliances

RoHS Compliant

Color

Black

NEMA configuration

5-15P

Type:

Heavy Duty

Poles:

Material:

Thermoplastic Rubber

Number of Wires:

Approval:

UL (Canada and US)

Amps:

32 A

Shipping Width:

2.00 In.

Configuration:

NEMA 5-15

Color:

Black

Shipping Weight:

0.15

Cord Size:

0.25 to 0.6 Inch

Shipping Height:

2.00 In.

UPC:

032664480706

Ground Type:

Grounding

Shipping Length:

3.00 In.

Grade:

Commercial

Volts:

125 VAC

Type

Rubber Plug

Height

1.5 inches

Material

Thermoplastic Rubber

Number of Poles

Length

3 inches

Amperage

15 amperes

Weight

.139 pounds

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

1709-BOX Related Documents

Catalog.pdf
