BRP115AF Eaton Industrial Automation Components

BRP115AF on Powermatic Associates
Eaton

Part#:BRP115AF

Manufacturer:Eaton

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

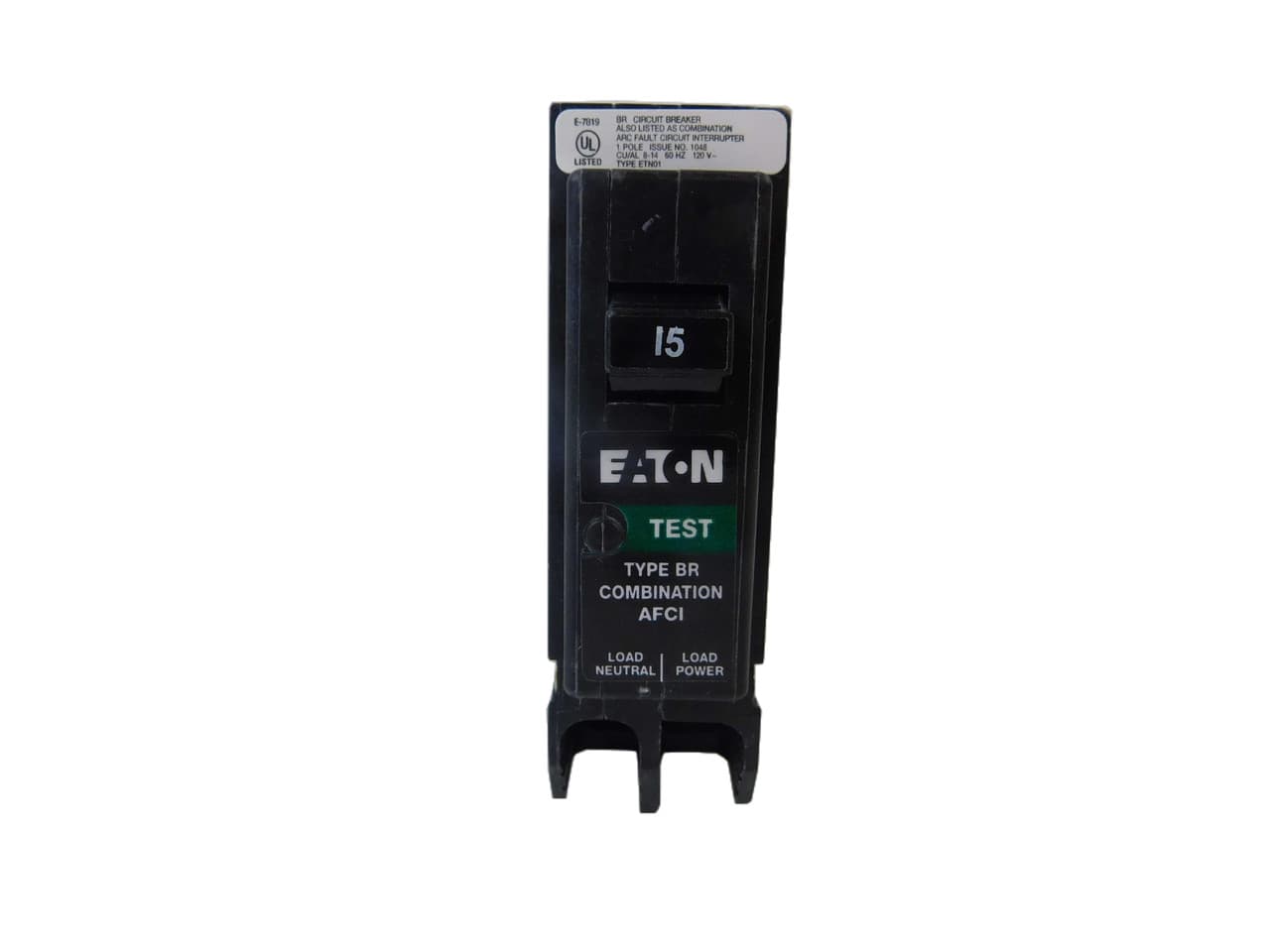

BRP115AF Eaton - Eaton BR AFCI circuit breaker, AFCI Combination circuit breaker, UL only, 15 A, 10 kAIC, Single-pole, 120 V, BR, Plug-on, #14-8 AWG Cu/Al, Type BR Loadcenters, Plug-on neutral

Product Details

  • Type
    AFCI Combination Circuit Breaker
  • Height
    1.1 inches
  • Connection Type
    Plug-on
  • Amperage
    15 amperes
  • Interrupt Rating
    10 kiloamps
  • Length
    2.56 inches
  • Weight
    .38 pounds
  • Voltage
    120 volts
  • Wire Size:
    14 to 8 AWG (Copper/Aluminum)
  • Shipping Width:
    7.00 In.
  • Volts:
    120 VAC
  • Type:
    Service Equipment
  • Interrupting Rating:
    10 Kiloamp
  • Shipping Length:
    4.00 In.
  • Terminal Type:
    Plug-On
  • Shipping Weight:
    0.45 lbs.
  • Application:
    BR Load Center
  • UPC:
    786689041014
  • Enclosure:
    Indoor/Outdoor
  • Approval:
    UL
  • Size:
    1 Inch Width x 2.56 Inch Depth x 1.1 Inch Height
  • Amps:
    32 A
  • Poles:
    1
  • Shipping Height:
    2.00 In.
  • TS PIK:
    127414228

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

BRP115AF Related Documents

Catalog.pdfCADDrawing.pdf
