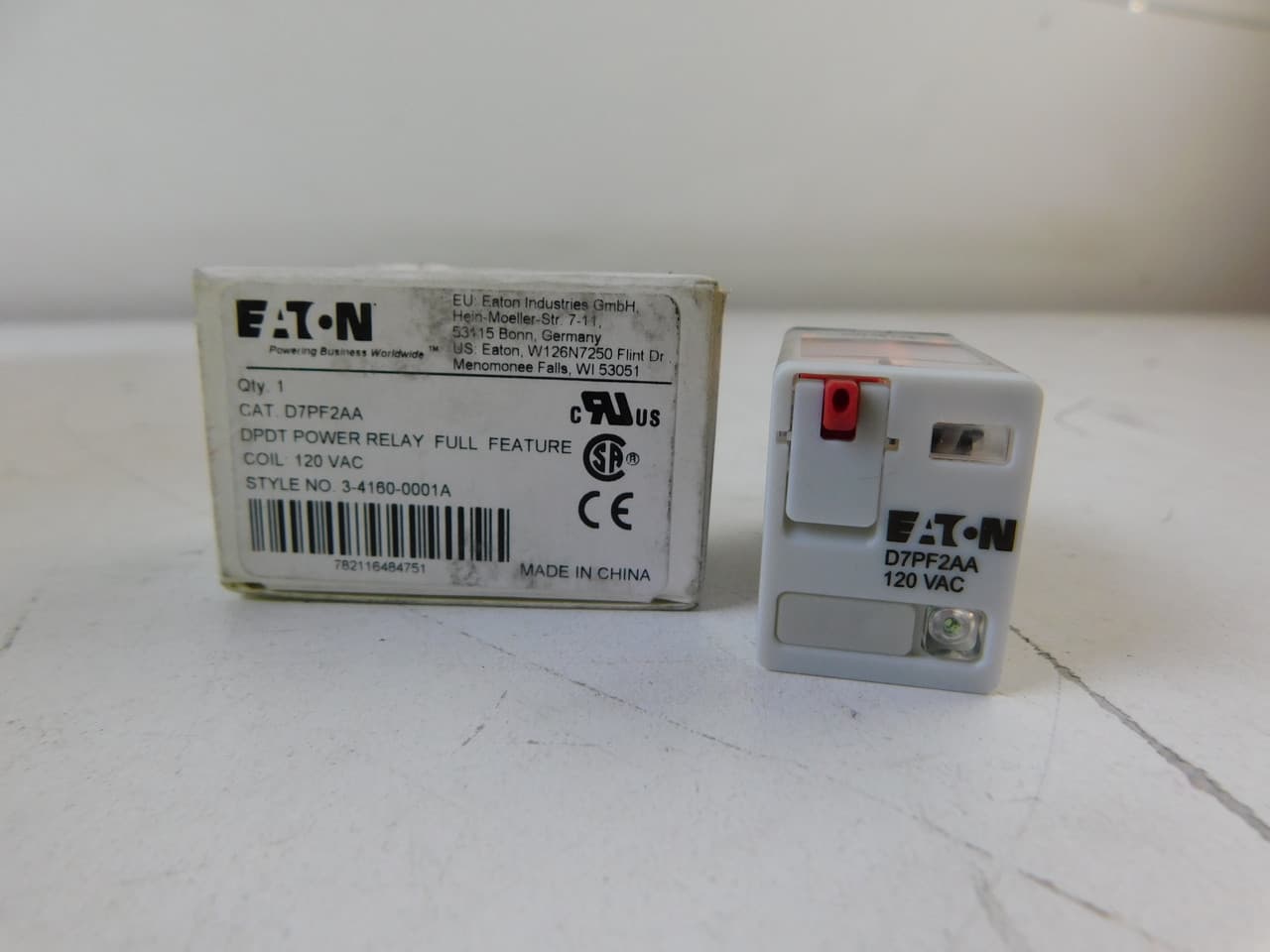

D7PF2AA Eaton Industrial Automation Components

Name: D7PF2AA
Brand: Eaton

Part#:D7PF2AA

Manufacturer:Eaton

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

D7PF2AA Eaton - D7 Series General Purpose Plug-In Relay, Full featured cover, 120V coil, 4430 Ohms resistance, Plug-in terminal, DPDT contact configuration, 15A contact rating, Silver alloy contacts, IP40 enclosure

Product Details

Approval:
UL (Canada and Us)
Mounting:
DIN Rail/Panel
Series:
D7PF
Amps:
32 A
Shipping Weight:
0.10 lbs.
Contact Voltage Rating:
300 Volt
Shipping Width:
2.00 In.
Coil Voltage:
120 Volt AC
Shipping Length:
3.00 In.
UPC:
782116484751
Contact Configuration:
DPDT
Shipping Height:
2.00 In.
Type:
AC Operated
Contact Current Rating:
15 Amp
Weight
.11 pounds
Length
1.54 inches
Terminal Type
Plug-In
IP Rating
IP40
Coil Voltage
120 volts
Height
.83 inches

Contact Configuration

DPDT

Type

General-purpose Relay

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

D7PF2AA Related Documents

CADDrawing.pdf Catalog.pdf
