E2LE34002W Eaton Industrial Automation Components

E2LE34002W on Powermatic Associates
Eaton

Part#:E2LE34002W

Manufacturer:Eaton

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

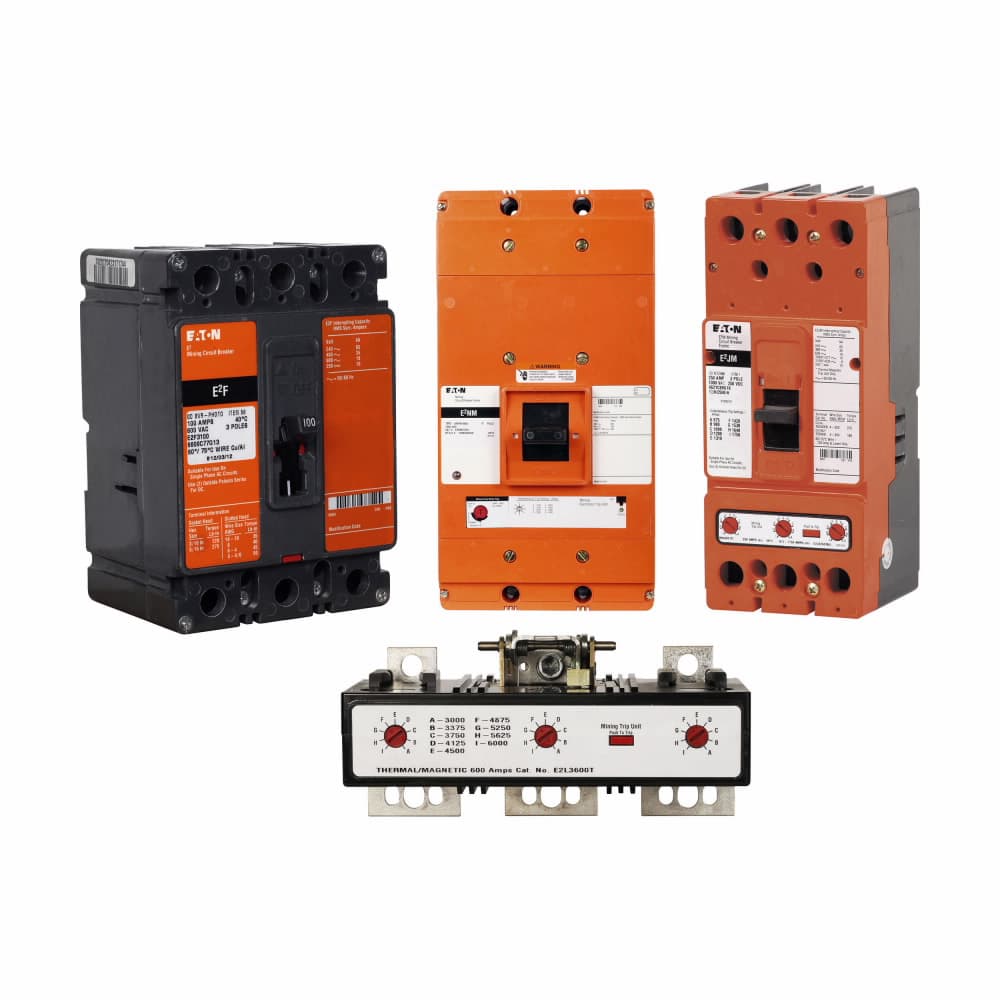

E2LE34002W Eaton - Eaton E2 mining complete molded case circuit breaker, L-frame, E2LE, Complete breaker, Interchangeable thermal-magnetic trip, 1000-4000A trip rating, Three-pole, 400A, 600 Vac, 250 Vdc, Without terminals, Mining

Product Details

  • Catalog Number
    E2LE34002W
  • Frame
    L
  • Circuit breaker frame type
    Complete breaker
  • Certifications
    CSA Certified UL Listed
  • Circuit breaker type
    E2LE
  • UPC
    782114208731
  • Amperage Rating
    400 A
  • Terminals
    Without terminals
  • Product Length/Depth
    4.06 in
  • Interrupt rating
    22 kAIC at 250 Vdc 25 kAIC at 600 Vac 65 kAIC at 240 Vac 35 kAIC at 480 Vac
  • Voltage rating
    600 Vac, 250 Vdc
  • Product Name
    Eaton E2 mining complete molded case circuit breaker
  • Product Height
    8.25 in
  • Class
    Mining
  • Warranty
    Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
  • Trip rating
    1000-4000 A
  • Product Width
    8.25 in
  • Number of poles
    Three-pole
  • Magnetic trip range
    1000-4000A
  • Product Weight
    20 lb
  • Type
    Complete, Specialty
  • Weight
    20 pounds
  • Width
    8.25 inches
  • Trip Type
    Interchangeable, Thermal Magnetic
  • Length
    4.06 inches
  • Terminal Type
    Without Terminals
  • Interrupt Rating
    22 kiloamps, 250 volts
  • Amperage
    400 amperes
  • Height
    8.25 inches

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
