NGC312039B22ZGM Eaton Industrial Automation Components

NGC312039B22ZGM on Powermatic Associates
Eaton

Part#:NGC312039B22ZGM

Manufacturer:Eaton

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

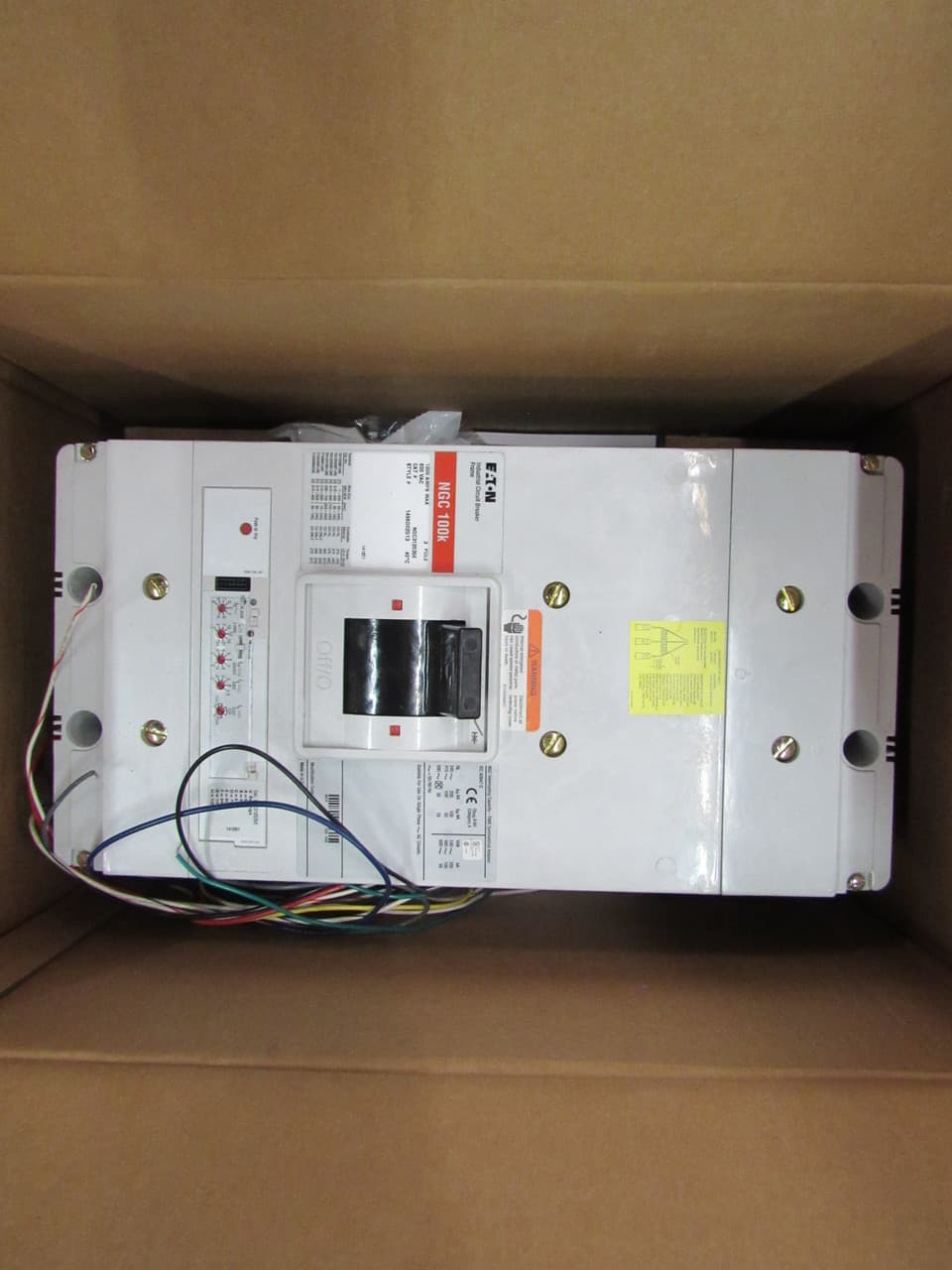

NGC312039B22ZGM Eaton - Eaton Series G molded case circuit breaker, NG-frame, NG, Complete breaker, ALSIG w/ maint. mode trip, Three-pole, 1200A, 480 Vac, Line/load, 200 kAIC at 240 Vac, 100 kAIC at 480 Vac, GF alarm, Zone selective interlock, 80% rated

Product Details

  • Trip Type
    Electronic ALSIG With Maintenance Mode
  • Frame
    NG
  • Amperage
    1200 amperes
  • Height
    9 inches
  • Enclosure Material
    Stainless Steel
  • Terminal Type
    Line And Load
  • Voltage
    480 volts
  • Length
    6 inches
  • Weight
    48 pounds

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
