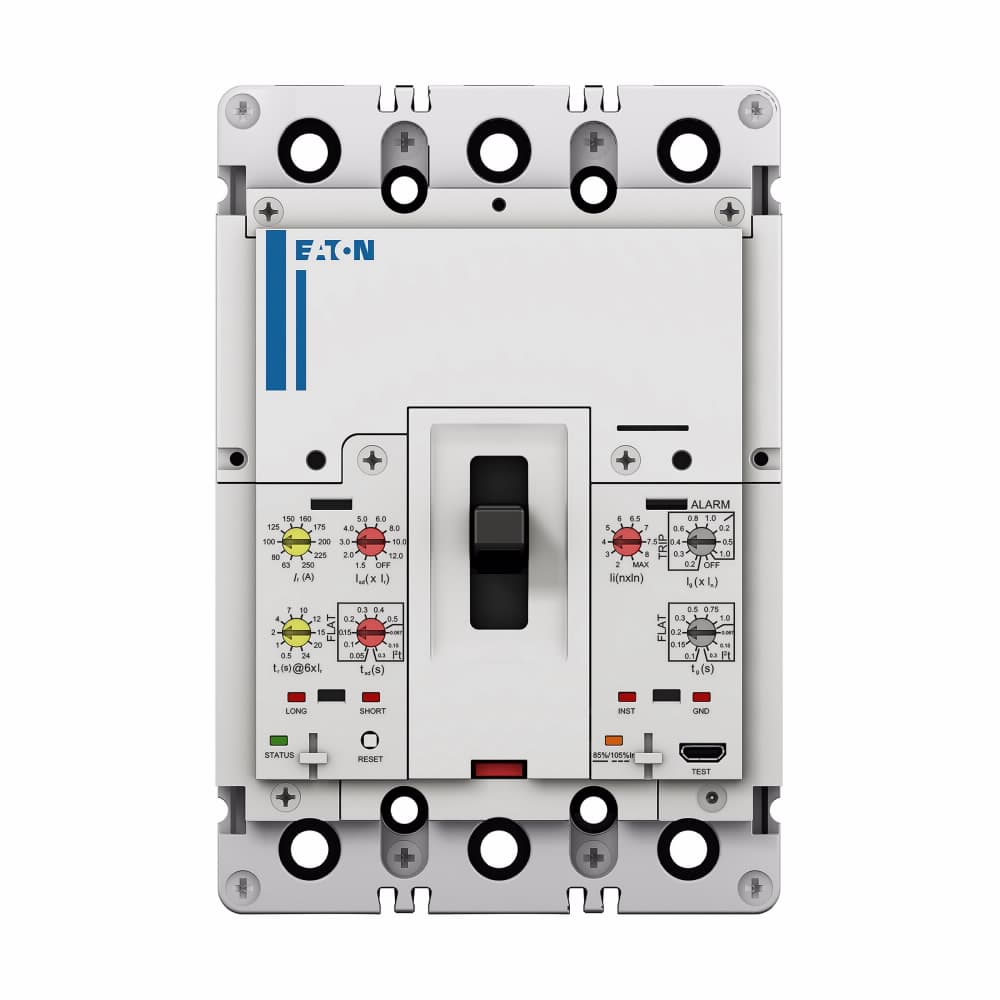

PDG24K0100E2WN Eaton Molded Case Circuit Breakers (MCCB)
Part#:PDG24K0100E2WN
Manufacturer:Eaton
Category:Molded Case Circuit Breakers (MCCB)
Product Lifecycle:Active
Product description
Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 2, Four Pole (100% N), 100A, 50kA/480V, PXR20 LSI w/ Modbus RTU, ZSI and Relays, No Terminals
Product Details
- Product Length/Depth 88.9 mm
- Frame 2
- Protection 100% neutral protection
- Product Height 152.4 mm
- Circuit breaker type PD2 Global
- Certifications CCC Marked IEC 60947-2 UL 489 CSA
- Number of poles Four-pole (100% N)
- Catalog Number PDG24K0100E2WN
- Trip rating 100 A
- Class Class A
- Product Width 139.5 mm
- Voltage rating - max 600 V
- Product Name Eaton Power Defense molded case circuit breaker
- Interrupt rating 50 kAIC at 480 Vac
- Switch off technique Electronic
- UPC 786679243459
- Compliances RoHS Compliant
- Amperage Rating 100 A
- Circuit breaker frame type Complete breaker
- Special features ZSI / Modbus / Relays
- Voltage rating 600 Vac
- Trip Type PXR 20 LSI
- Product Weight 2.46 kg
- Rated operation voltage (Ue) at AC - max 600
- Communication Modbus RTU
- Warranty Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
- Interrupt rating range 35 kAIC Icu/ 22.5 kAIC Ics/ 73.5 kAIC Icm @480V Brazil (IEC) 10 kAIC Icu @250 Vdc 35 kAIC Icu/ 35 kAIC Ics/ 73.5 kAIC Icm @440V (IEC) 50 kAIC @480V (UL) 85 kAIC @240V (UL) 10 kAIC Icu @125 Vdc 30/25 kAIC Icu/ 15/13 kAIC Ics @525V South Africa (IEC)
- Terminals No Terminals
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
PDG24K0100E2WN Eaton
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
About the manufacturer
Powermatic Associates is an authorized Eaton distributor, proudly partnering with a global leader in power management solutions to bring our customers innovative and reliable products. Eaton is renowned for its comprehensive range of products and services designed to enhance electrical, hydraulic, and mechanical power efficiency, reliability, and safety. By incorporating Eaton's cutting-edge techn...
About the Product Category
An MCCB, or Molded Case Circuit Breaker, is an electrical safety device that automatically disconnects electrical power when it identifies an overload, short circuit, or ground fault. Its purpose is to safeguard an electrical circuit from harm due to excessive current caused by an overload or short circuit.
