SVX20024AAK1P1PE Eaton Industrial Automation Components

Name: SVX20024AAK1P1PE
Brand: Eaton

SVX20024AAK1P1PE on Powermatic Associates

Part#:SVX20024AAK1P1PE

Manufacturer:Eaton

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

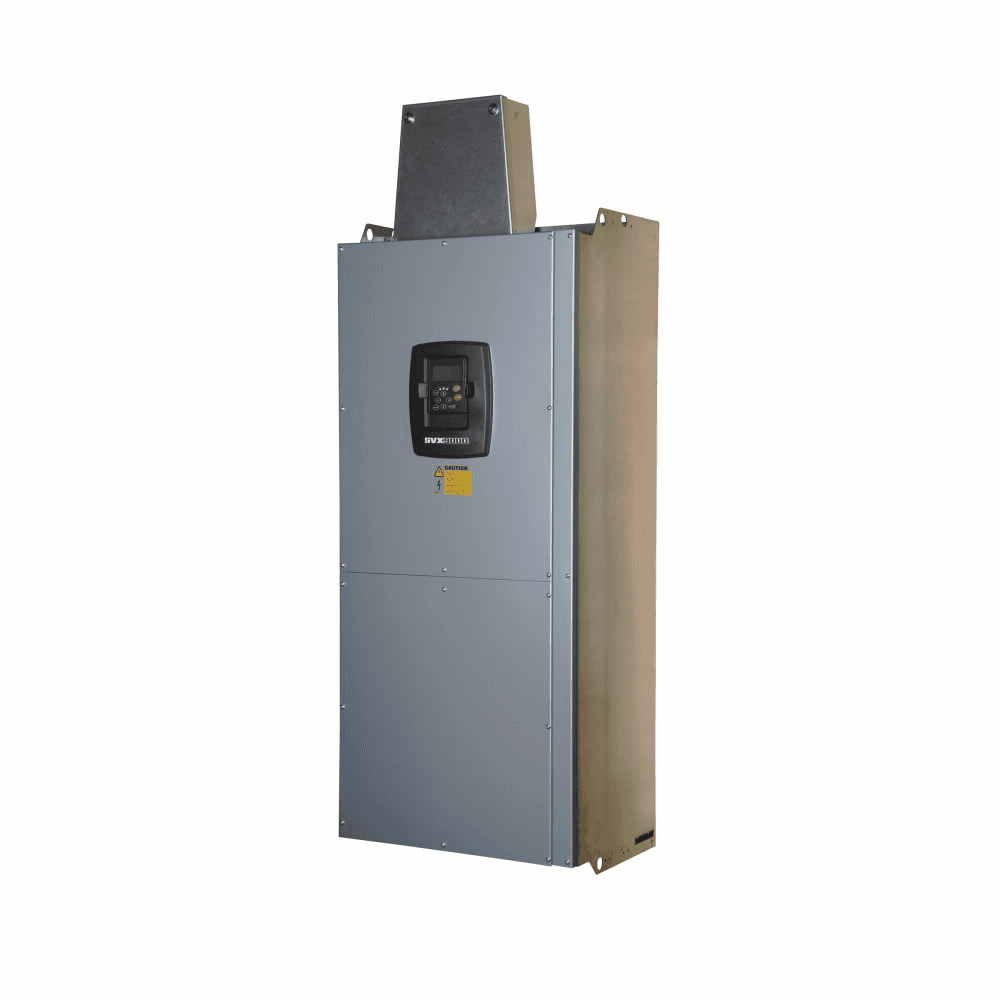

Eaton - SVX20024AAK1P1PE

Product Details

Weight
2500 pounds
Height
90 inches
Voltage
480 volts
Frame
9
Width
60 inches
Length
26.1 inches
Amperage
261 amperes
IP Rating
IP54
NEMA
12, 5
Horsepower
200 horse power

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
