1320838 Festo Grippers

1320838 on Powermatic Associates
Festo

Part#:1320838

Alt. Part#:DHEB-33-E-U-E-P

Manufacturer:Festo

Category:Grippers

Product Lifecycle:Active

Product description

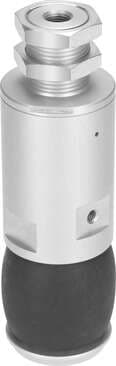

bellows gripper DHEB-33-E-U-E-P Size: 33, Stroke of the bellows: 14,5 mm, Min. diameter to be gripped: 34 mm, Max. diameter to be gripped: 45 mm, Assembly position: Any

Product Details

  • Stroke of bellows
    14.5 mm
  • Position sensing
    For proximity sensor
  • Min. opening time at 6 bar
    30 ms
  • Average replacement interval for the bellows
    0.5 MioCyc
  • Min. diameter to be gripped
    34 mm
  • Guide
    Basic guide
  • Max. diameter to be gripped
    45 mm
  • Design
    Contracting diaphragm Positively driven motion sequence
  • Ambient temperature
    5 °C ... 60 °C
  • Pneumatic connection
    M5
  • Size
    33
  • Type code
    DHEB
  • Mode of operation
    Single-acting Closed
  • Resetting pressure
    < 1 bar
  • Min. closing time at 6 bar
    60 ms
  • Product weight
    130 g
  • Bellows material
    EPDM
  • Mounting position
    Any
  • Operating pressure
    4 bar ... 8 bar
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Type of mounting
    Optionally: With lock nut
  • Housing material
    Aluminum Anodized
  • Max. operating frequency of pneumatic gripper
    ≤ 4 Hz
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Guide value for payload
    0.7 kg

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
