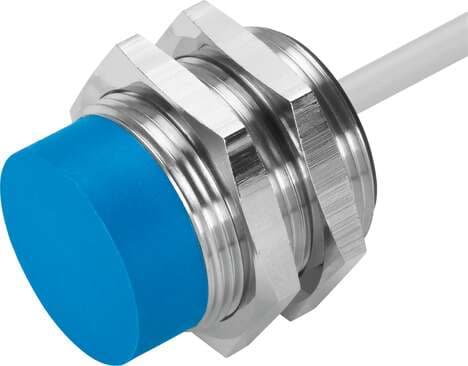

150442 Festo Proximity Sensors

Product Details

• Conforms to standard
  EN 60947-5-2
• Rated operating distance
  15 mm
• Switching element function
  N/O contact
• Short-circuit protection
  Pulsed
• Cable length
  2.5 m
• Tightening torque
  40 Nm
• Degree of protection
  IP67
• Symbol
  00991702
• Reduction factors
  Aluminum = 0.5 Steel St 37 = 1.0
• Assured operating distance
  12.15 mm
• DC operating voltage range
  11 V ... 30 V
• Reverse polarity protection
  for all electrical connections
• Size
  M30x1.5
• Mounting type
  Not flush
• Selection of additional sensor information
  With standard switching distance
• Certification
  RCM compliance mark c UL us - Listed (OL)
• Note on materials
  Free of copper and PTFE RoHS-compliant
• Repetition accuracy
  0.75 mm
• Max. output current
  200 mA
• Idle current
  ≤ 10 mA
Type of mounting
With lock nut
Ambient temperature with flexible cable installation
-5 °C ... 70 °C
Selection of sensor version
Standard
Type code
SIEN
CE marking (see declaration of conformity)
As per EU EMC directive
Switching output
PNP
Residual ripple
+/- 20 %
Electrical connection
3-pin Cable
Material of cable sheath
TPE-U(PUR)
Switching status indication
LED yellow
Surge resistance
0.8 kV
Electrical output
PNP
Ambient temperature
-25 °C ... 70 °C
Hysteresis
≤ 1.65 mm
Max. switching frequency
700 Hz
Voltage drop
≤ 2 V
Product weight
150 g
Housing material
Brass Chrome-plated
Contamination level
3
