153029 Festo Pneumatic Fittings
Part#:153029
Alt. Part#:QSF-3/8-10-B
Manufacturer:Festo
Category:Pneumatic Fittings
Product Lifecycle:Active
Product description
push-in fitting QSF-3/8-10-B female thread with external hexagon. Size: Standard, Nominal size: 9 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 10
Product Details
- Size Standard
- Maritime classification See certificate
- Mounting position Any
- Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Nominal width 9 mm
- Design Push-pull principle
- Product weight 38 g
- Material of tube retaining claw High-alloy stainless steel
- Type code QSF
- Operating pressure for entire temperature range -0.95 bar ... 6 bar
- Ambient temperature -10 °C ... 80 °C
- Type of seal on screwed trunnion Coating
- Temperature-dependent operating pressure -0.95 bar ... 14 bar
- Releasing ring color Blue
- Housing material Brass Nickel-plated
- Pack size 10
- Information on operating and pilot media Operation with oil lubrication possible
- Pneumatic connection 2 for pneumatic tubing outside diameter 10 mm
- Material of tubing seal NBR
- Note on materials RoHS-compliant
- Releasing ring material POM
- Pneumatic connection 1 Internal thread G3/8
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
153029 Related Documents
Similar products from: Festo Pneumatic Fittings
Manufacturer warranty
153029 Festo
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 153029 with other Pneumatic Fittings products
Size
Maritime classification
Mounting position
Operating medium
Corrosion resistance clas...
Nominal width
Design
Product weight
Material of tube retainin...
Type code
Selected product
153029
Festo
push-in fitting QSF-3/8-10-B female thread with external hexagon. Size: Standard, Nominal size: 9 mm...
SizeStandard
Maritime classificationSee certificate
Mounting positionAny
Operating mediumCompressed air as per ISO 85...
Corrosion resistance class (CRC)1 - Low corrosion stress
Nominal width9 mm
DesignPush-pull principle
Product weight38 g
Material of tube retaining clawHigh-alloy stainless steel
Type codeQSF

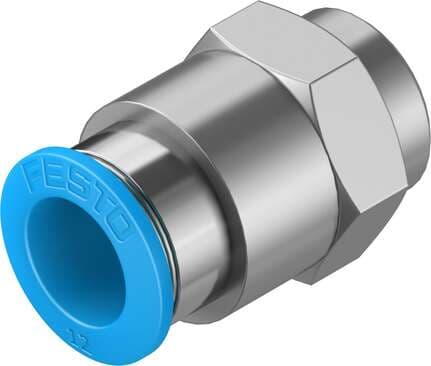

190651
