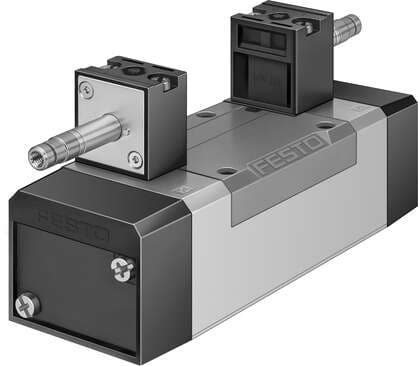

159685 Festo Directional Control Valves

Product Details

• Width
  42 mm
• Standard nominal flow rate
  1200 l/min
• Reset method
  Mechanical spring
• Sealing principle
  Soft
• Mounting position
  Any
• ISO code
  158
• Max. negative test pulse on 1 signal
  4600 µs
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Pilot medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Ambient temperature
  -5 °C ... 50 °C
• Pneumatic connection 5
  Sub-base, size 1 as per ISO 5599-1
• Housing material
  Die-cast aluminum
• Pneumatic working port
  Sub-base, size 1 as per ISO 5599-1 G1/4
• Design
  Piston gate valve
• Width dimension
  43 mm
• Conforms to standard
  ISO 5599-1
• Flow direction
  Non-reversible
• CE marking (see declaration of conformity)
  as per EU explosion protection directive (ATEX)
• Temperature of medium
  -5 °C ... 50 °C
• Electrical connection
  Via N1 coil, to be ordered separately
Pilot air port 14
Sub-base, size 1 as per ISO 5599-1
Pneumatic connection 2
Sub-base, size 1 as per ISO 5599-1
Lap
Overlap
Operating voltage
Via solenoid coil, to be ordered separately
Certification
c UL us - Recognized (OL)
Type code
MN1H
Manual override
Detenting via accessory Non-detenting
Switching time off
46 ms
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Coil characteristics
See solenoid coil, to be ordered separately
Noise level
85 dB(A)
Type of mounting
On sub-base With through-hole
Pneumatic connection 3
Sub-base, size 1 as per ISO 5599-1
Seals material
HNBR NBR
Valve function
5/3, pressurized
Actuation type
Electrical
Degree of protection
IP65
Exhaust air function
With flow control option
Type of control
Pilot-controlled
Symbol
00991083
Max. positive test pulse with 0 signal
3700 µs
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Product weight
650 g
Pilot air port 12
Sub-base, size 1 as per ISO 5599-1
Note on materials
RoHS-compliant
Maritime classification
See certificate
Operating pressure
3 bar ... 10 bar
Nominal width
8 mm
Pilot air supply port
Internal
On switching time
20 ms
Vibration resistance
Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
Pneumatic connection 1
Sub-base, size 1 as per ISO 5599-1
Pneumatic connection 4
Sub-base, size 1 as per ISO 5599-1
