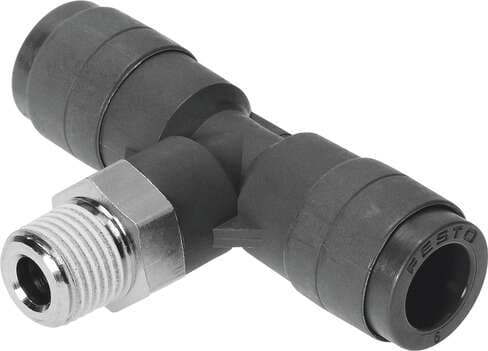

160531 Festo Pneumatic Fittings
Part#:160531
Alt. Part#:QST-V0-1/2-10
Manufacturer:Festo
Category:Pneumatic Fittings
Product Lifecycle:Active
Product description
push-in T-fitting QST-V0-1/2-10 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 8,3 mm, Material fire test: (* UL94 V-0 (housing), * UL94 V-0 (releasing ring)), Type of seal on screw-in stud: coating, Design structure: Pu
Product Details
- Size Standard
- Maritime classification See certificate
- Type of seal on screwed trunnion Coating
- Information on operating and pilot media Operation with oil lubrication possible
- Pneumatic connection 1 R1/2
- Note on materials RoHS-compliant
- Material of screwed trunnion Brass, nickel-plated
- Type code QST-V0
- Ambient temperature 0 °C ... 60 °C
- Housing material PBT-reinforced
- Material fire test UL94 V-0 (housing) UL94 V-0 (releasing ring)
- Operating pressure for entire temperature range -0.95 bar ... 10 bar
- Nominal width 8.3 mm
- Design Push-pull principle
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Pneumatic connection 2 for pneumatic tubing outside diameter 10 mm
- Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
- Product weight 68 g
- Releasing ring color Black
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
