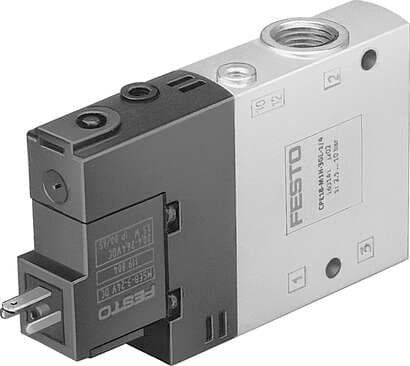

163145 Festo Directional Control Valves

Product Details

• Width
  18 mm
• Design
  Piston gate valve
• Type code
  CPE18
• Manual override
  Detenting via accessory Non-detenting
• Maritime classification
  See certificate
• Pneumatic working port
  G1/4
• Certification
  c UL us - Recognized (OL)
• Mounting position
  Any
• Symbol
  00991405
• Max. positive test pulse with 0 signal
  3300 µs
• Lap
  Overlap
• Operating voltage
  24V DC
• Nominal width
  8 mm
• Flow direction
  Non-reversible
• Switching time off
  18 ms
• Max. negative test pulse on 1 signal
  3100 µs
• Ambient temperature
  -5 °C ... 50 °C
• Pilot air port 12
  M5
• Seals material
  NBR
• Valve function
  3/2, closed, monostable
Standard nominal flow rate
1300 l/min
Reset method
Pneumatic spring
Type of control
Pilot-controlled
Pilot pressure
2.5 bar ... 10 bar
Duty cycle
100%
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pilot exhaust air port 82
M5
Note on materials
RoHS-compliant
Actuation type
Electrical
Operating pressure
-0.9 bar ... 10 bar
Degree of protection
IP65 as per IEC 60529
Sealing principle
Soft
Pilot air supply port
External
Coil characteristics
24 V DC: 1.5 W
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Electrical connection
Form C
Pneumatic connection 1
G1/4
Housing material
Die-cast aluminum
Valve position ID
Label holder
On switching time
28 ms
Permissible voltage fluctuations
-15 % / +10 %
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Product weight
150 g
Pneumatic connection 2
G¼
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Temperature of medium
-5 °C ... 50 °C
Type of mounting
With through-hole
Pneumatic connection 3
G1/4
