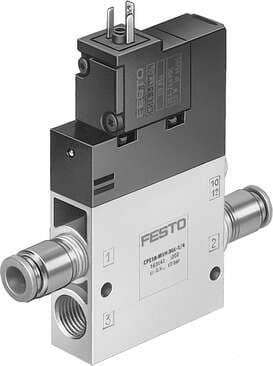

163768 Festo Directional Control Valves

Product Details

• Symbol
  00991656
• Duty cycle
  100%
• Flow direction
  Non-reversible
• Lap
  Overlap
• Standard nominal flow rate
  850 l/min
• Reset method
  Pneumatic spring
• Manual override
  Detenting via accessory Non-detenting
• Maritime classification
  See certificate
• Width
  18 mm
• Type code
  CPE18
• Actuation type
  Electrical
• Pneumatic working port
  QS-8
• Operating voltage
  110V AC
• Certification
  c UL us - Recognized (OL)
• Mounting position
  Any
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Pneumatic connection 1
  QS-8
• Valve function
  3/2, open, monostable
• Design
  Piston gate valve
• Nominal width
  8 mm
Type of control
Pilot-controlled
Switching time off
18 ms
Max. negative test pulse on 1 signal
3100 µs
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pilot air port 12
M5
Pneumatic connection 3
G1/4
Operating pressure
2.5 bar ... 10 bar
Degree of protection
IP65 as per IEC 60529
Sealing principle
Soft
Pilot air supply port
Internal
On switching time
28 ms
Max. positive test pulse with 0 signal
3300 µs
Permissible voltage fluctuations
-15 % / +10 %
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Ambient temperature
-5 °C ... 50 °C
Type of mounting
With through-hole
Note on materials
RoHS-compliant
Housing material
Die-cast aluminum
Valve position ID
Label holder
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Electrical connection
Form C
Pilot exhaust air port 82
M5
Pneumatic connection 2
QS-8
Coil characteristics
110 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
Temperature of medium
-5 °C ... 50 °C
Seals material
NBR
