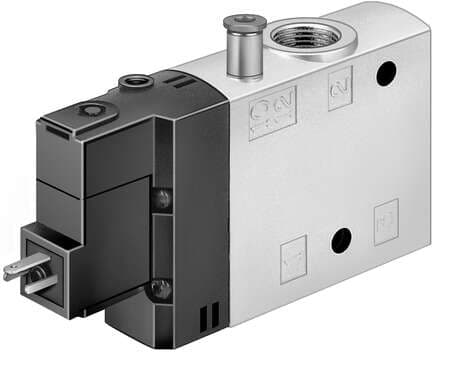

163813 Festo Directional Control Valves

Product Details

• Actuation type
  Electrical
• Valve function
  3/2, closed, monostable
• Width
  24 mm
• Degree of protection
  IP65 as per IEC 60529
• Sealing principle
  Soft
• Symbol
  00991405
• Max. positive test pulse with 0 signal
  3300 µs
• Vibration resistance
  Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
• Ambient temperature
  -5 °C ... 50 °C
• Electrical connection
  Form C
• Pneumatic connection 1
  G3/8
• Maritime classification
  See certificate
• Pneumatic working port
  G3/8
• Nominal width
  11 mm
• Flow direction
  Non-reversible
• Pilot pressure
  2.5 bar ... 10 bar
• Max. negative test pulse on 1 signal
  3100 µs
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Temperature of medium
  -5 °C ... 50 °C
• Type of mounting
  With through-hole
Pneumatic connection 3
G3/8
Operating voltage
110V AC
Certification
c UL us - Recognized (OL)
Mounting position
Any
Type of control
Pilot-controlled
Duty cycle
100%
On switching time
50 ms
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Product weight
220 g
Pneumatic connection 2
G3/8
Note on materials
RoHS-compliant
Lap
Overlap
Operating pressure
-0.9 bar ... 10 bar
Reset method
Pneumatic spring
Manual override
Detenting via accessory Non-detenting
Switching time off
33 ms
Permissible voltage fluctuations
-15 % / +10 %
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Pilot air port 12
M5
Housing material
Die-cast aluminum
Standard nominal flow rate
2500 l/min
Design
Piston gate valve
Type code
CPE24
Pilot air supply port
External
Valve position ID
Label holder
Coil characteristics
110 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pilot exhaust air port 82
M5
Seals material
NBR
