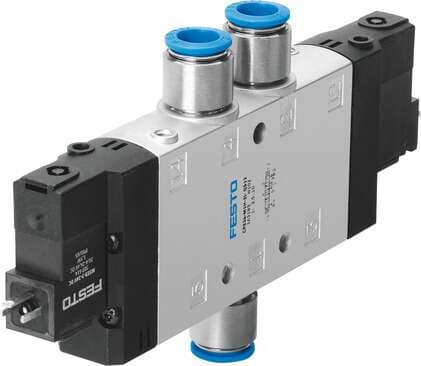

163843 Festo Directional Control Valves

Product Details

• Design
  Piston gate valve
• Actuation type
  Electrical
• Operating voltage
  230V AC
• Certification
  c UL us - Recognized (OL)
• Mounting position
  Any
• Symbol
  00991013
• Duty cycle
  100%
• Maritime classification
  See certificate
• Width
  24 mm
• Operating pressure
  2 bar ... 10 bar
• Type code
  CPE24
• Manual override
  Detenting via accessory Non-detenting
• Flow direction
  Non-reversible
• Changeover time
  25 ms
• Vibration resistance
  Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
• Ambient temperature
  -5 °C ... 50 °C
• Pilot air port 12
  M5
• Pneumatic connection 3
  G3/8
• Housing material
  Die-cast aluminum
• Lap
  Overlap
Pneumatic working port
QS-10
Degree of protection
IP65 as per IEC 60529
Sealing principle
Soft
Type of control
Pilot-controlled
Max. positive test pulse with 0 signal
3300 µs
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Type of mounting
With through-hole
Pilot exhaust air port 84
M5
Pneumatic connection 2
QS-10
Pneumatic connection 5
G3/8
Note on materials
RoHS-compliant
Valve function
5/2, bistable
Standard nominal flow rate
1250 l/min
Nominal width
11 mm
Pilot air supply port
Internal
Coil characteristics
230 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Electrical connection
Form C
Pilot air port 14
M5
Pneumatic connection 4
QS-10
Seals material
NBR
Exhaust air function
With flow control option
Valve position ID
Label holder
Max. negative test pulse on 1 signal
3100 µs
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Temperature of medium
-5 °C ... 50 °C
Pilot exhaust air port 82
M5
Pneumatic connection 1
QS-10
Permissible voltage fluctuations
-15 % / +10 %
