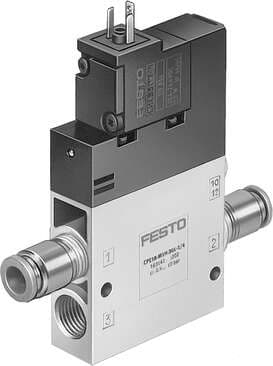

163848 Festo Directional Control Valves

Product Details

• On switching time
  50 ms
• Maritime classification
  See certificate
• Standard nominal flow rate
  1650 l/min
• Degree of protection
  IP65 as per IEC 60529
• Type of control
  Pilot-controlled
• Pilot air supply port
  Internal
• Lap
  Overlap
• Operating voltage
  230V AC
• Sealing principle
  Soft
• Type code
  CPE24
• Switching time off
  33 ms
• Permissible voltage fluctuations
  -15 % / +10 %
• Coil characteristics
  230 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
• Temperature of medium
  -5 °C ... 50 °C
• Type of mounting
  With through-hole
• Seals material
  NBR
• Width
  24 mm
• Design
  Piston gate valve
• Nominal width
  11 mm
• Flow direction
  Non-reversible
Max. positive test pulse with 0 signal
3300 µs
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Ambient temperature
-5 °C ... 50 °C
Pneumatic connection 1
QS-12
Housing material
Die-cast aluminum
Valve function
3/2, open, monostable
Actuation type
Electrical
Pneumatic working port
QS-12
Reset method
Pneumatic spring
Manual override
Detenting via accessory Non-detenting
Symbol
00991656
Duty cycle
100%
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Pneumatic connection 3
G3/8
Operating pressure
2.5 bar ... 10 bar
Certification
c UL us - Recognized (OL)
Mounting position
Any
Valve position ID
Label holder
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Electrical connection
Form C
Pilot air port 12
M5
Note on materials
RoHS-compliant
Max. negative test pulse on 1 signal
3100 µs
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Pilot exhaust air port 82
M5
Pneumatic connection 2
QS-12
