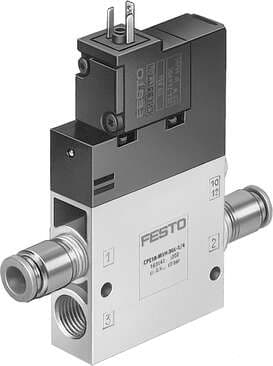

163849 Festo Directional Control Valves

Product Details

• Lap
  Overlap
• Pneumatic working port
  QS-12
• Operating pressure
  2.5 bar ... 10 bar
• Type code
  CPE24
• Flow direction
  Non-reversible
• On switching time
  50 ms
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Electrical connection
  Form C
• Pneumatic connection 1
  QS-12
• Pneumatic connection 3
  G3/8
• Sealing principle
  Soft
• Pilot air supply port
  Internal
• Switching time off
  33 ms
• Max. negative test pulse on 1 signal
  3100 µs
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Pneumatic connection 2
  QS-12
• Housing material
  Die-cast aluminum
• Width
  24 mm
• Operating voltage
  230V AC
• Certification
  c UL us - Recognized (OL)
Type of control
Pilot-controlled
Duty cycle
100%
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Temperature of medium
-5 °C ... 50 °C
Pilot air port 12
M5
Note on materials
RoHS-compliant
Valve function
3/2, closed, monostable
Standard nominal flow rate
1650 l/min
Design
Piston gate valve
Nominal width
11 mm
Mounting position
Any
Symbol
00991655
Coil characteristics
230 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Ambient temperature
-5 °C ... 50 °C
Maritime classification
See certificate
Actuation type
Electrical
Reset method
Pneumatic spring
Degree of protection
IP65 as per IEC 60529
Manual override
Detenting via accessory Non-detenting
Valve position ID
Label holder
Max. positive test pulse with 0 signal
3300 µs
Permissible voltage fluctuations
-15 % / +10 %
Type of mounting
With through-hole
Pilot exhaust air port 82
M5
Seals material
NBR
