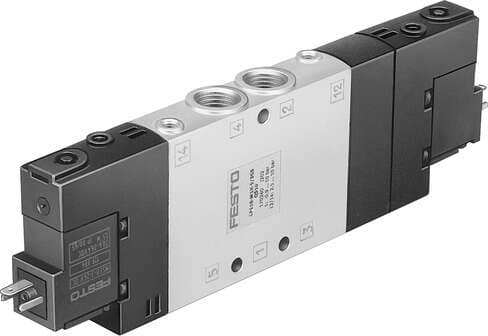

170249 Festo Directional Control Valves

Product Details

• Operating voltage
  24V DC
• Design
  Piston gate valve
• Valve function
  5/3, exhausted
• Maritime classification
  See certificate
• Degree of protection
  IP65 as per IEC 60529
• Mounting position
  Any
• Pilot air supply port
  Internal
• Coil characteristics
  24 V DC: 1.5 W
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Type of mounting
  With through-hole
• Pneumatic connection 3
  G1/4
• Housing material
  Die-cast aluminum
• Actuation type
  Electrical
• Width
  18 mm
• Exhaust air function
  With flow control option
• Manual override
  Detenting via accessory Non-detenting
• Symbol
  00991036
• Max. negative test pulse on 1 signal
  3100 µs
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Shock resistance
  Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Product weight
280 g
Pneumatic connection 2
G¼
Note on materials
RoHS-compliant
Lap
Overlap
Pneumatic working port
G1/4
Reset method
Mechanical spring
Nominal width
8 mm
Type of control
Pilot-controlled
Valve position ID
Label holder
Max. positive test pulse with 0 signal
3300 µs
Permissible voltage fluctuations
-15 % / +10 %
Ambient temperature
-5 °C ... 50 °C
Pilot air port 12
M5
Pilot air port 14
M5
Pneumatic connection 1
G1/4
Standard nominal flow rate
1200 l/min
Operating pressure
2.5 bar ... 10 bar
Type code
CPE18
Sealing principle
Soft
Switching time off
38 ms
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Temperature of medium
-5 °C ... 50 °C
Pilot exhaust air port 84
M5
Pneumatic connection 4
G1/4
Pneumatic connection 5
G1/4
Certification
c UL us - Recognized (OL)
Flow direction
Non-reversible
On switching time
20 ms
Duty cycle
100%
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Electrical connection
Form C
Pilot exhaust air port 82
M5
Seals material
NBR
