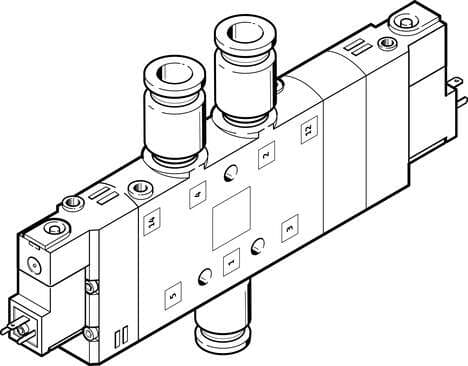

170281 Festo Directional Control Valves

Product Details

• Lap
  Overlap
• Standard nominal flow rate
  1600 l/min
• Operating pressure
  2.5 bar ... 10 bar
• Degree of protection
  IP65 as per IEC 60529
• Type code
  CPE24
• Manual override
  Detenting via accessory Non-detenting
• Symbol
  00991034
• Duty cycle
  100%
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Valve function
  5/3, pressurized
• Actuation type
  Electrical
• Pneumatic working port
  QS-12
• Exhaust air function
  With flow control option
• Type of control
  Pilot-controlled
• Switching time off
  55 ms
• Permissible voltage fluctuations
  -15 % / +10 %
• Max. negative test pulse on 1 signal
  3100 µs
• Pilot exhaust air port 84
  M5
• Pneumatic connection 4
  QS-12
• Design
  Piston gate valve
Certification
c UL us - Recognized (OL)
Mounting position
Any
Valve position ID
Label holder
Max. positive test pulse with 0 signal
3300 µs
Coil characteristics
24 V DC: 1.5 W
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Type of mounting
With through-hole
Pneumatic connection 2
QS-12
Housing material
Die-cast aluminum
Maritime classification
See certificate
Reset method
Mechanical spring
Sealing principle
Soft
Pilot air supply port
Internal
On switching time
25 ms
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Electrical connection
Form C
Pilot air port 12
M5
Note on materials
RoHS-compliant
Width
24 mm
Operating voltage
24V DC
Nominal width
11 mm
Flow direction
Non-reversible
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Temperature of medium
-5 °C ... 50 °C
Pilot exhaust air port 82
M5
Pilot air port 14
M5
Pneumatic connection 5
G3/8
Seals material
NBR
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Ambient temperature
-5 °C ... 50 °C
Pneumatic connection 1
QS-12
Pneumatic connection 3
G3/8
