170686 Festo Compressed Air Preparation Units

170686 on Powermatic Associates
Festo

Part#:170686

Alt. Part#:FRM-D-MAXI

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

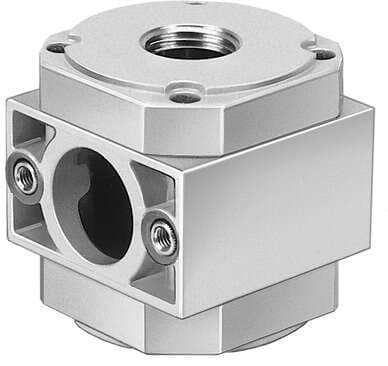

branching module FRM-D-MAXI Pneumatic manifold with 4 connections, attachment facility for auxiliary modules, without threaded connection plates with FRB threaded pin. Assembly position: Any, Design structure: Branching module, Operating pressure: 0 - 16

Product Details

  • Operating pressure
    0 bar ... 16 bar
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [7:-:-] Inert gas
  • Pneumatic connection 4
    G1/4
  • Type code
    FRM
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Product weight
    442 g
  • Design
    Branching module
  • Storage temperature
    -10 °C ... 60 °C
  • Temperature of medium
    -10 °C ... 60 °C
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Maritime classification
    See certificate
  • Symbol
    00991510
  • Standard nominal flow rate in main flow direction 1 -> 2
    20000 l/min
  • Housing material
    Die-cast zinc
  • Mounting position
    Any
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-] Inert gas
  • Ambient temperature
    -10 °C ... 60 °C
  • Pneumatic connection 3
    G3/4

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
