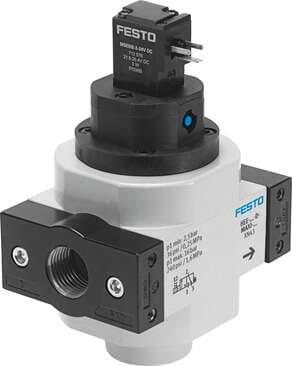

172961 Festo Compressed Air Preparation Units
Part#:172961
Alt. Part#:HEE-D-MIDI-230
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description
on-off valve HEE-D-MIDI-230 For service units, without threaded connection plates with FRB threaded pin Design structure: Piston slide, Type of actuation: electrical, Sealing principle: soft, Exhaust-air function: not throttleable, Manual override: detent
Product Details
- Type code HEE
- Manual override Detenting
- Operating pressure 2.5 bar ... 16 bar
- Actuation type Electrical
- Reset method Mechanical spring
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Temperature of medium -10 °C ... 60 °C
- Sealing principle Soft
- Symbol 00991008
- Permissible voltage fluctuations -14 % / +10 %
- Note on materials RoHS-compliant
- Flow direction Non-reversible
- Air quality class at the output Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Exhaust air function Without flow control option
- Valve function 3/2, closed, monostable
- Duty cycle 100%
- CE marking (see declaration of conformity) As per EU low voltage directive
- Pneumatic connection 3 G1/4
- Housing material Die-cast aluminum
- Design Piston gate valve
- Type of control Pilot-controlled
- Coil characteristics 230 V AC: 50/60 Hz, initial power 5.0 VA, holding power 3.7 VA
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Mounting position Any
- Signal status display With accessories
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Ambient temperature -10 °C ... 60 °C
- Product weight 500 g
- Type of mounting Line installation With accessories
- Electrical connection Form C as per DIN EN 175301-803
- Seals material NBR
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
172961 Related Documents
Similar products from: Festo Compressed Air Preparation Units
Manufacturer warranty
172961 Festo
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 172961 with other Compressed Air Preparation Units products
Type code
Manual override
Operating pressure
Actuation type
Reset method
Information on operating ...
Temperature of medium
Sealing principle
Symbol
Permissible voltage fluct...
Selected product
172961
Festo
on-off valve HEE-D-MIDI-230 For service units, without threaded connection plates with FRB threaded ...
Type codeHEE
Manual overrideDetenting
Operating pressure2.5 bar ... 16 bar
Actuation typeElectrical
Reset methodMechanical spring
Information on operating and pilot mediaOperation with oil lubricati...
Temperature of medium-10 °C ... 60 °C
Sealing principleSoft
Symbol00991008
Permissible voltage fluctuations-14 % / +10 %
542578
Festo
on-off valve MS4-EE-1/4-10V24 Electrical, direction of flow: from left to right. Design structure: P...
Type codeMS4-EE
Manual overrideNon-detenting
Operating pressure4 bar ... 10 bar
Actuation typeElectrical
Reset methodMechanical spring
Information on operating and pilot media-
Temperature of medium-
Sealing principle-
Symbol00991008
Permissible voltage fluctuations-
541282
Festo
on-off valve MS4N-EM1-1/4-S-Z Manual, with silencer, direction of flow: from right to left. Design s...
Type codeMS4N-EM1
Manual override-
Operating pressure0 bar ... 14 bar
Actuation typeManual
Reset method-
Information on operating and pilot media-
Temperature of medium-
Sealing principle-
Symbol00991670
Permissible voltage fluctuations-
About the manufacturer
Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...
About the Product Category
Also referred to as an FRL unit (Filter, Regulator, Lubricator), an air preparation unit is utilized to treat compressed air. It accomplishes this by eliminating impurities, managing pressure, and adding specific quantities of oil for lubrication.
